OS1205
Switch 5x100Base-TX, metal casing
- 5 x 10/100 Mbps (RJ-45) ports with auto speed negotiation
- Auto MDI/MDIX adjustment
- Energy Saving function
- Noise-free operation
- Durable metal casing
- Compact desktop design
- No configuration required
Description

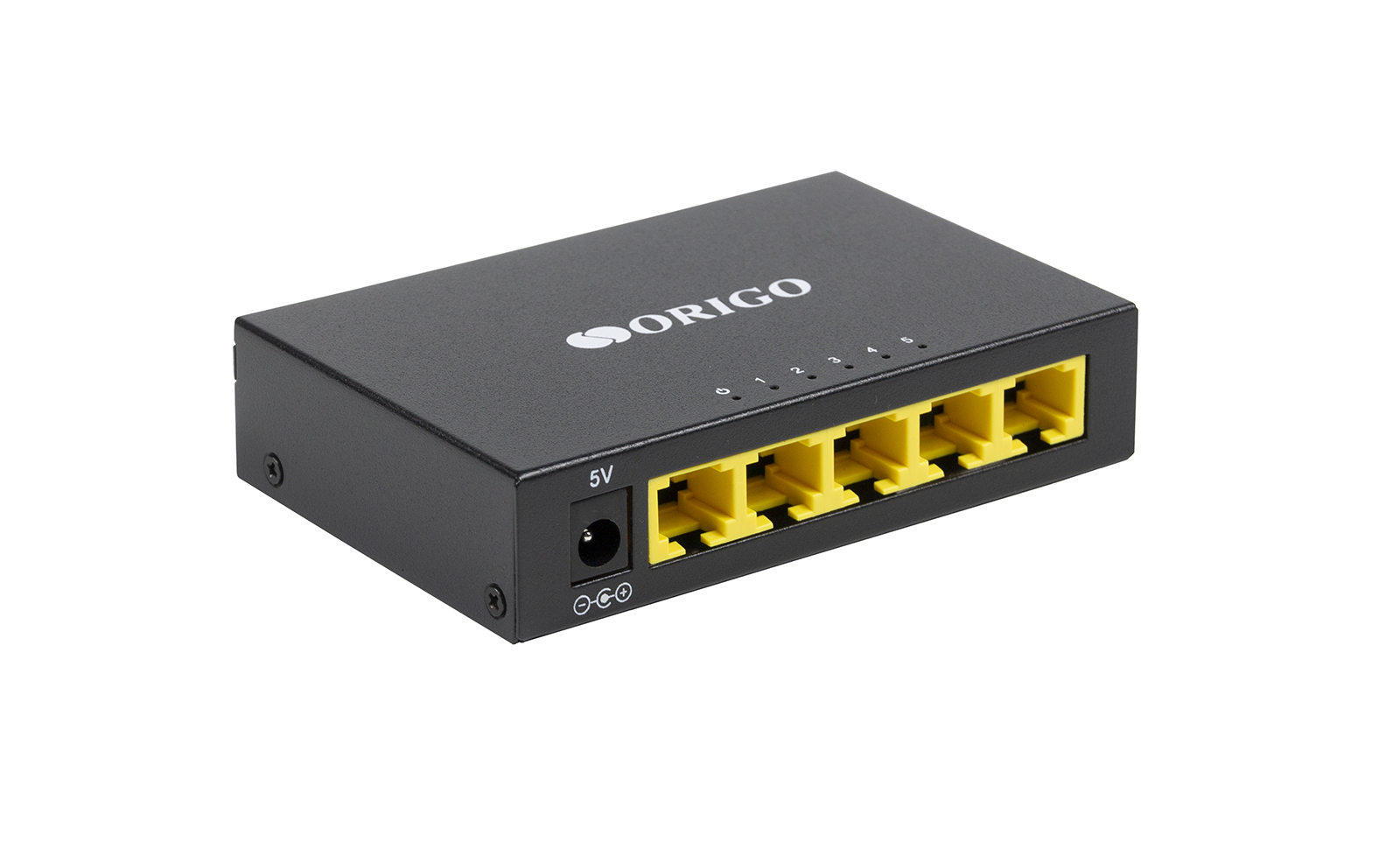

OS1205 is a switch with 5 x 10/100 Mbps ports in metal casing for desktop installation.
The ORIGO OS1205 switch is a simple and reliable solution for extending home wired network and connecting small workgroups on enterprises, in offices, educational and medical facilities.
The OS1205 switch is designed in a durable metal casing, provides noise-free operation and requires no configuration. When connecting client devices, the switch selects maximum possible connection speed automatically and activates duplex mode.
Auto MDI/MDIX adjustment allows the switch to adapt to any type of Ethernet cable – straight-through or crossover.
Specification
|
Hardware
|
|
|
Chipset
|
• IP175G
|
|

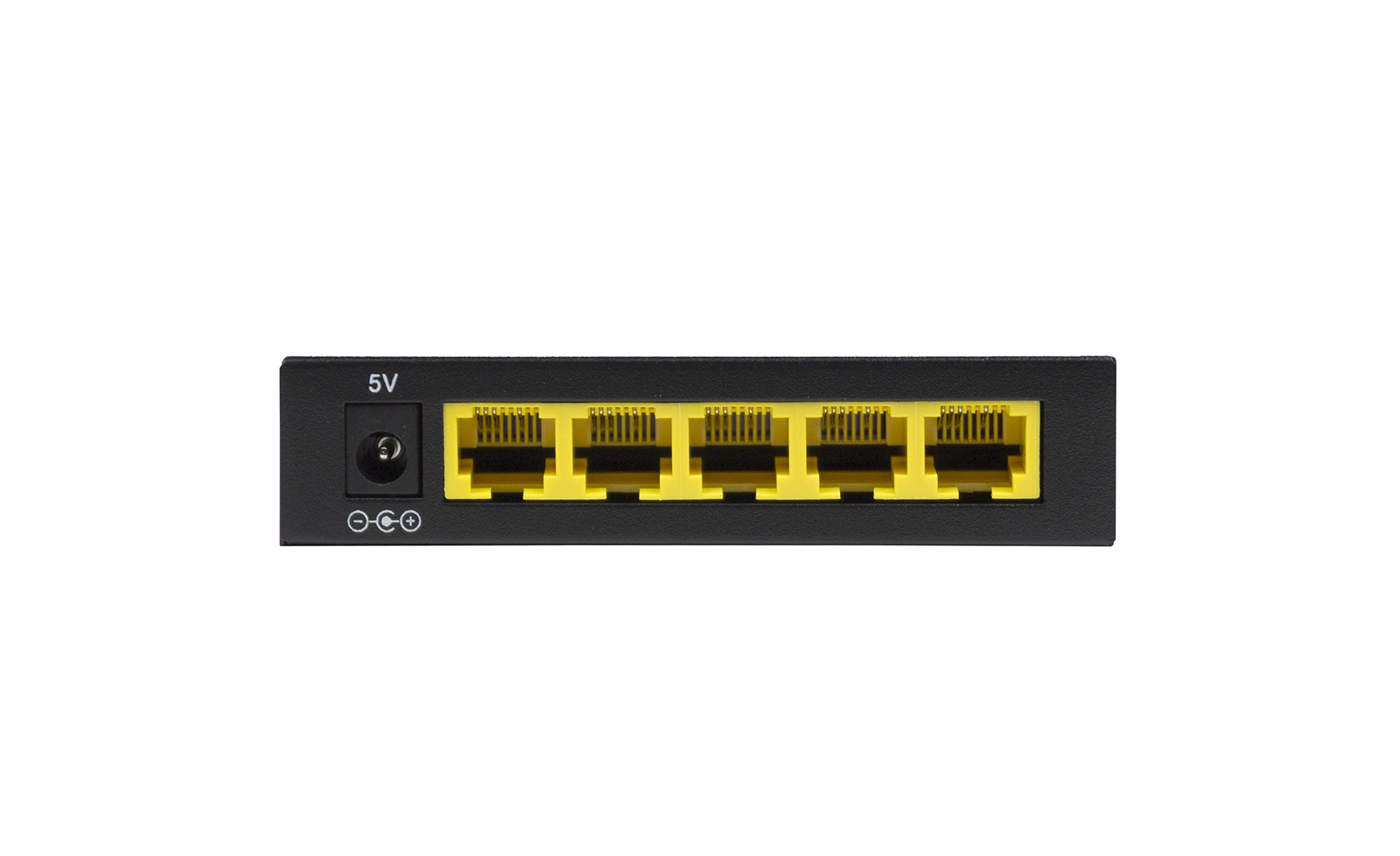

Interfaces
|
• 5 x 10/100Base-TX (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Automatic negotiation of speed and duplex mode
• Auto MDI/MDIX adjustment
|
|
Data Rate
|
• Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
• Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
|
|

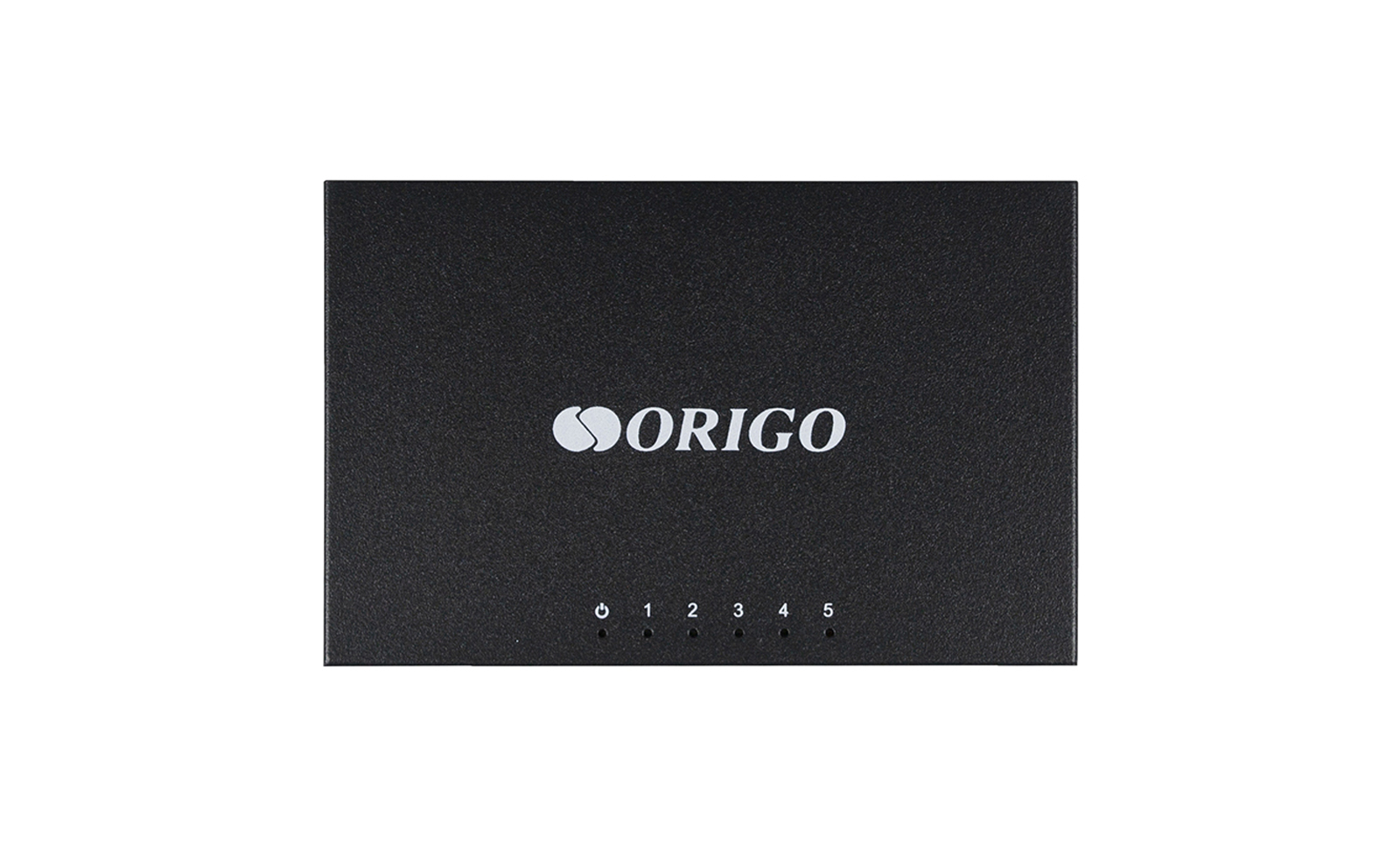

LEDs
|
• Power
- On – Power on state
- Off – Power off state
• Link/Act (ports 1 – 5)
- Always bright – Terminal device connected
- Blinking – Data pass
- Off – No connection
|
|
Ventilation System
|
• Fanless
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
|
|
Performance
|
|
|
Switching Capacity
|
• 1 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 1K entries
|
|
Packet Forwarding Rate
|
• 744 Kpps
|
|
Packet Buffer
|
• 56 KB
|
|
Jumbo Frame
|
• 1532 bytes
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 100 x 65 x 23 mm
|
|
Weight
|
• 120 g
|
|
Package Dimensions
|
• 11 х 7.9 х 6.2 cm
|
|
Gross Weight
|
• 0.22 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• Power adapter:
- Input: 100-240 V AC, 50/60 Hz
- Output: 5 V DC, 0.55 A
|
|
Power Consumption
|
• 1.3 W
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

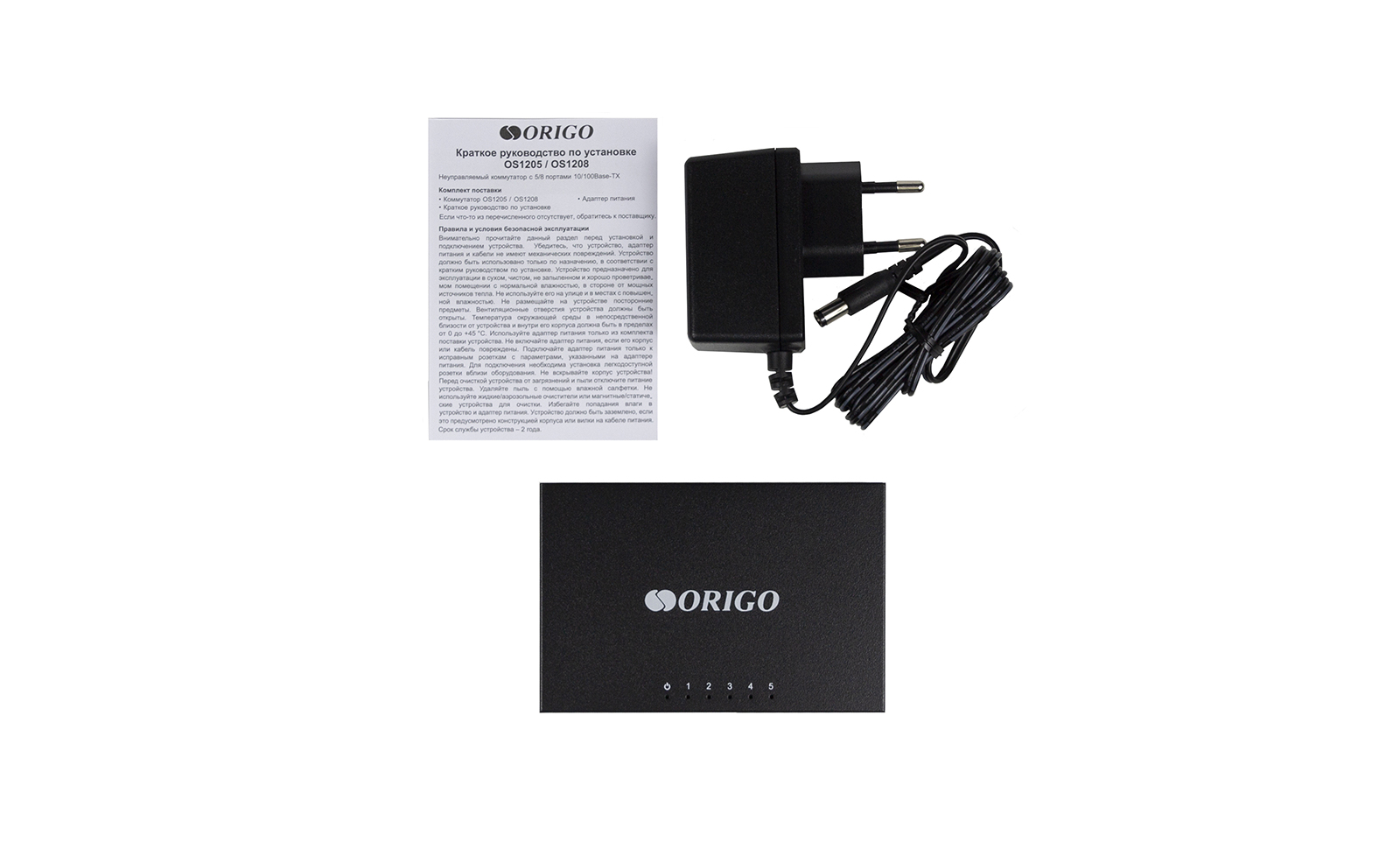

Package Contents
|
|
|
Package Contents
|
• OS1205 Switch
• Power Adapter
• Quick Installation Guide
|
