OS2224
Configurable Switch
24x1000Base-T, DIP Switch
- 24 x 10/100/1000Base-T (RJ-45) ports with auto speed negotiation
- DIP switch for activating the operating modes
- Standard mode with Loop Detection / Loop Prevention support
- VLAN mode for isolating traffic between ports
- Network Cloning mode for disabling IEEE 802.3x flow control
- Configuring the operating modes with the DIP switch
- 802.1p QoS and IGMP Snooping support
- 802.3az Energy-Efficient Ethernet
- 19” rack mounting
Description

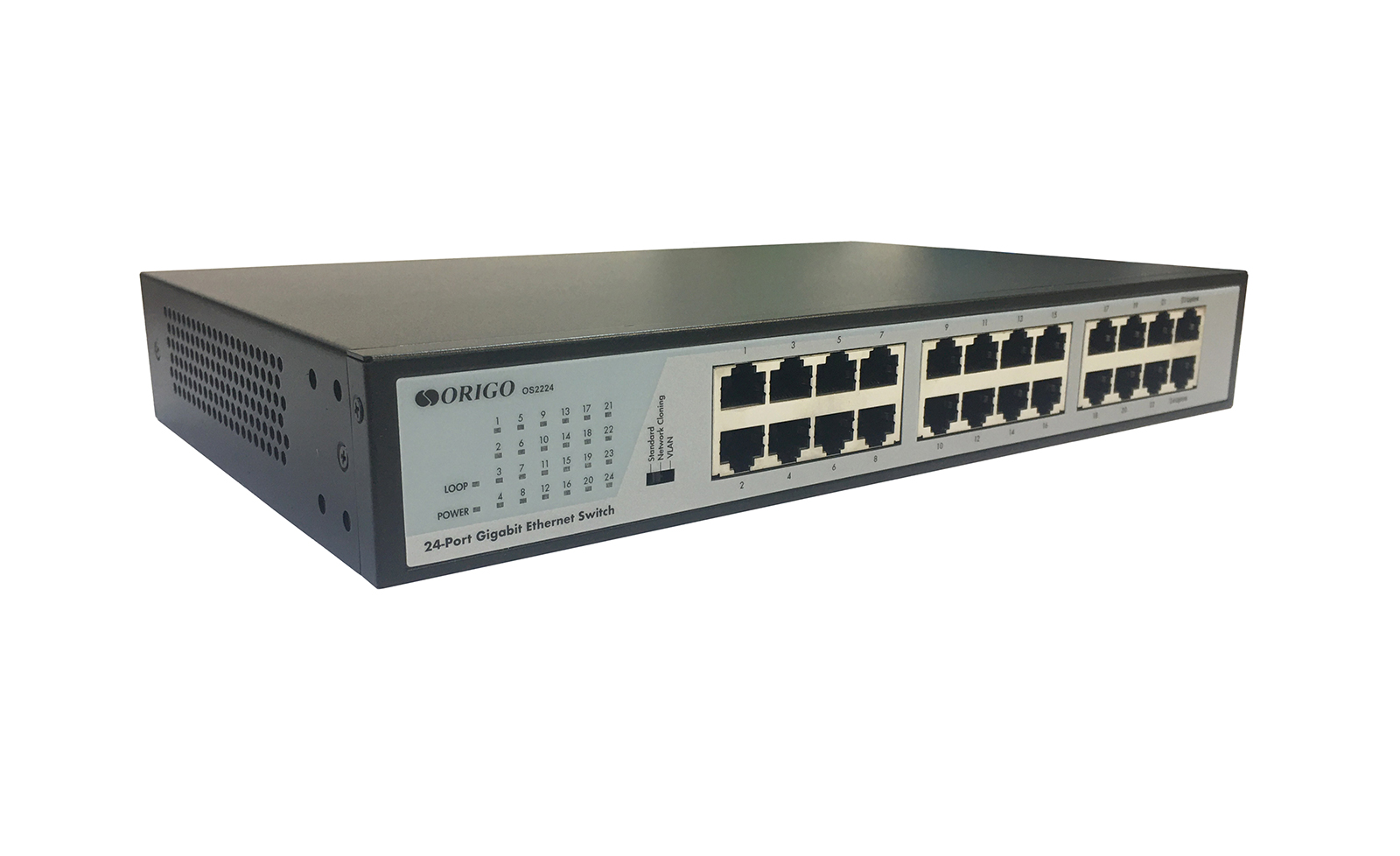

OS2224 is a configurable switch with 24 x 10/100/1000Base-T ports.
The ORIGO OS2224 switch is a modern gigabit solution for connecting workgroups on enterprises, in offices, classrooms and medical facilities.
The OS2224 switch supports enhanced functions for configurable switch such as traffic control, ensuring network protection and smooth operation. All the functions can be activated with the DIP switch on the casing.
The Loop Detection / Loop Prevention support allows to monitor loops on ports and prevent switch overload.
VLAN Mode allows to provide traffic segmentation for connected devices and ensure security of transmitted data.
In Network Cloning Mode, traffic can be transmitted between all ports of the switch, while IEEE 802.3x Flow Control is disabled.
The modes are configured in hardware with the DIP switch.
The OS2224 switch also supports 802.1p QoS for priority transmission of time sensitive traffic, broadcast storm control and IGMP Snooping for improved operation with multicast applications.
Specification
|
Hardware
|
|
|
Chipset
|
• EN8853D
|
|
Interfaces
|
• 24 x 10/100/1000Base-T (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.1p (QoS)
• IGMP Snooping
• Auto MDI/MDIX adjustment
|
|
DIP Switch Operating Modes
|
• Standard
- Transmitting traffic between all ports
- Loop Detection/ Loop Prevention
- IEEE 802.3x Flow Control
- Broadcast Storm Control
- IGMP
- Energy Saving function (EEE)
• Network Cloning
- IEEE 802.3x Flow Control is disabled on all ports
- Broadcast Storm Control
- IGMP
- Energy Saving function (EEE)
• VLAN
- Traffic isolation for ports 1-22
- IEEE 802.3x Flow Control
- Broadcast Storm Control
- IGMP
- Energy Saving function (EEE)
|
|

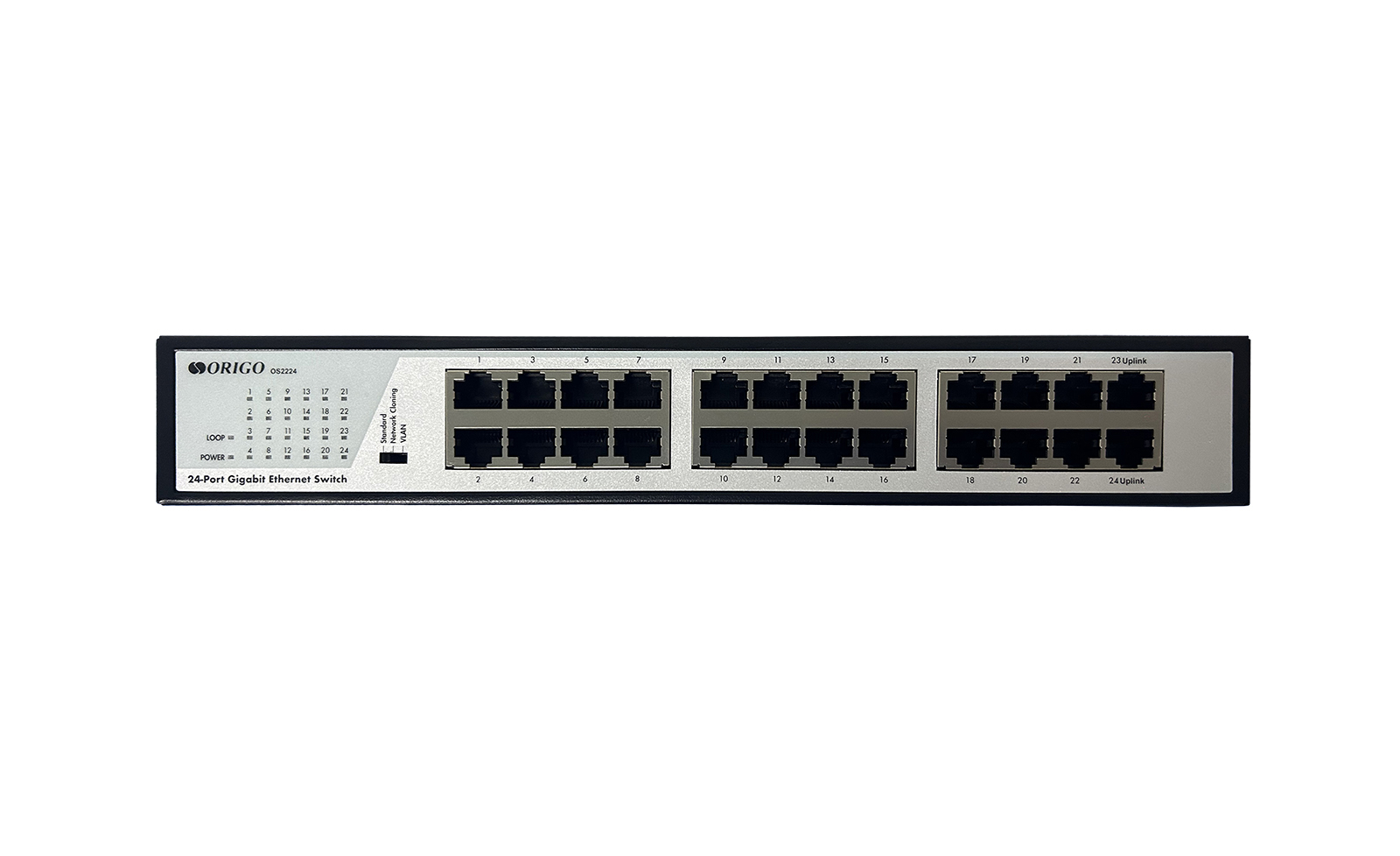

LEDs
|
• Power
- Always bright red - Power on state
- Off – Power off state
• Link/Act (ports 1 – 24)
- Always bright green – Terminal device is connected
- Blinking green - Data pass
- Off – No connection
• Loop
- Blinking green - Loop is detected in the network
- Off - Proper network operation
|
|
Power
|

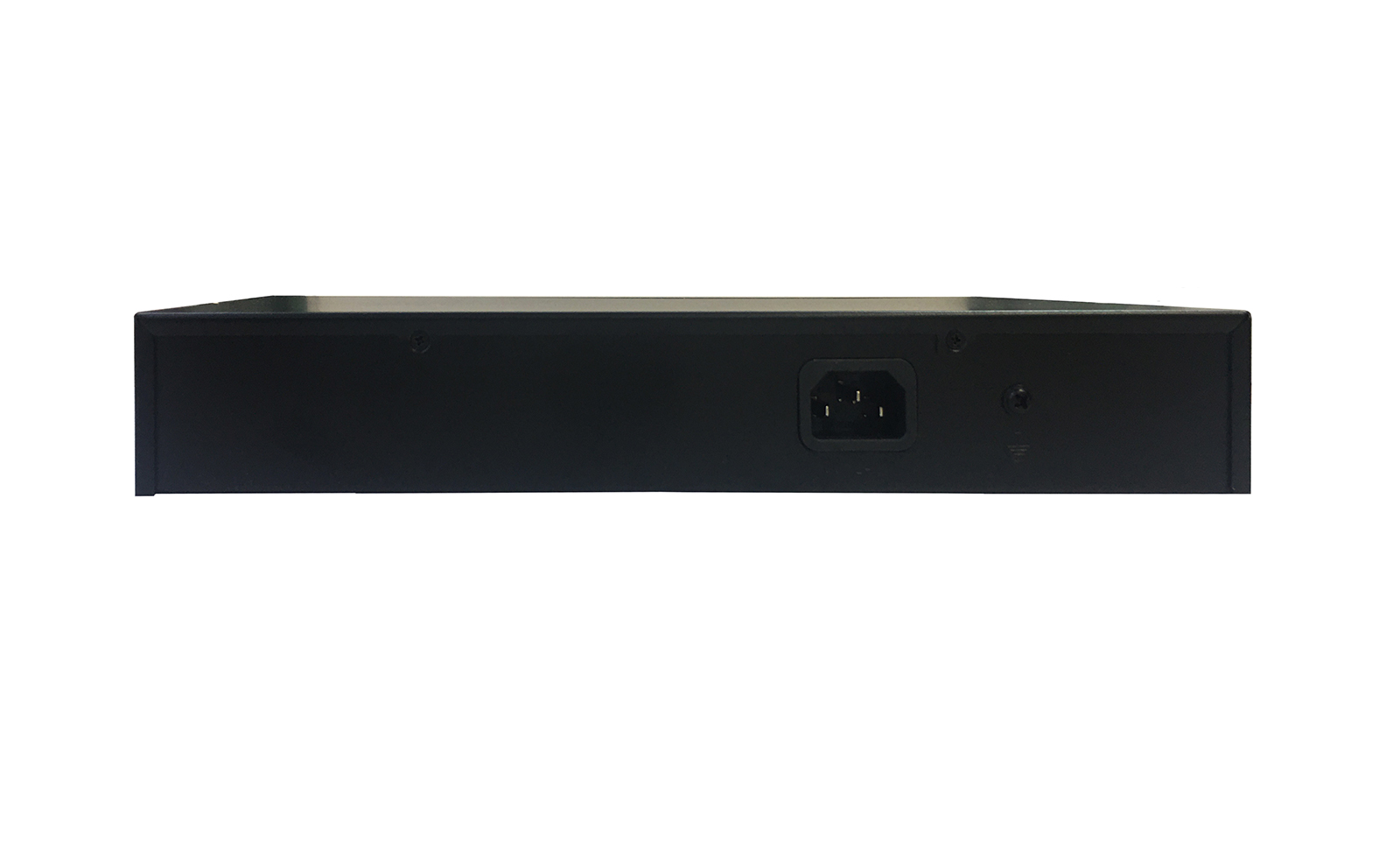

• Power connector (AC)
|
|
Ventilation System
|
• Fanless
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
• 19” rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 48 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 8K entries
|
|
Packet Forwarding Rate
|
• 35.7 Mpps
|
|
Packet Buffer
|
• 512 KB
|
|
Jumbo Frame
|
• 15 KB
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 290 x 185 x 44.5 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240 V AC, 50/60 Hz
|
|
Power Consumption
|
• 10.929 W
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OS2224 Switch
• Power Cord
• 19” Rack-Mount Kit
• Rubber Feet
• Quick Installation Guide
|
