OS2208
Switch 8x1000Base-T, metal casing
- 8 x 10/100/1000 Mbps (RJ-45) ports with auto speed negotiation
- Auto MDI/MDIX adjustment
- IEEE 802.3x Flow Control
- Energy Saving function
- Noise-free operation
- Durable metal casing
- Compact desktop design
- No configuration required
Description

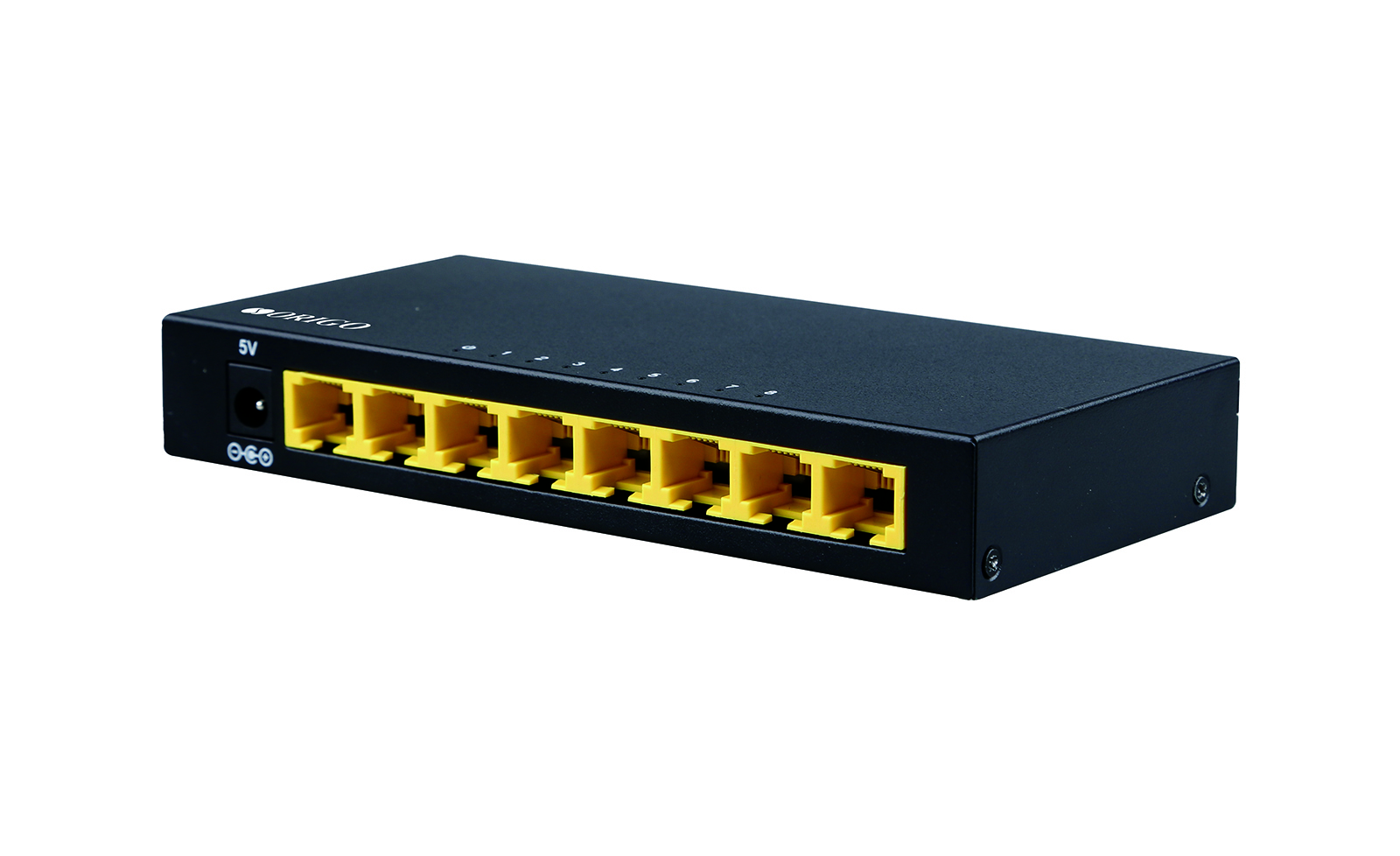

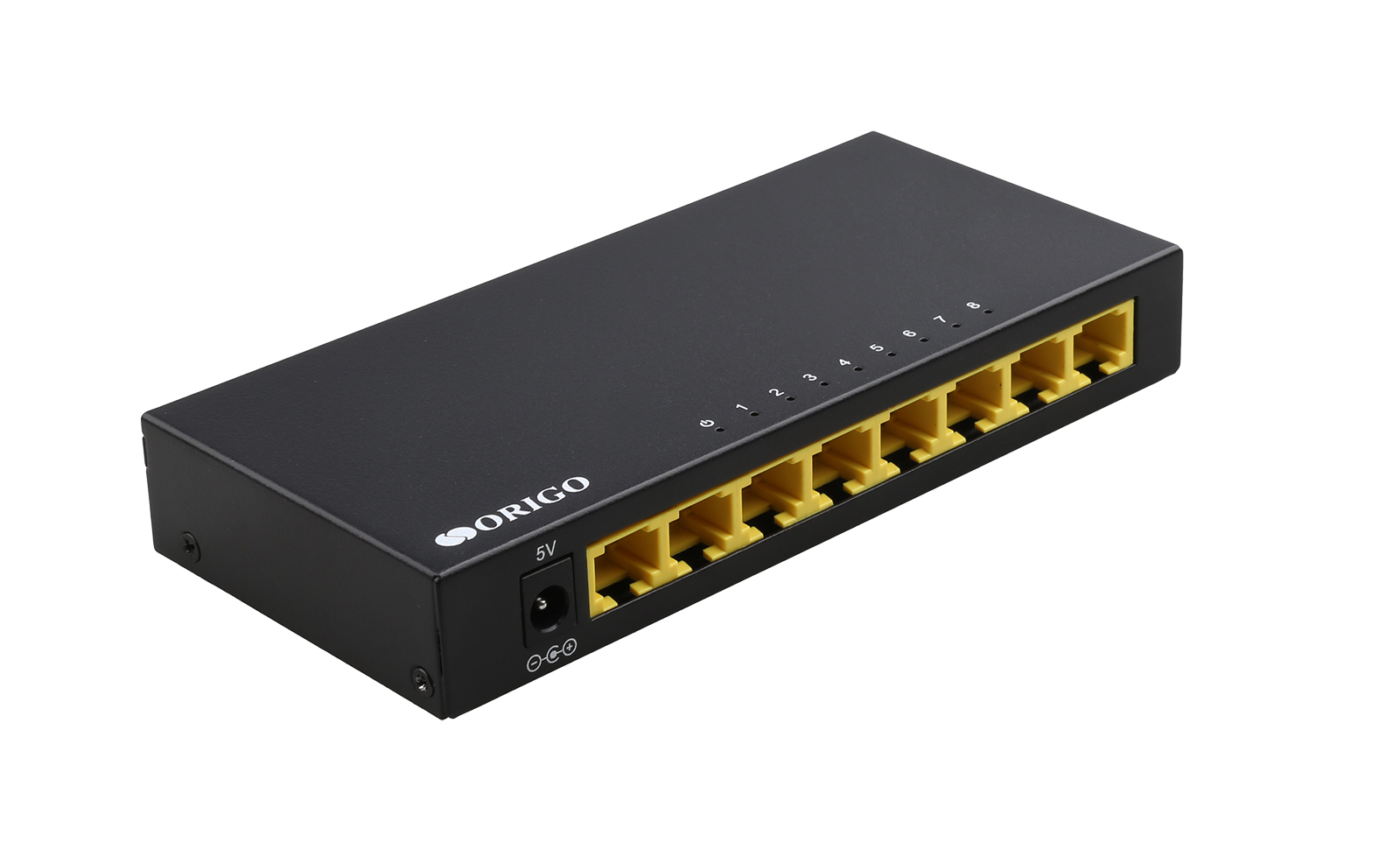

OS2208 is a gigabit switch with 8 x 10/100/1000Base-T ports in metal casing for desktop installation.
The ORIGO OS2208 switch is an affordable gigabit solution for extending home wired network and connecting small workgroups on enterprises, in offices, classrooms and medical facilities.
The OS2208 switch is designed in a durable metal casing, provides noise-free operation and requires no configuration. When connecting client devices, the switch selects maximum possible connection speed automatically – 10, 100 or 1000 Mbps – and activates duplex mode. Auto MDI/MDIX adjustment allows the switch to adapt to any type of Ethernet cable – straight-through or crossover.
Specification
|
Hardware
|
|
|
Chipset
|
• EN8851FU
|
|
Interfaces
|

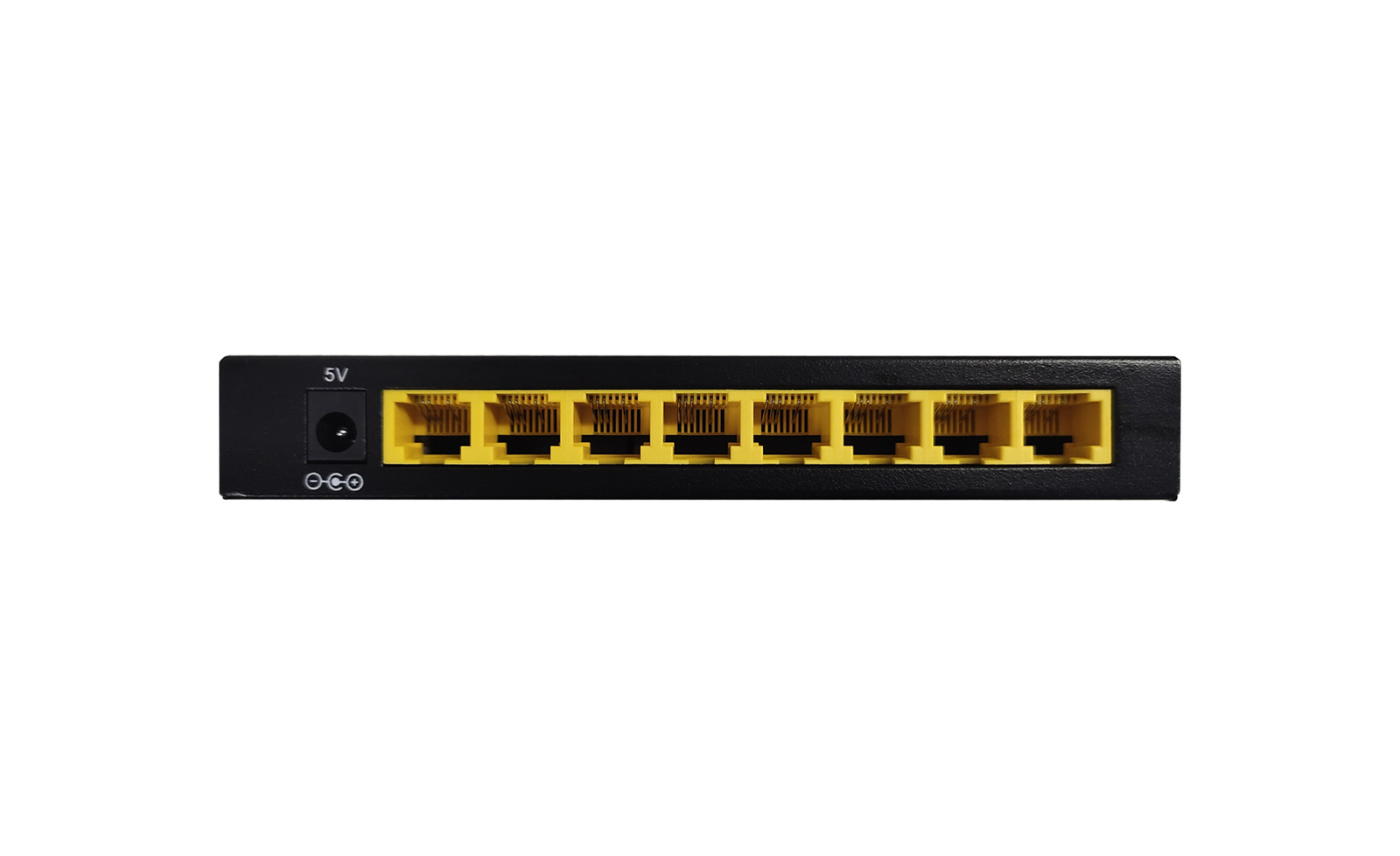

• 8 x 10/100/1000Base-T (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Automatic negotiation of speed and duplex mode
• Auto MDI/MDIX adjustment
|
|
Data Rate
|
• Gigabit Ethernet:
2000 Mbps (full duplex)
• Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
• Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
|
|

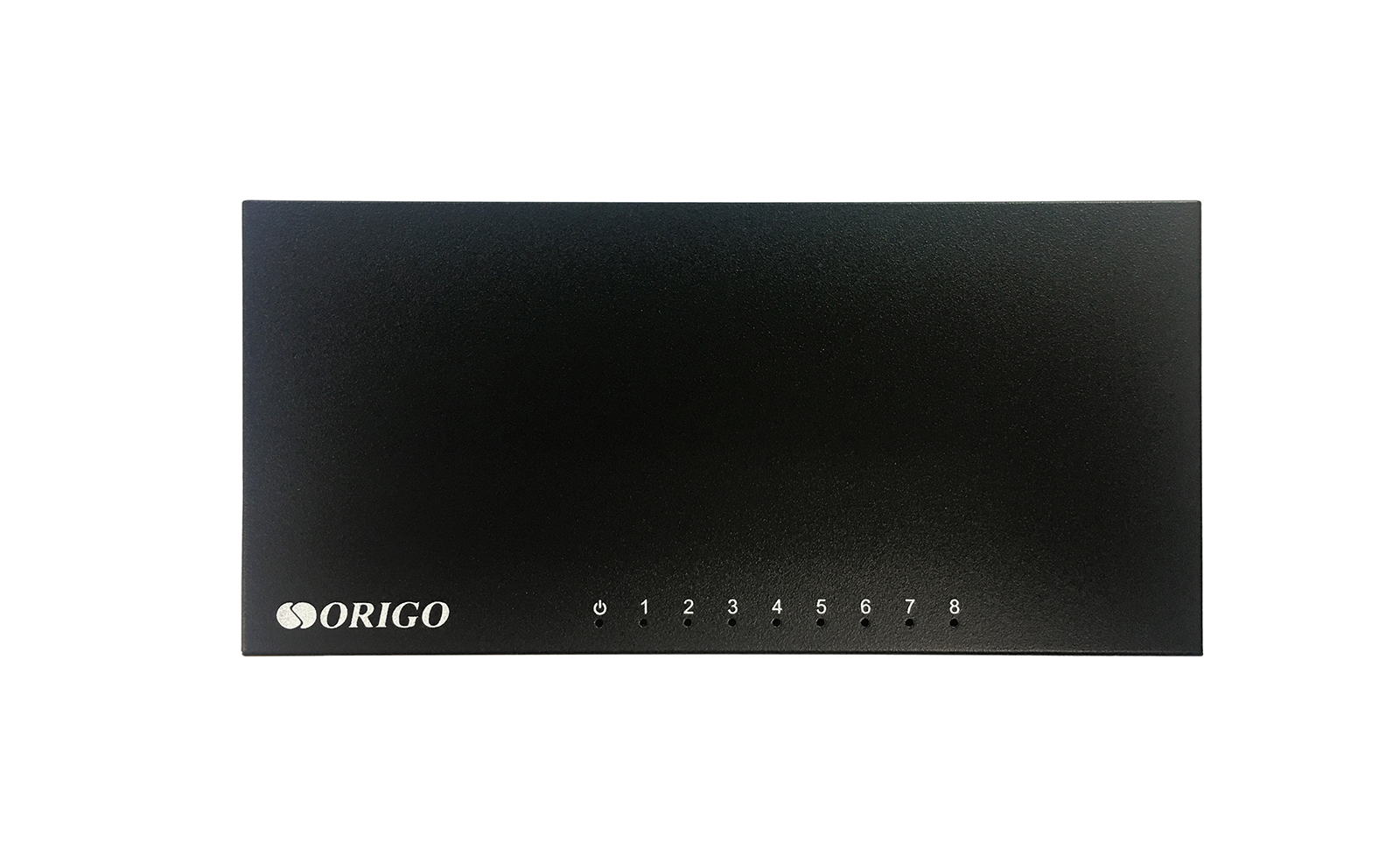

LEDs
|
• Power
- On – Power on state
- Off – Power off state
• Link/Act (ports 1 – 8)
- Always bright – Terminal device connected
- Blinking – Data pass
- Off – No connection
|
|
Ventilation System
|
• Fanless
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Metal
|
|
Mounting
|
• Desktop
|
|
Performance
|
|
|
Switching Capacity
|
• 16 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 8K entries
|
|
Packet Forwarding Rate
|
• 11.9 Mpps
|
|
Jumbo Frame
|
• 15 KB
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 150 x 70 x 23 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• Power adapter:
- Input: 100-240 V AC, 50/60 Hz
- Output: 5 V DC, 1 A
|
|
Power Consumption
|
• Max.: 5 W
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|
Package Contents
|
|
|

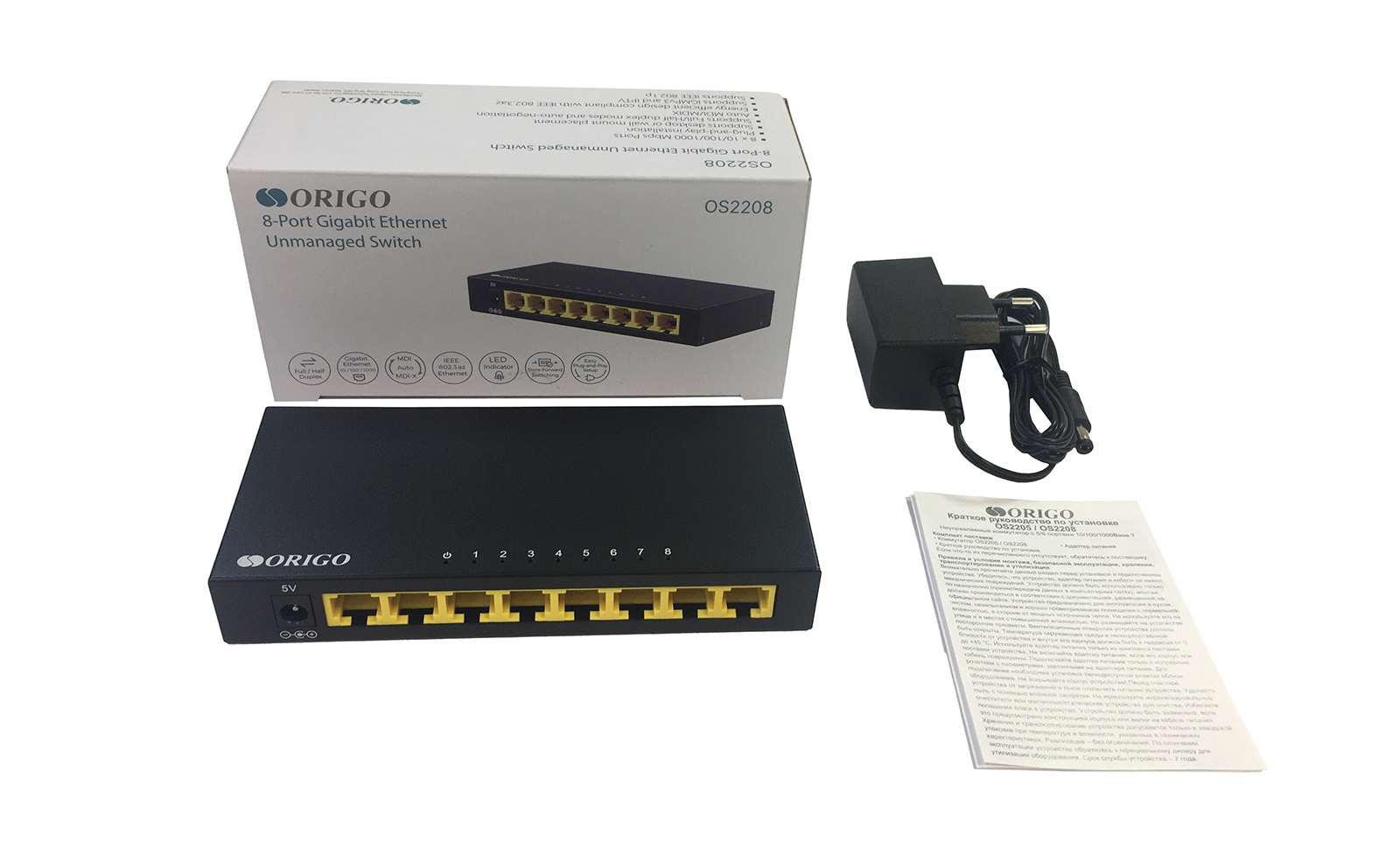

Package Contents
|
• OS2208 Switch
• Power Adapter
• Quick Installation Guide
|
