OI75WPSU
Industrial Power Supply
75 W, DIN Rail, 48 V DC Output
- Output Power: 75 W
- Output Voltage: 48 V DC
- Universal 90–264V AC or 120–370V DC input voltage
- Operating Temperature: -30 to 70 °C
- DIN-Rail Mountable
- Recommended for ORIGO switches: OI2210, OI2206P/60W, OI3106, OI3106P/60W, OI3112, OI3120
Description

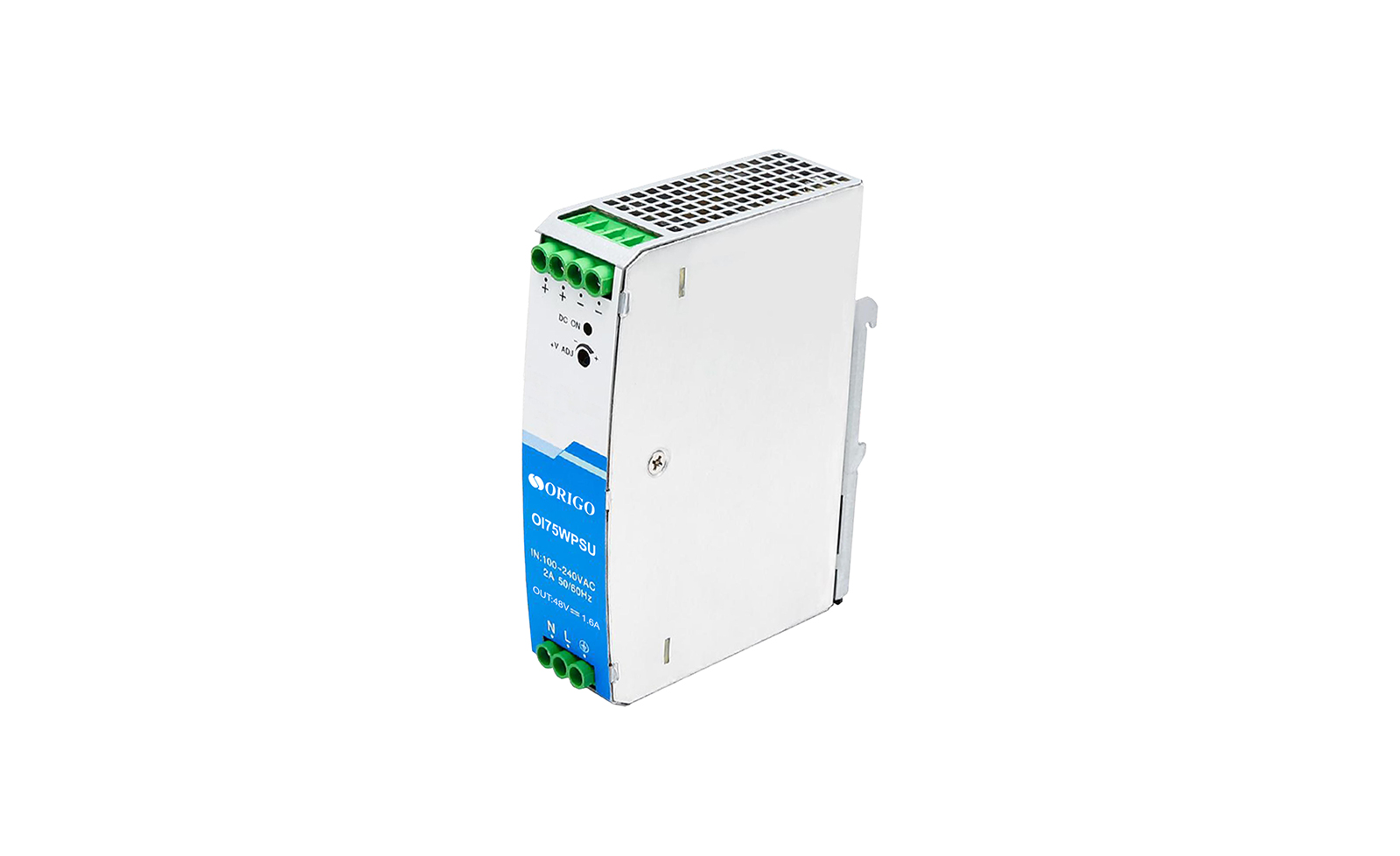

The ORIGO OI75WPSU – Industrial DIN-Rail Power Supply, 75W Output, 48 V DC.
The ORIGO OI75WPSU power supply is designed to provide power for network equipment in stringent industrial environments with demanding operating conditions.
The ORIGO OI75WPSU operates within a temperature range of -30 to 70 °C. It features built-in protection against short circuits, overcurrent, overvoltage, and thermal overload, and supports both AC and DC input voltage.
OI75WPSU is recommended for use with ORIGO industrial switches: ORIGO: OI2210, OI2206P/60W, OI3106, OI3106P/60W, OI3112, OI3120.
Specification
|
Hardware
|
|
|
Output Power:
|
• 75 W
|
|
Output Voltage:
|
• 48 V DC, 1.6 A
|
|
Output Voltage Adjustment Range:
|
• 48 – 53 V
|
|
Input Voltage Range:
|
• 90 – 264 V AC (47 – 63 Hz)
• 120 – 370 V DC
|
|
Input Current:
|
• 2 А (115 V AC)
• 1 А (230 V AC)
|
|
Inrush Current:
|
• 25 А (115 V AC)
• 45 А (230 V AC)
|
|
Protection:
|
• Short-circuit protection (recovery time up to 3 s)
• Overvoltage protection
• Overcurrent protection
• Overtemperature protection
|
|
Isolation Voltage (1 min / <10 mA):
|
• Input – Ground: 2000 V AC
• Input – Output: 4000 V AC
• Output – Ground: 500 V AC
|
|
Insulation Resistance:
|
• Input – Ground / Input – Output / Output
• – Ground: 50 MΩ at 500 V DC
|
|
Efficiency (230 V AC):
|
• 90 %
|
|
Hot-Swap:
|
• Not supported
|
|
Ventilation System
|
• Fanless
|
|
Casing
|
• Metal
|
|
Mounting
|
• DIN-rail
|
|
Physical Parameters
|
|
|
Dimensions
(W × D × H)
|
• 87.5 x 32 x 125 mm
|
|
Weight
|
• 350 g
|
|
Operating Conditions
|
|
|
MTBF
|
• 300 000 hours
|
|
Temperature
|
• Operating: -30 to 70 °C
• Storage: -40 to 85 °C
|
|
Humidity
|
• Operating: 20% to 90% (non-condensing)
• Storage: 10% to 95% (non-condensing)
|
|
Certifications & Standards
|
|
|
Safety Standard
|
• UL61010-1
• IEC/EN/UL/BS EN62368-1
|
|
Safety Class:
|
• Class I
|
|
EMI
|
• Conducted Emission (CISPR32/EN55032 CLASS B)
• Radiated Emission (CISPR32/EN55032 CLASS B)
• Harmonic Current (IEC/EN6100-3-2 CLASS A)
|
|
EMS
|
• Electrostatic Discharge (ESD) Immunity (IEC/EN61000-4-2)
- Contact: ±6 kV, Air: ±8 kV (in accordance with Criterion A)
• Radiated Electromagnetic Immunity (IEC/EN61000-4-3)
- 10 V/m (in accordance with Criterion A)
• Electrical Fast Transient/Burst Immunity (IEC/EN61000-4-4)
- ±4 kV (in accordance with Criterion A)
• Surge Immunity (IEC/EN61000-4-5)
- Line-to-line: ±2 kV, Line-to-ground: ±4 kV (in accordance with Criterion A)
• Conducted Disturbance Immunity (IEC/EN61000-4-6)
- 10 V rms (in accordance with Criterion A)
• Voltage Dips, Short Interruptions, and Voltage Variations Immunity (IEC/EN61000-4-11)
- 0%, 70% (in accordance with Criterion B)
|
|
Package Contents
|
|
|
Package Contents
|
• Power Supply OI75WPSU
• Quick Installation Guide
|
|
Compatible Products
|
|
|
Switches
|
• OI2210
• OI2206P/60W
• I3106P/60W
• OI3106
• OI3112
• OI3120
|
