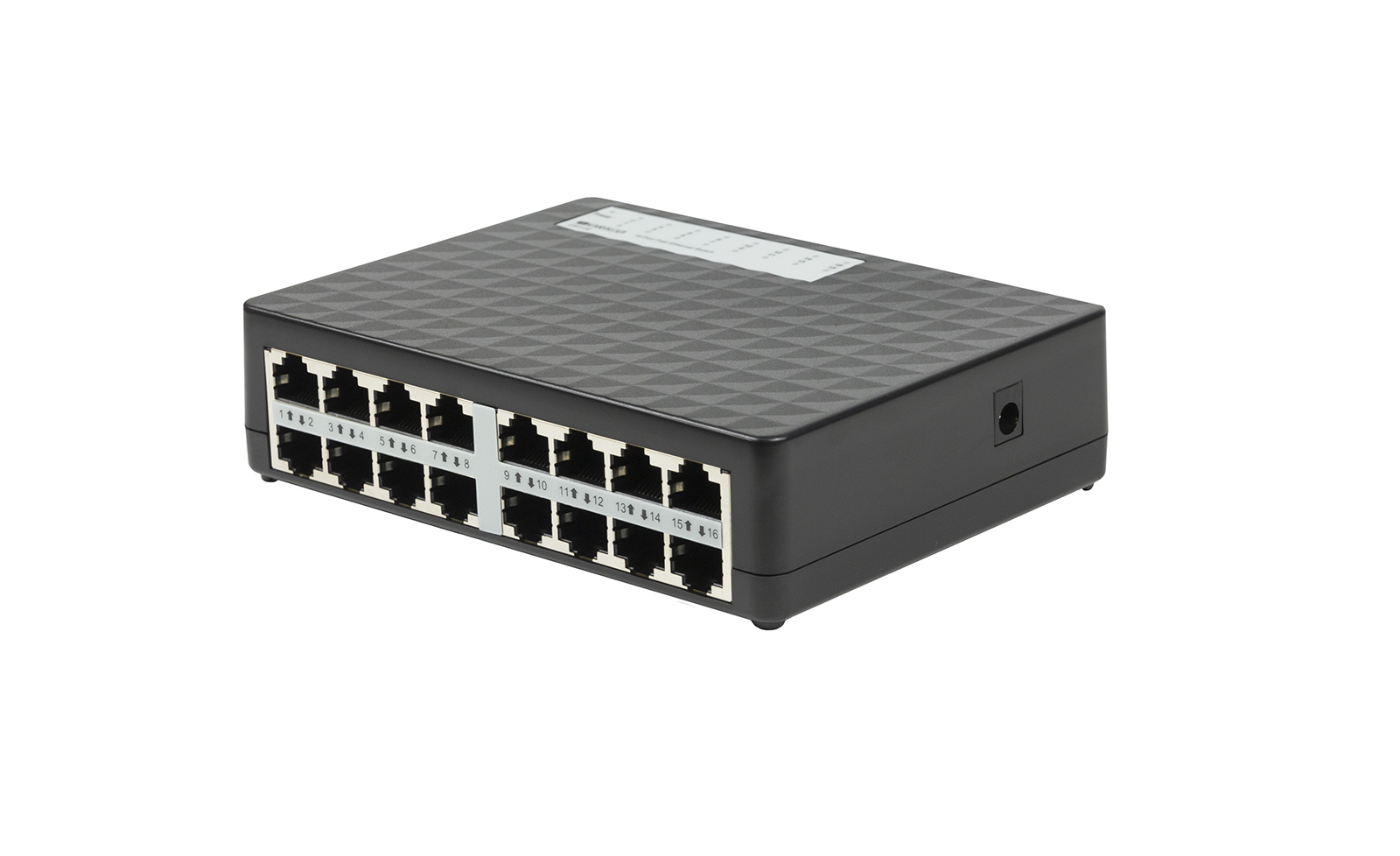

OS1116
Switch 16x100Base-TX, plastic casing

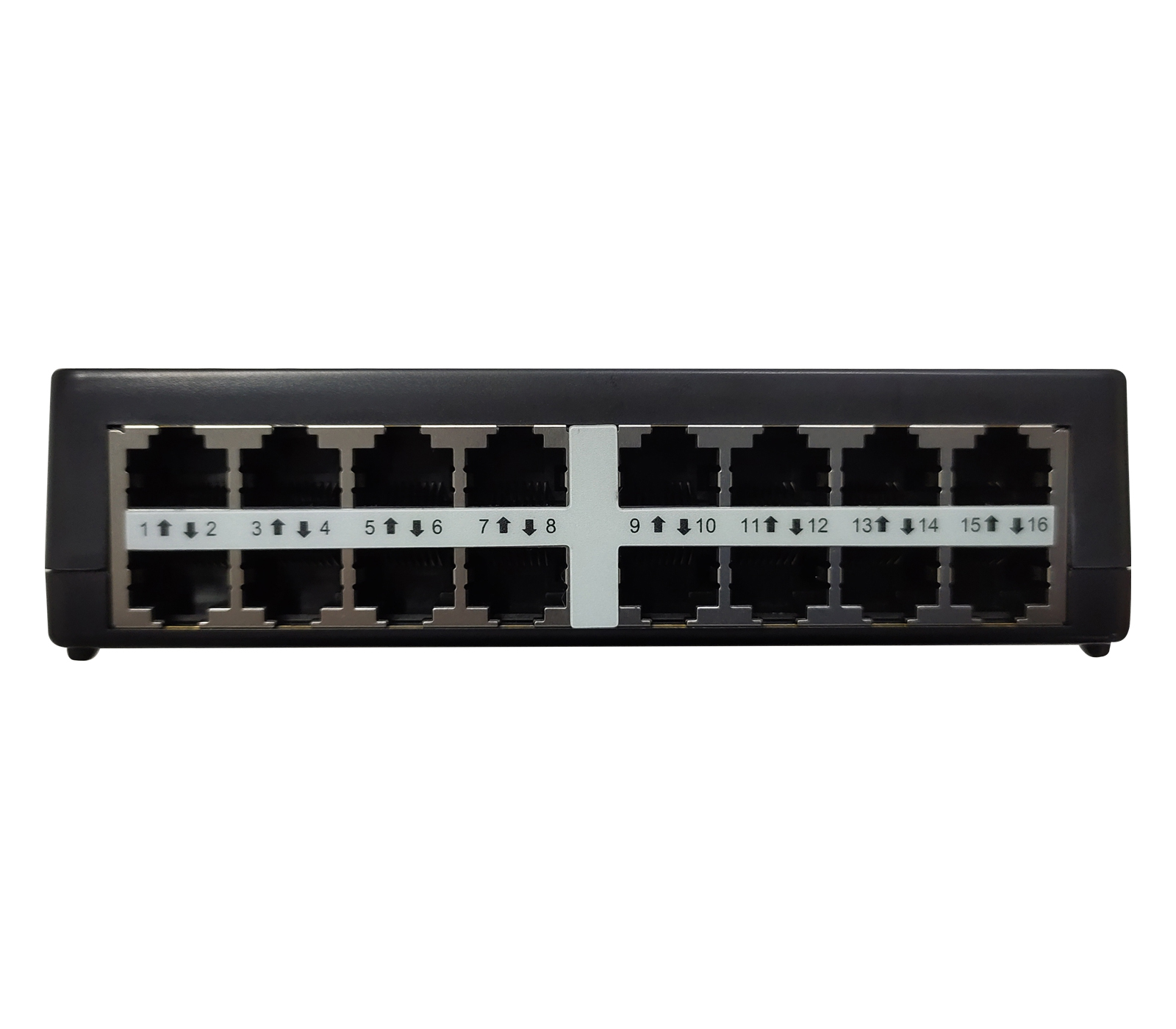

- 16 x 10/100 Mbps (RJ-45) ports with auto speed negotiation
- Auto MDI/MDIX adjustment
- Energy Saving function

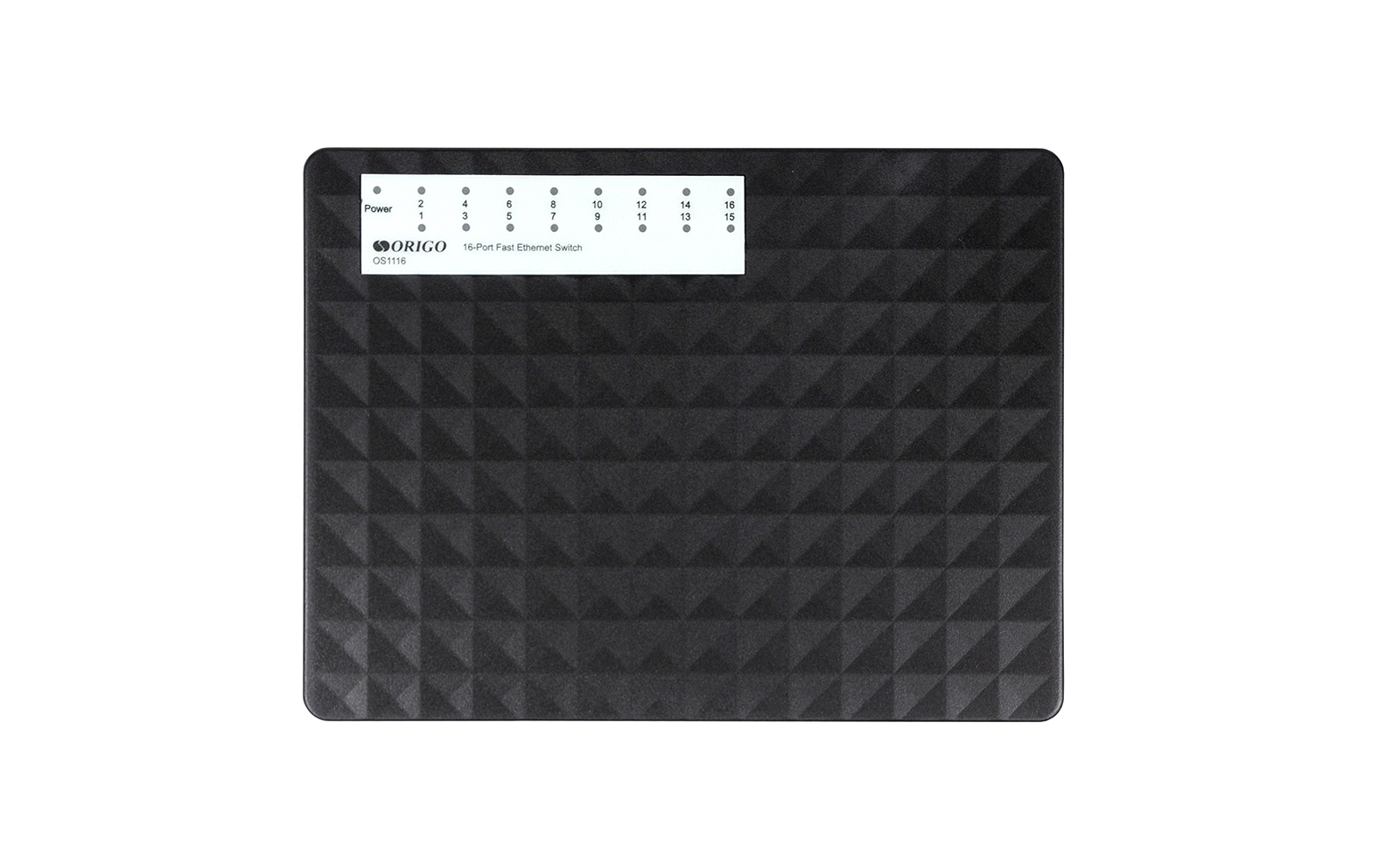

- LEDs on top panel for convenient monitoring of network operation
- Compact and noise-free

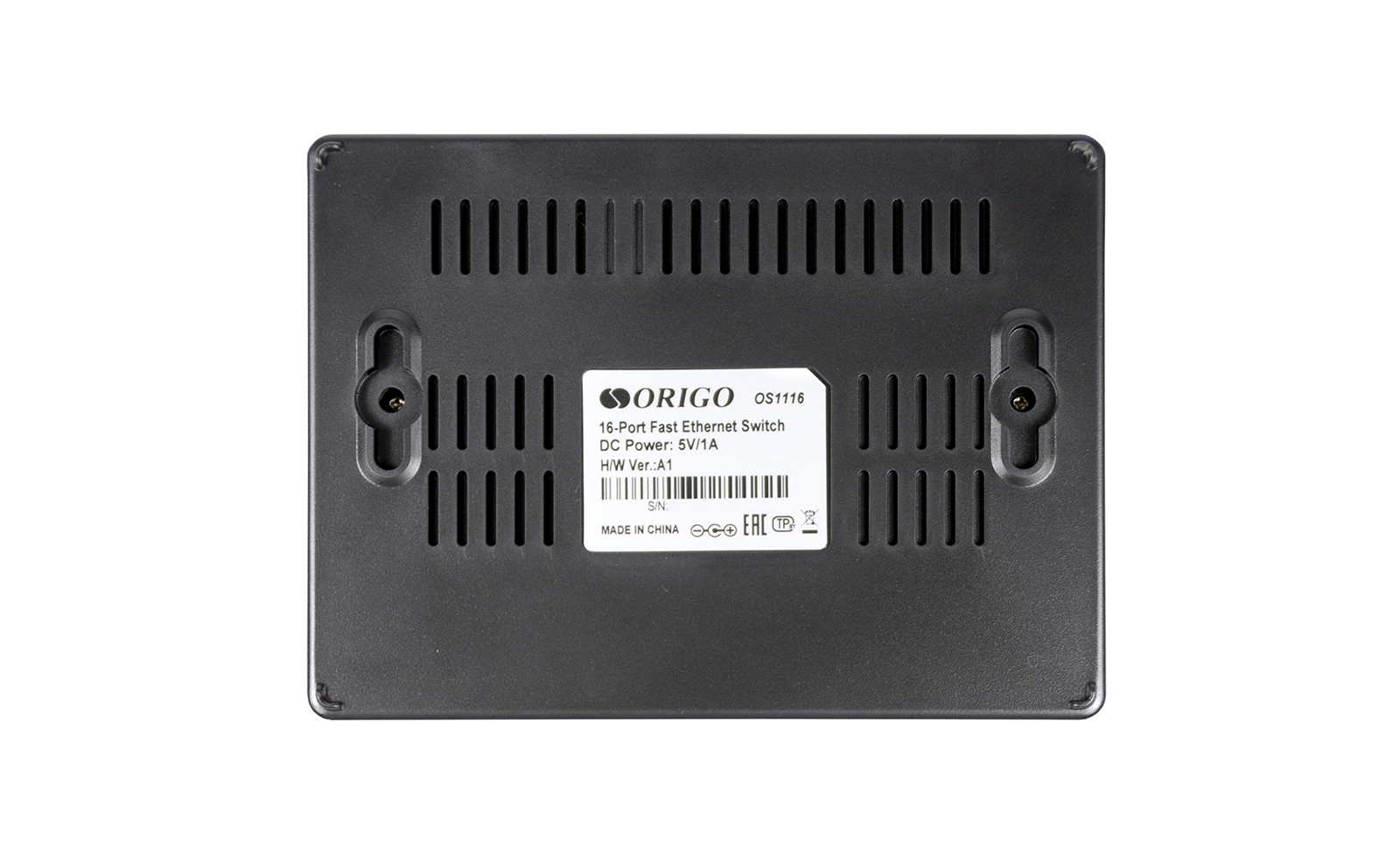

- Wall mountable
- No configuration required
Description

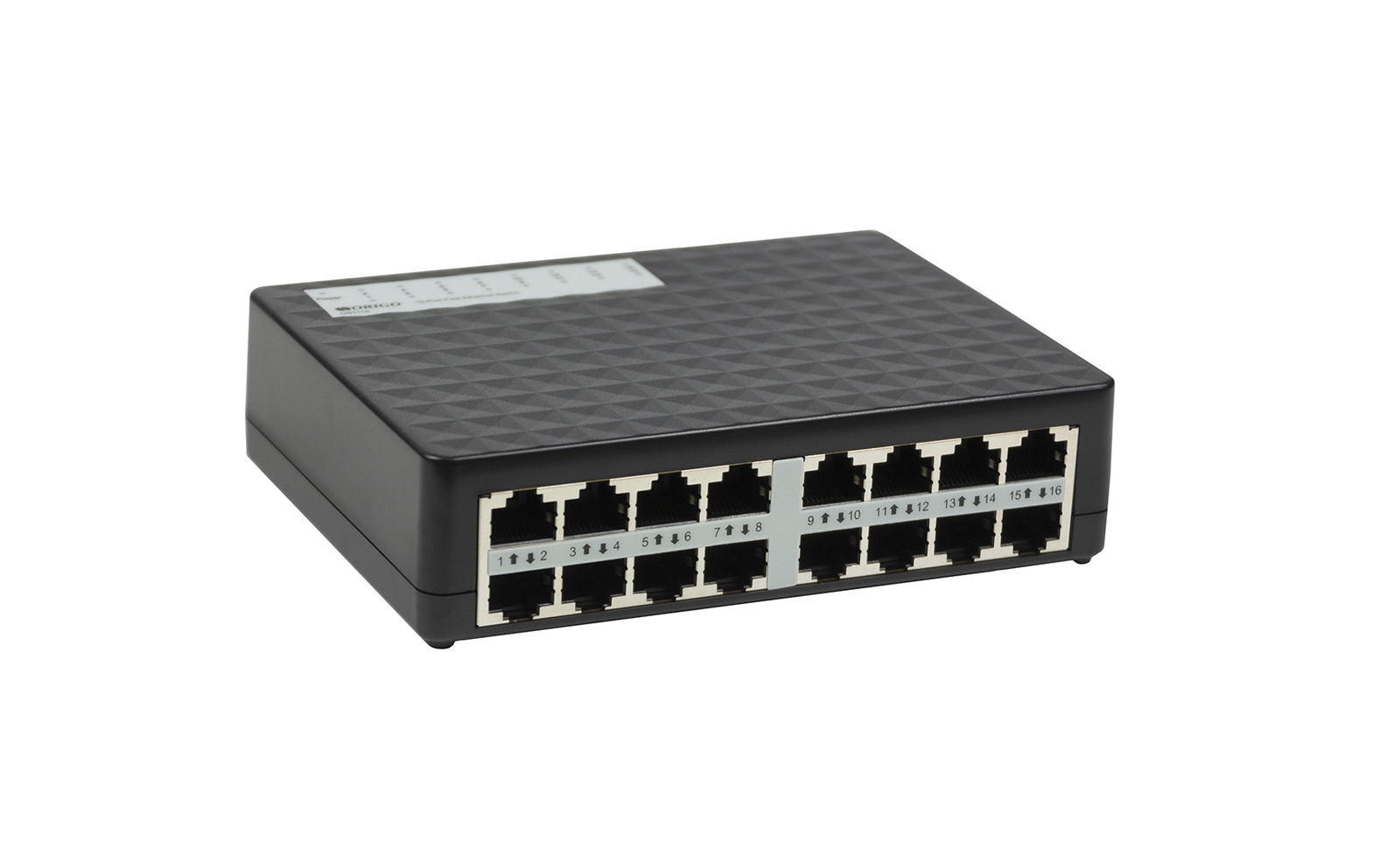

OS1116 is a switch with 16 x 10/100 Mbps ports in plastic casing, supporting wall mounting.
The ORIGO OS1116 switch is a simple and affordable solution for connecting end users to Small Medium Business (SMB) network, in offices, educational and medical facilities.
The switch requires no configuration and is ready for operation immediately after connecting power.
All ports support auto MDI/MDIX adjustment and detect the type of connected cable automatically. Auto negotiation function allows the switch to select maximum possible connection speed for connected device and activate duplex mode.
The fanless ventilation system provides noise-free operation of the switch, that allows you to place it in close proximity to working places.
Specification
|
Hardware
|
|
|
Chipset
|
• IP1717B
|
|
Interfaces
|
• 16 x 10/100Base-TX (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Automatic negotiation of speed and duplex mode
• Auto MDI/MDIX adjustment
|
|
Data Rate
|
• Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
• Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
|
|

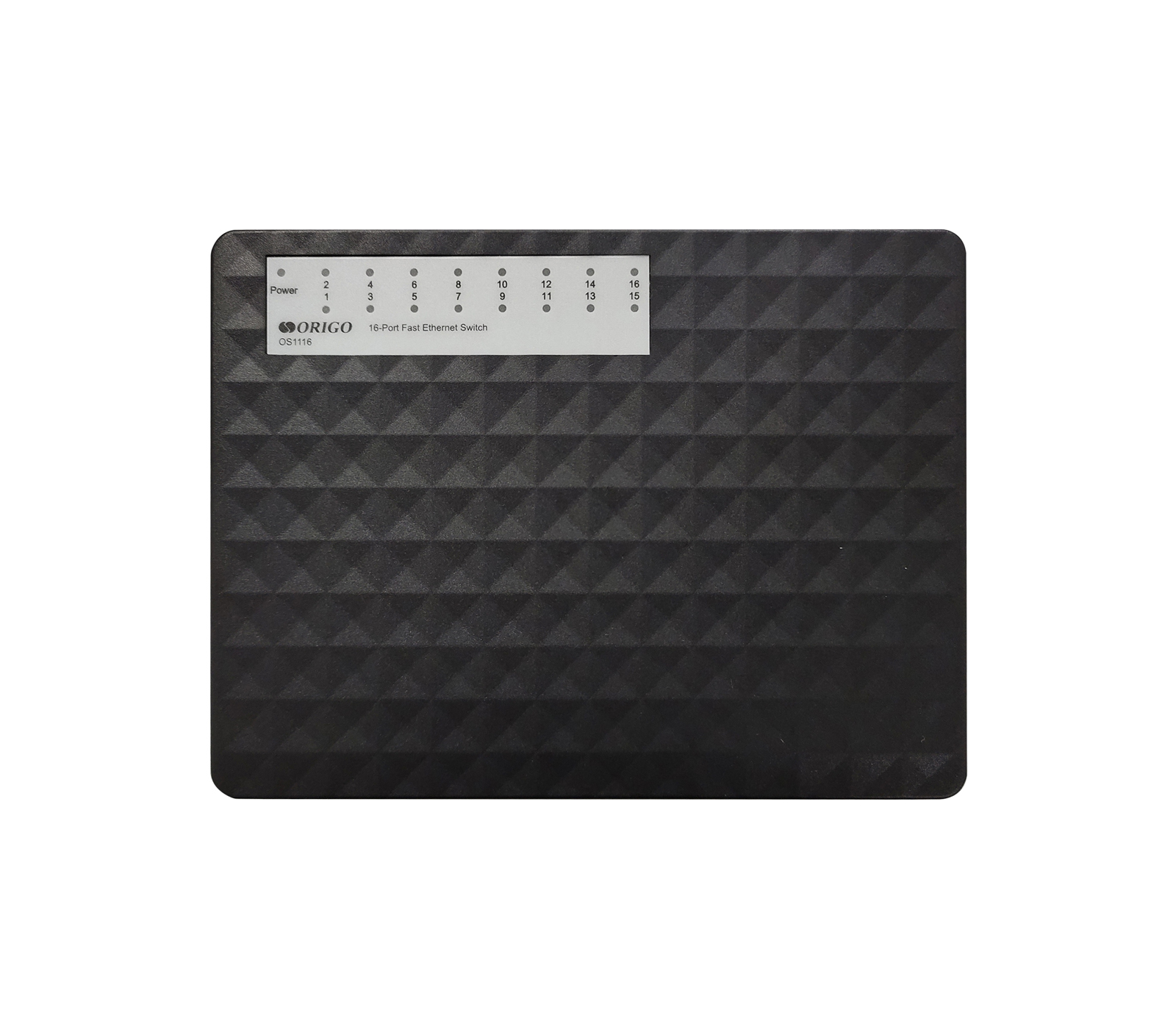

LEDs
|
• Power
- On – Power on state
- Off – Power off state
• Link/Act (ports 1 – 16)
- Always bright – Terminal device connected
- Blinking – Data pass
- Off – No connection
|
|
Ventilation System
|
• Fanless
|
|
Power
|
• Connector for connecting the DC power adapter
|
|
Casing
|
• Plastic
|
|

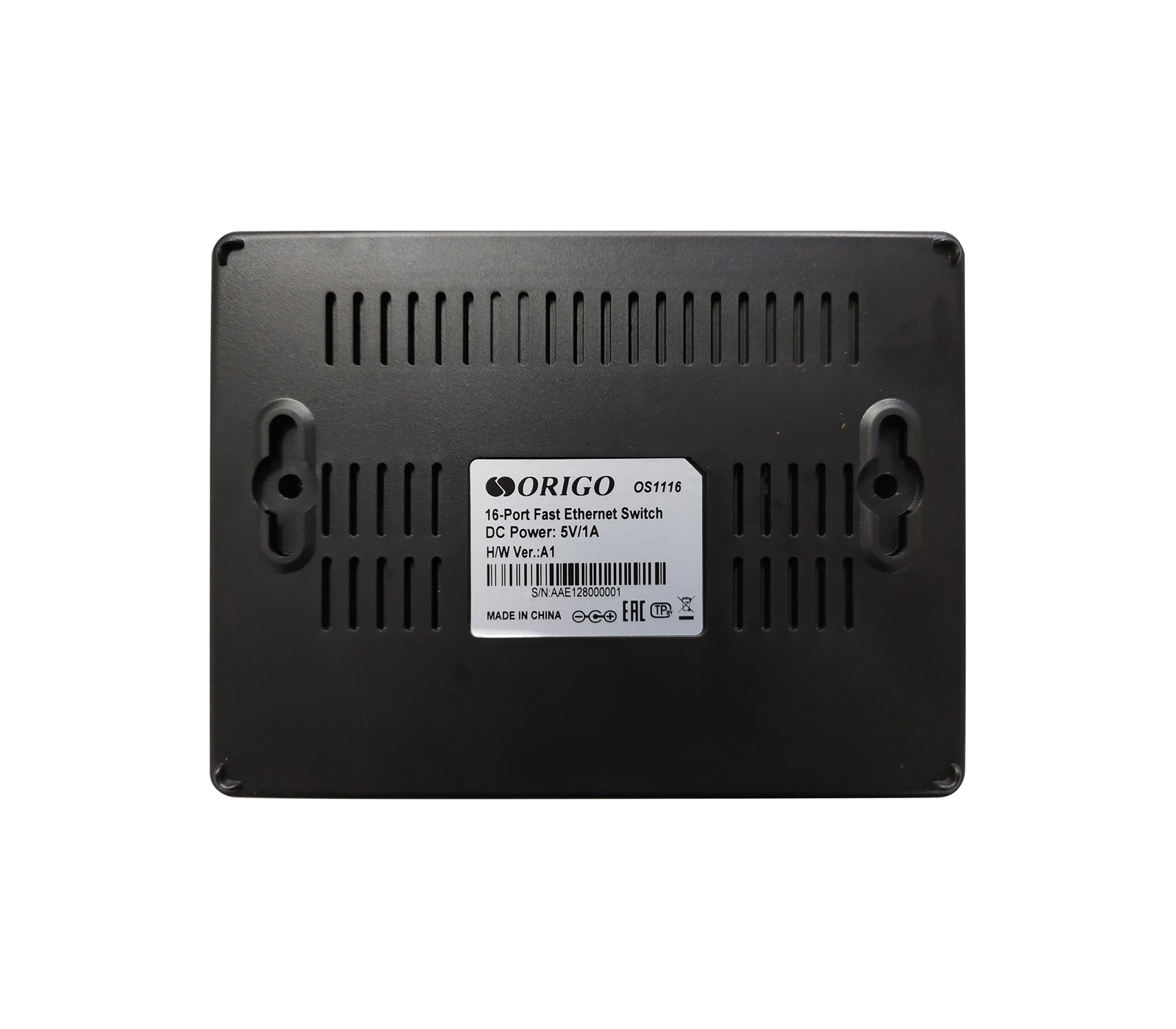

Mounting
|
• Desktop
• Wall
|
|
Performance
|
|
|
Switching Capacity
|
• 3.2 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 4K entries
|
|
Packet Forwarding Rate
|
• 2.52 Mpps
|
|
Packet Buffer
|
• 160 KB
|
|
Jumbo Frame
|
• 1596 bytes
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 138 x 103 x 35 mm
|
|
Weight
|
• 220 g
|
|
Package Dimensions
|
• 16 х 11 х 7 cm
|
|
Gross Weight
|
• 0.38 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• Power adapter:
- Input: 100-240 V AC, 50/60 Hz
- Output: 5 V DC, 1 A
|
|
Power Consumption
|
• 5.2 W
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

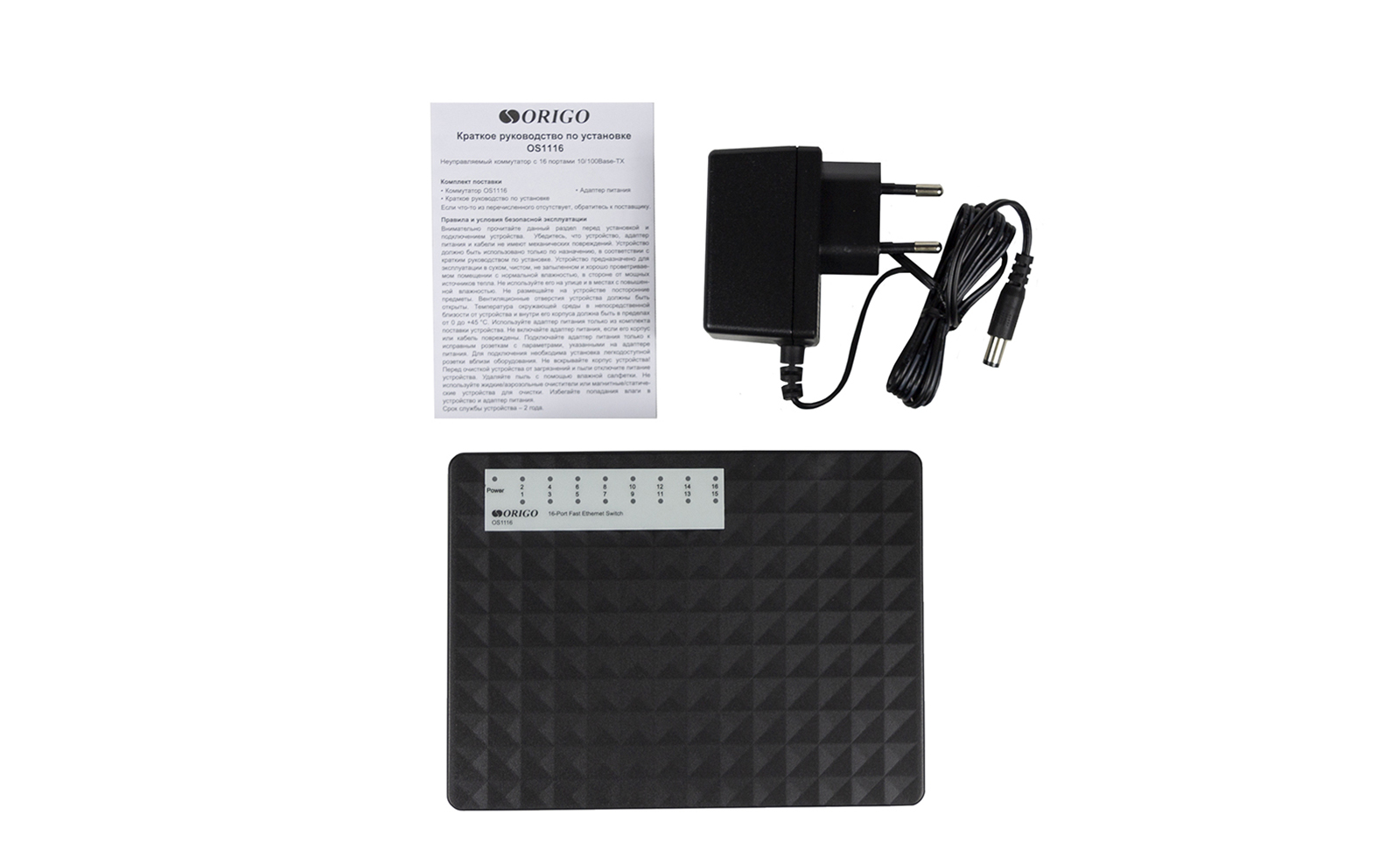

Package Contents
|
|
|
Package Contents
|
• OS1116 Switch
• Power Adapter
• Quick Installation Guide
|
