OS2210P/120W
Configurable PoE Switch
8x1000Base-T PoE+, 2x1000Base-T,
120W PoE Budget, DIP Switch
- 8x10/100/1000Base-T 802.3af/at PoE ports
- 2x10/100/1000Base-T (RJ-45) ports
- Total PoE power budget: 120 W
- CCTV Mode to increase power supply and data transmission up to 250 m
- VLAN Mode for PoE ports isolation
- Mode configuration via DIP switch
- ±4KV Surge Protection / ±8KV Electrostatic Standard
- Wall / 19'' rack mounting
Description

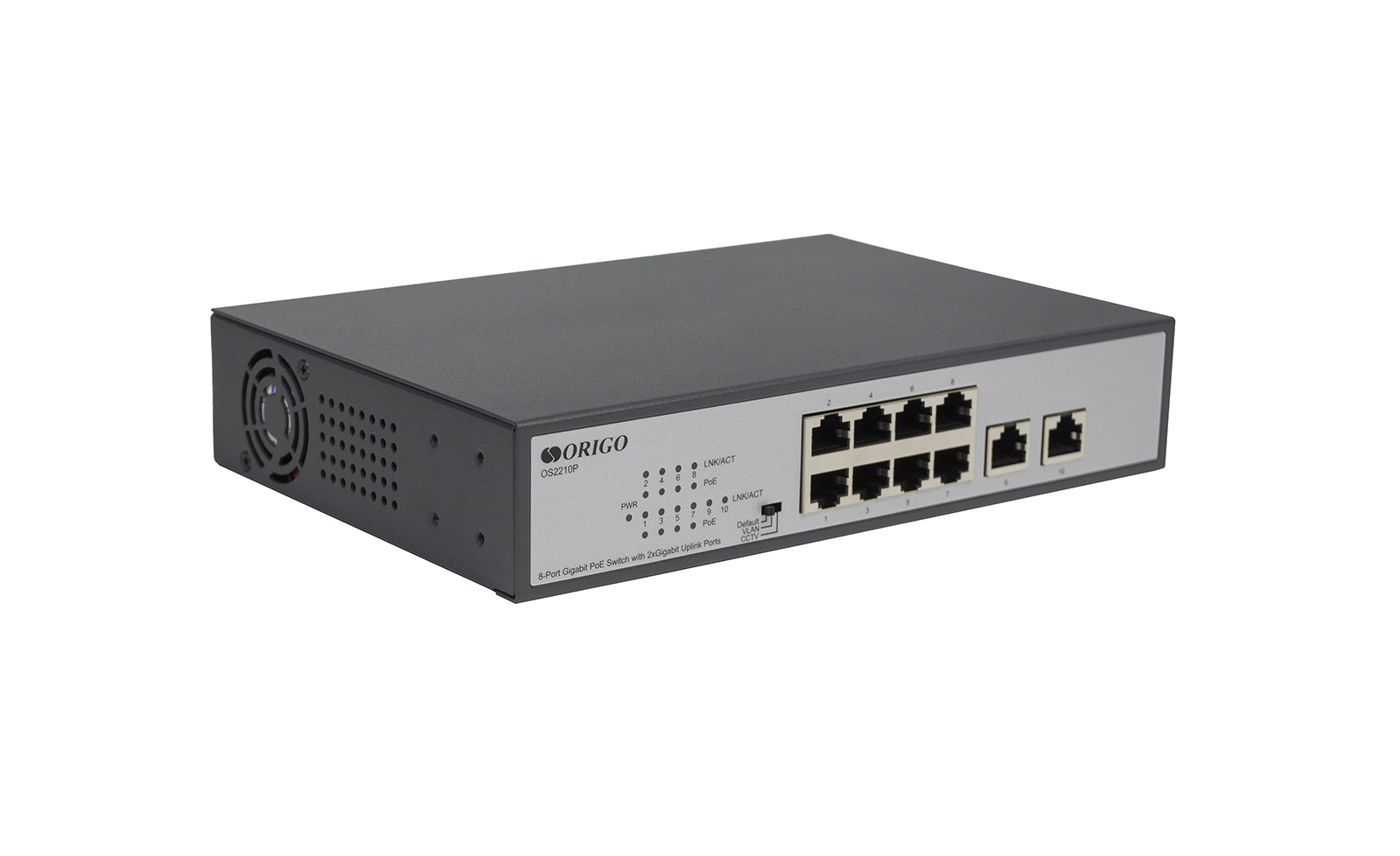

The OS2210P/120W is a gigabit configurable switch with 8x10/100/1000Base-T PoE+ ports, 2x10/100/1000Base-T and a DIP Switch.
The ORIGO OS2210P/120W switch is recommended for building of small and medium enterprises' networks that need a modern gigabit solution to increase bandwidth at level of aggregation and organization of remote power supply to surveillance cameras, wireless access points, IP phones and other PoE devices.
The ports 1-8 support 802.3af/at PoE standards, providing up to 30 W for each port and a total PoE budget of 120 W. Electrostatic protection provides the resistance of PoE ports to induced voltage and prevents a failure of the switch and connected equipment.
VLAN Mode and CCTV Mode allow to isolate traffic on PoE ports and to increase power supply and data transmission up to 250 m.
The OS2210P/120W switch is housed in a metal casing with the possibility of wall and 19'' rack mounting. Mounting kit is included in the package.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8367S
|
|
Interfaces
|

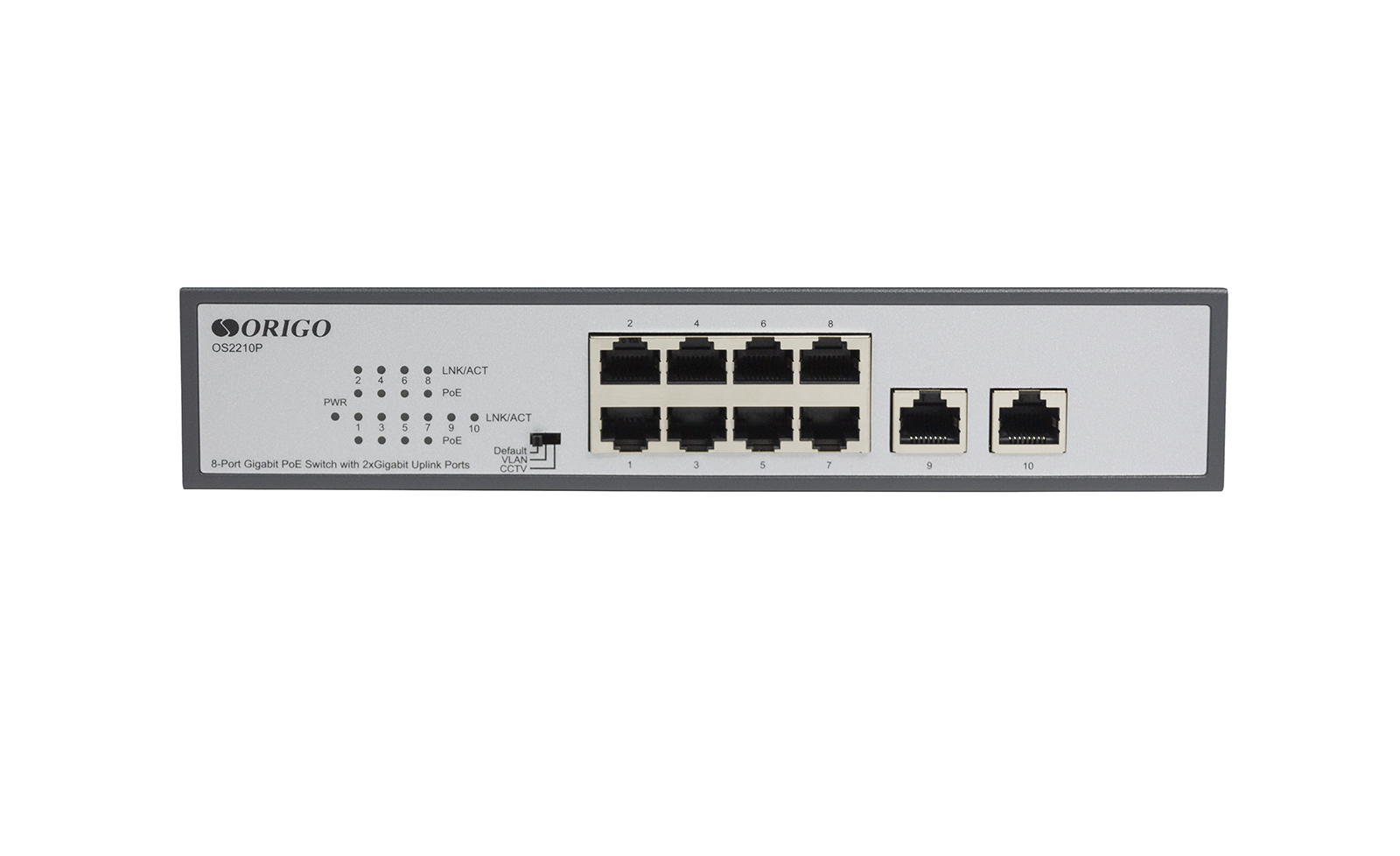

• 8x10/100/1000Base-T (RJ-45) PoE ports
• 2x10/100/1000Base-T (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.3x (Flow Control)
• IEEE 802.3az (Energy Efficient Ethernet)
• Auto MDI/MDIX for copper ports
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link/Act
- Always bright – terminal device is connected
- Flicker – data pass
- Off – no connection
• PoE (port 1 – 8)
- On – PoE device is connected
- Off – PoE device is not connected
|
|
DIP Switches
|
• Standard Mode (Default)
- PoE up to 100 m
- Data transmission rate – 10/100/1000 Mbps
• VLAN Mode
- Traffic isolation on the ports 1 – 8
• CCTV Mode
- PoE up to 250 m
- Data transmission rate – 10 Mbps
|
|
Ventilation
|
• 1 fan
|
|
Power
|
• Power input (AC)
|
|
Case
|
• Metal
|
|

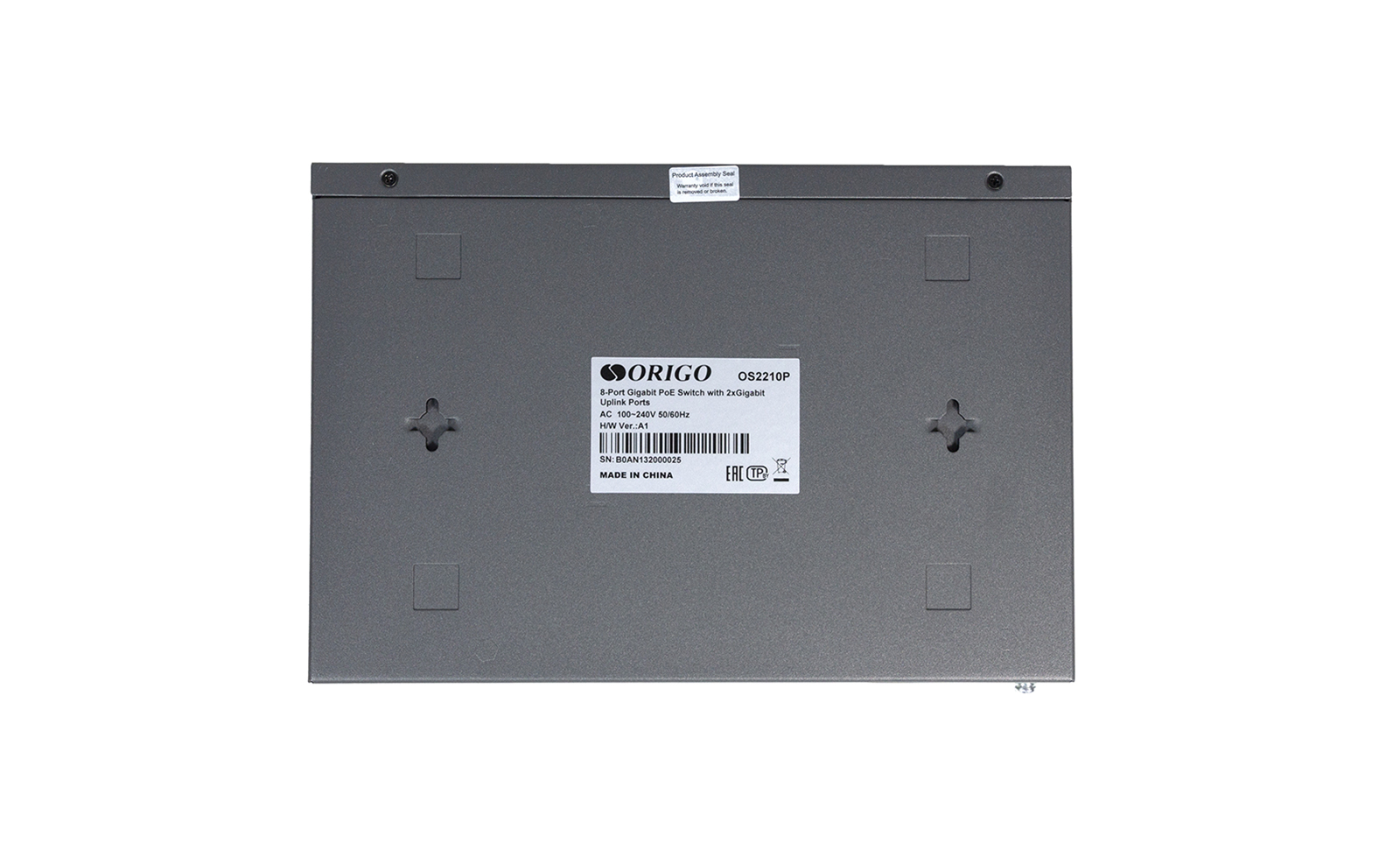

Mounting
|
• Desktop
• Wall
• 19'' rack
|
|
Capacity
|
|
|
Switching Capacity
|
• 20 Gbps
|
|
Packet Forwarding Rate
|
• 14.88 Mpps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8K entries
|
|
Jumbo Frame
|
• 9216 bytes
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1 – 8
|
|
Max. Power Consumption per Port
|
• 30 W
|
PoE Power Budget |
• 120 W |
PoE Mode |
• Type A |
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 220 x 150 x 44 mm
|
|
Weight
|
• 1.24 kg
|
|
Package Size
|
• 31 x 20 x 8 cm
|
|
Gross Weight
|
• 1.74 kg
|
|
Operating Conditions
|
|
|
Power
|

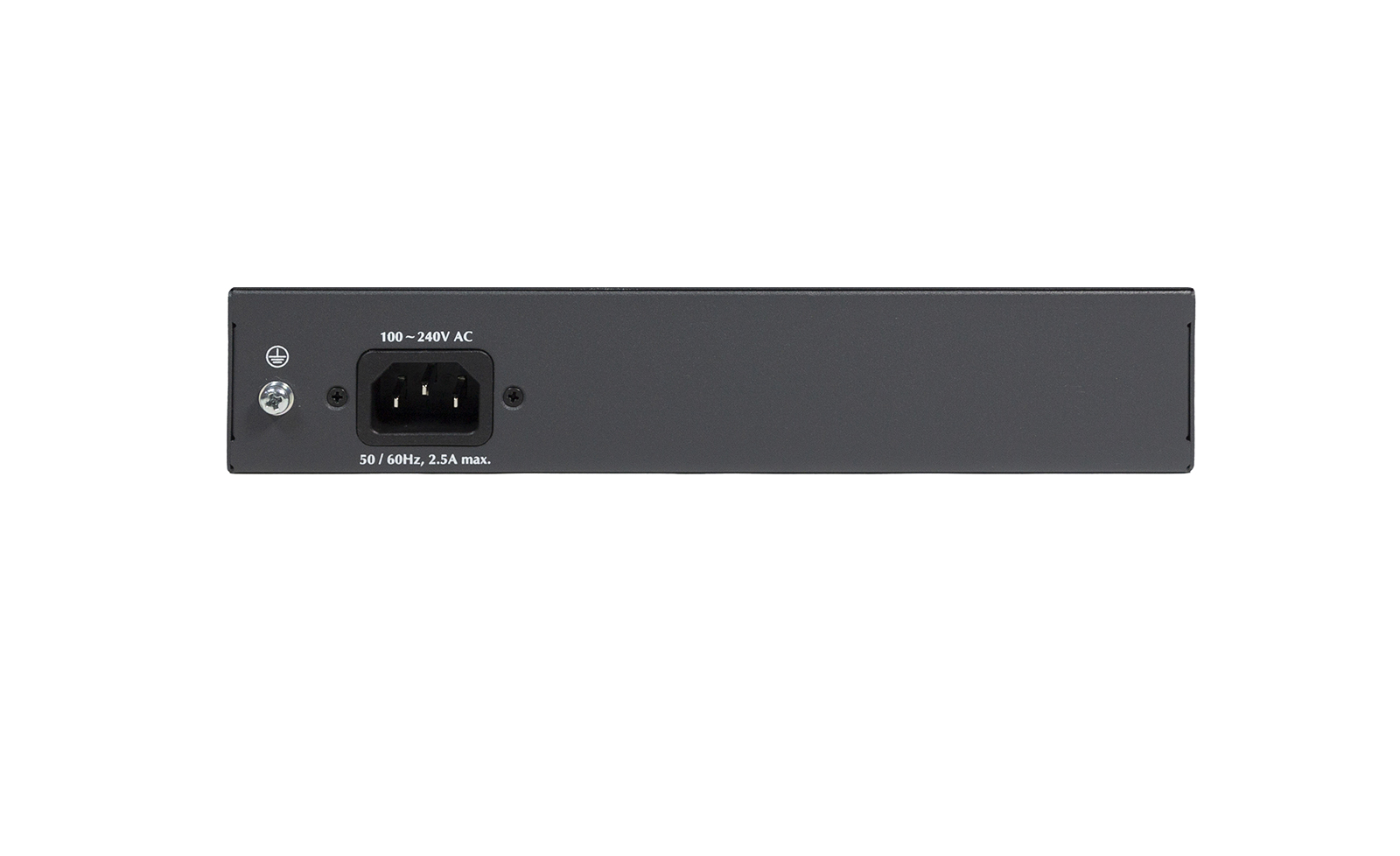

• 100-240 V AC, 50/60 Hz
|
|
Surge Protection
|
• Common mode ±4KV
• Differential mode ±2KV
|
|
Electrostatic Standard
|
• Contact ±6KV
• Air ±8KV
|
|
MTBF (hours)
|
• >50000
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|

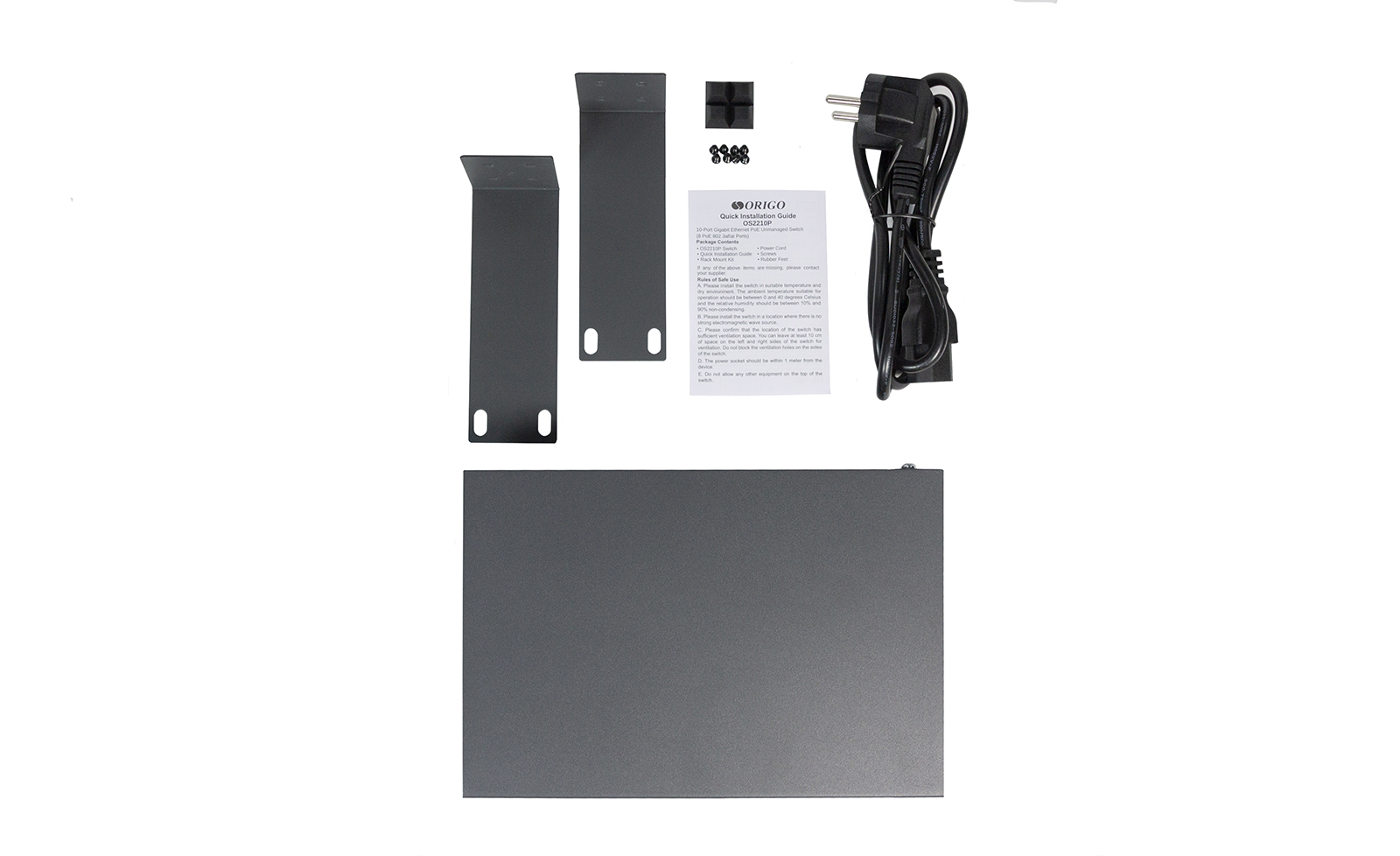

Package Contents
|
|
|
Package Contents
|
• OS2210P/120W Switch
• Power Cord
• 19'' Rack Mounting Kit
• Screws
• Rubber Feet
• Quick Installation Guide
|
