OS2210FP/120W
PoE Switch 8x1000Base-T PoE+,
2x1000Base-X SFP, 120W PoE Budget, PoE up to 250 m
- 8x10/100/1000Base-T 802.3af/at PoE ports
- 2x1000Base-X SFP ports
- Total PoE power budget: 120 W
- Extended PoE range up to 250m for CCTV
- ±4KV Surge Protection / ±8KV Electrostatic Standard
- Wall / 19'' rack mounting
- No setting required
Description

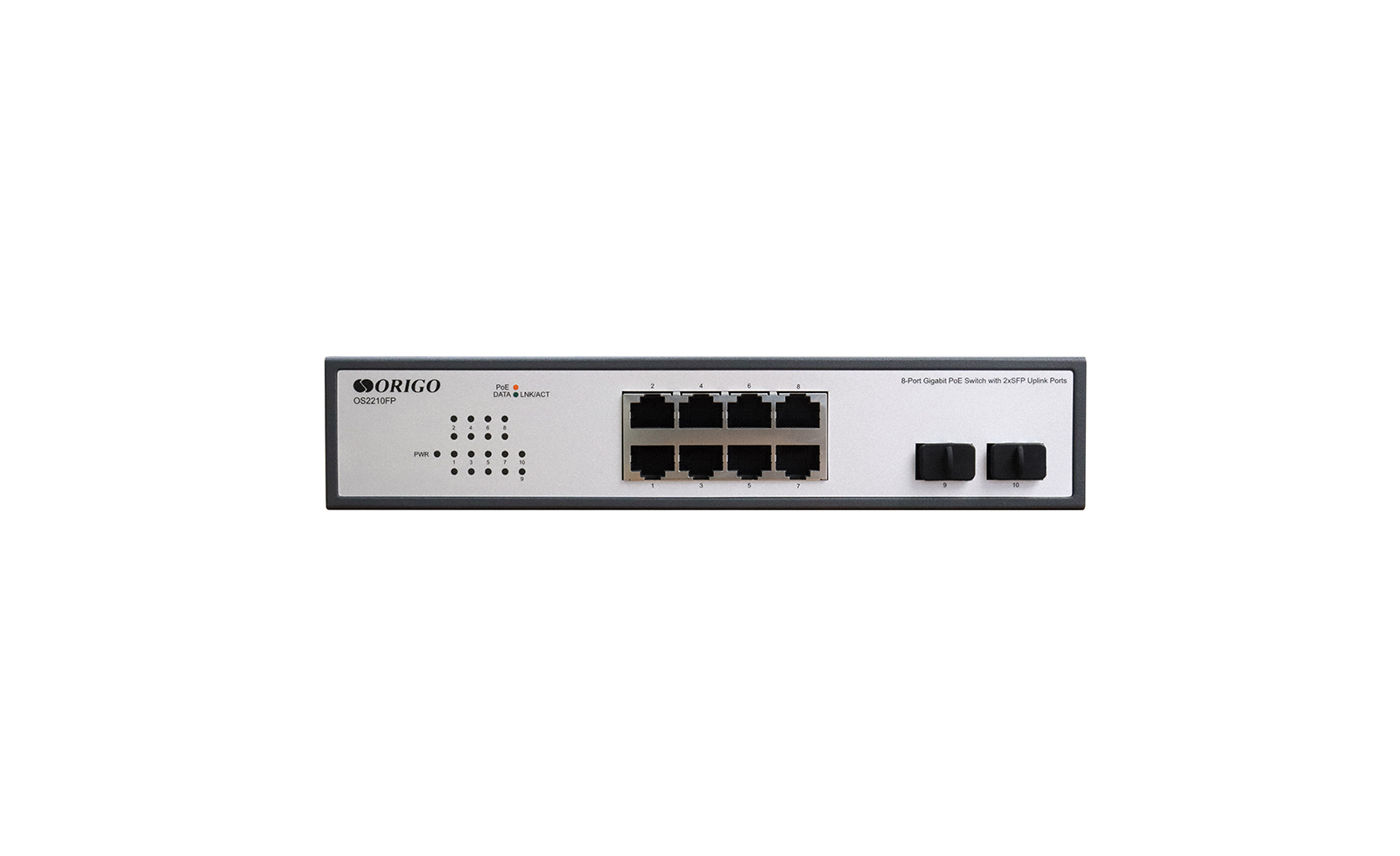

The OS2210FP/120W is a gigabit switch with 8x10/100/1000Base-T PoE+ ports and 2x1000Base-X SFP ports.
The ORIGO OS2210FP/120W switch is recommended for building and modernization of small and medium enterprises' networks that need a modern gigabit solution to increase bandwidth at level of aggregation and organization of remote power supply to surveillance cameras, wireless access points, IP phones and other PoE devices.
The ports 1-8 support 802.3af/at PoE standards, providing up to 30 W for each port and a total PoE budget of 120 W. The Extend PoE mode allows to overcome the standard Ethernet limit of 100 m and connect IP cameras at a distance of up to 250 m at speeds up to 10 Mbit/s, simplifying installation and reducing costs when building CCTV networks. Built-in ESD protection meets industry surge standards, guarding the switch and connected devices from damage and network instability caused by ESD and lightning-induced surges.

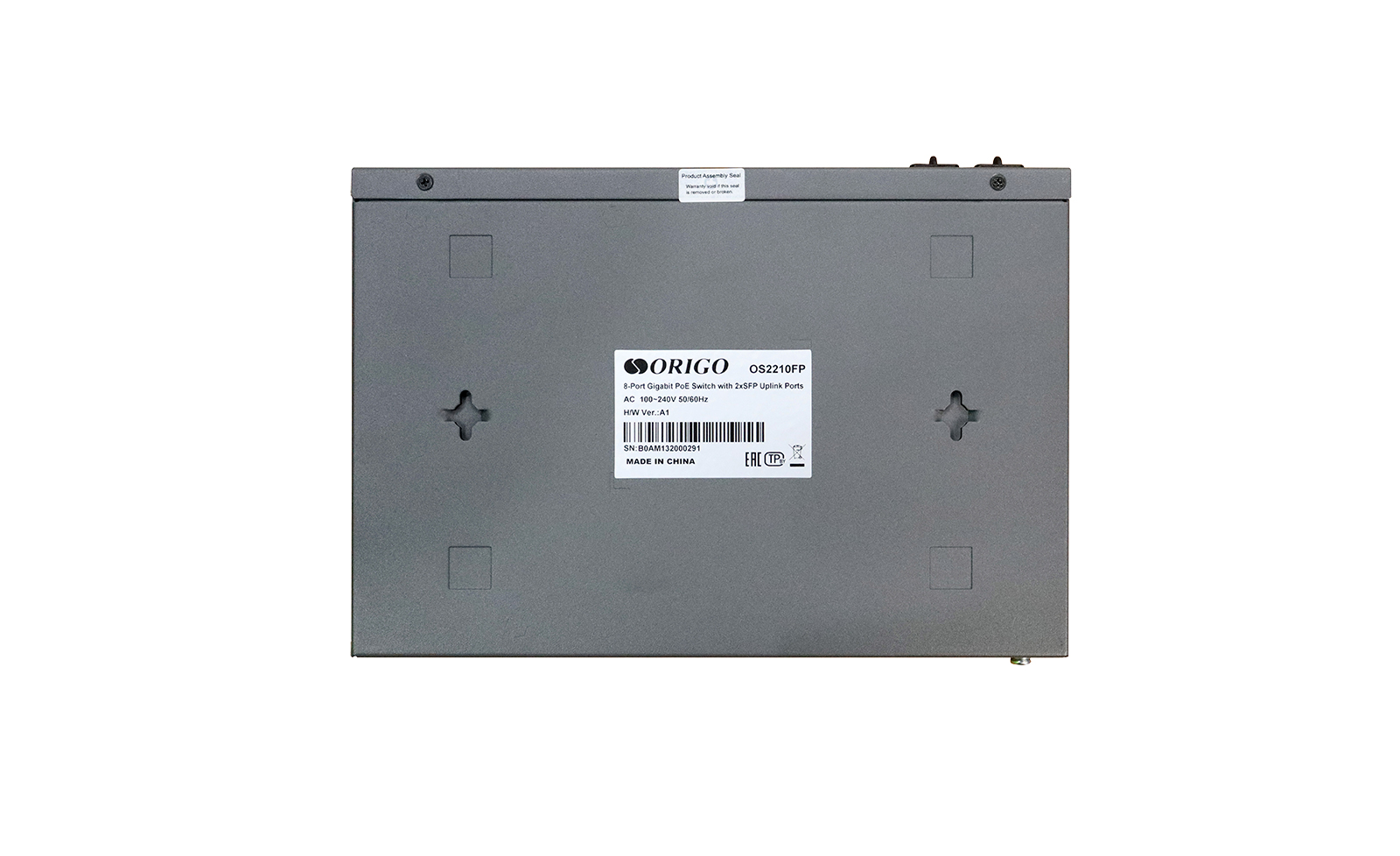

The OS2210FP/120W switch is housed in a metal casing. The device can be mounted to the wall or into a 19'' rack, a rack mounting kit is supplied.
Specification
|
Hardware
|
|
|
Chipset
|
• RTL8380M
|
|
Interfaces
|
• 8x10/100/1000Base-T (RJ-45) PoE ports
• 2x1000Base-X SFP ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.3x (Flow Control)
• Auto MDI/MDIX
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link/Act
- Always bright – terminal device is connected
- Flicker – data pass
- Off – no connection
• PoE (port 1 – 8)
- On – PoE device is connected
- Off – PoE device is not connected
|
|
Power
|
• Power input (AC)
|
|
Ventilation
|
• 1 fan
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• Wall
• 19'' rack
|
|
Capacity
|
|
|
Switching Capacity
|
• 20 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8K entries
|
|
Packet Forwarding Rate
|
• 14.88 Mpps
|
|
Packet Buffer
|
• 512 Kb
|
|
Jumbo Frame
|
• 9 216 bytes
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1-8
|
|
Max. Power Consumption per Port
|
• 30 W
|
|
PoE Power Budget
|
• 120 W
|
PoE Mode |
• Type A |
|
PoE Distance
|
• 100 m
- Data rate – up to 1000 Mbps
• 250 m1
- Data rate – up to 10 Mbps
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 220 x 150 x 44 mm
|
|
Weight
|
• 1.24 kg
|
|
Package Size
|
• 31 х 20 х 8 cm
|
|
Gross Weight
|
• 1.76 kg
|
|
Operating Conditions
|
|
|
Power
|

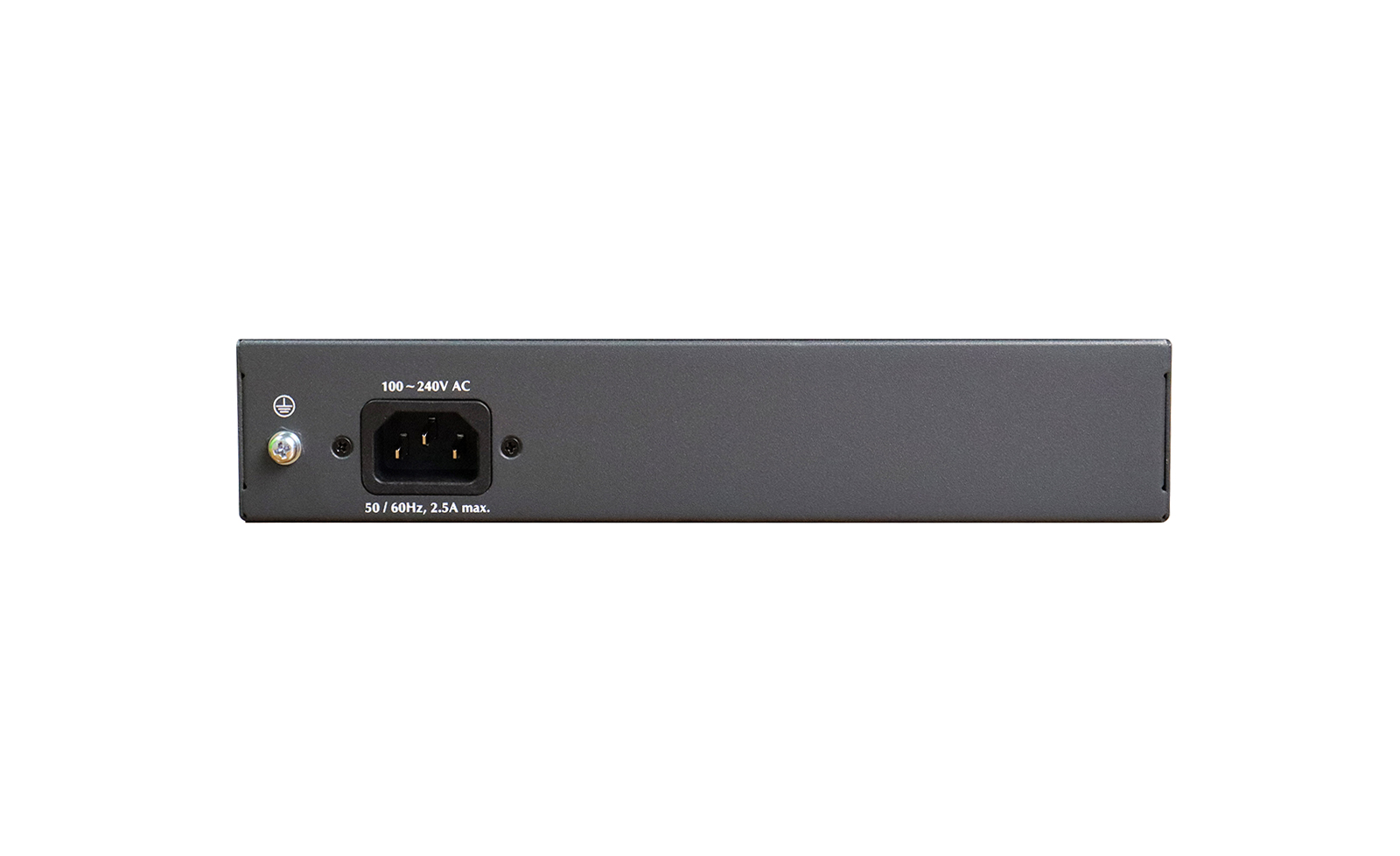

• 100-240 V AC, 50/60 Hz
|
|
Surge Protection
|
• Common mode ±4KV
• Differential mode ±2KV
|
|
Electrostatic Standard
|
• Contact ±6KV
• Air ±8KV
|
|
MTBF (hours)
|
• >50 000
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|
Package Contents
|
|
|
Package Contents
|
• OS2210FP/120W Switch
• Power Cord
• 19'' Rack Mounting Kit
• Screws

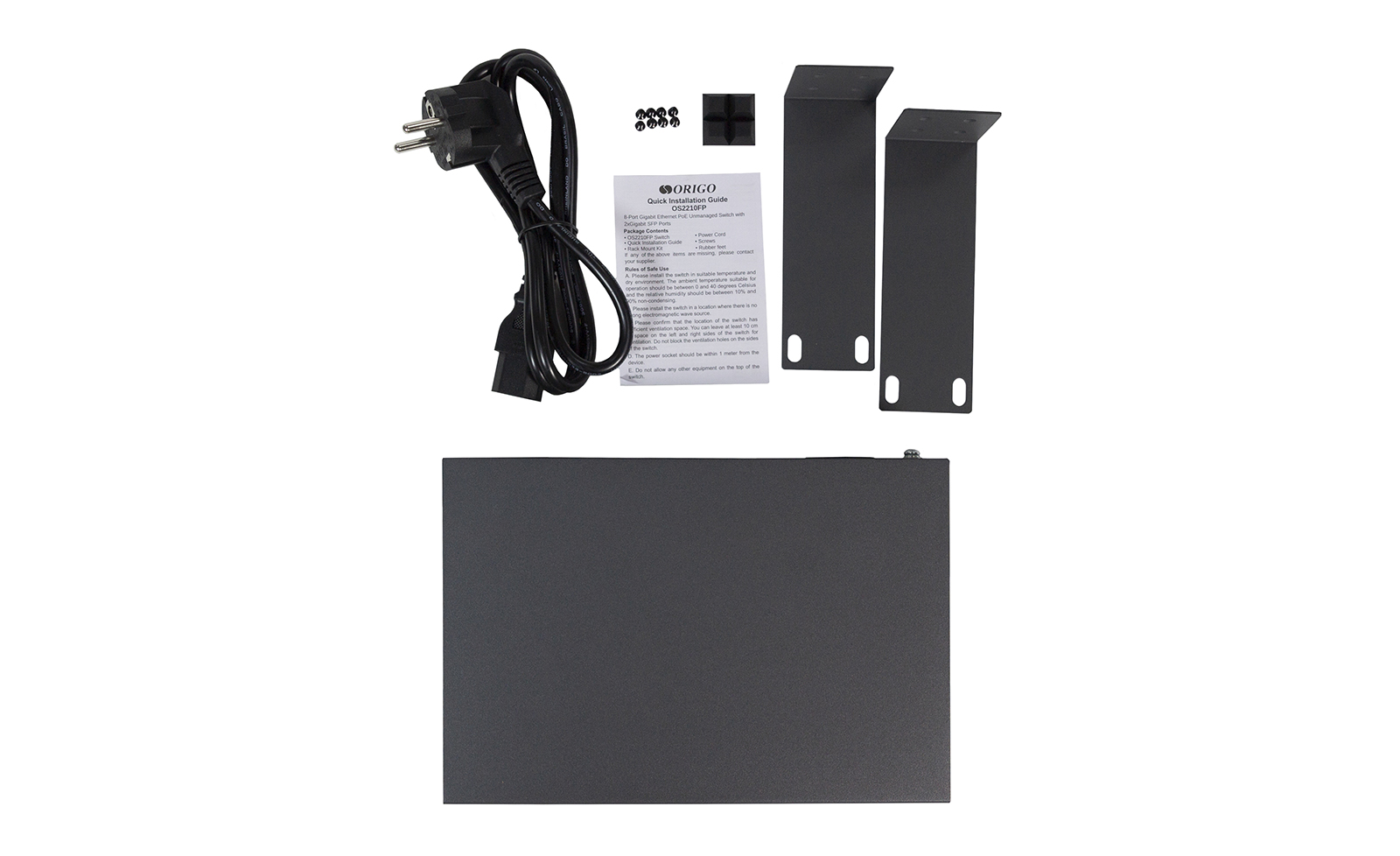

• Rubber Feet
• Quick Installation Guide
|
1Data and power transmission over distances of up to 250 m is possible with a switch port speed limited to 10 Mbps. The connected device should also support speeds of up to 10 Mbps.
