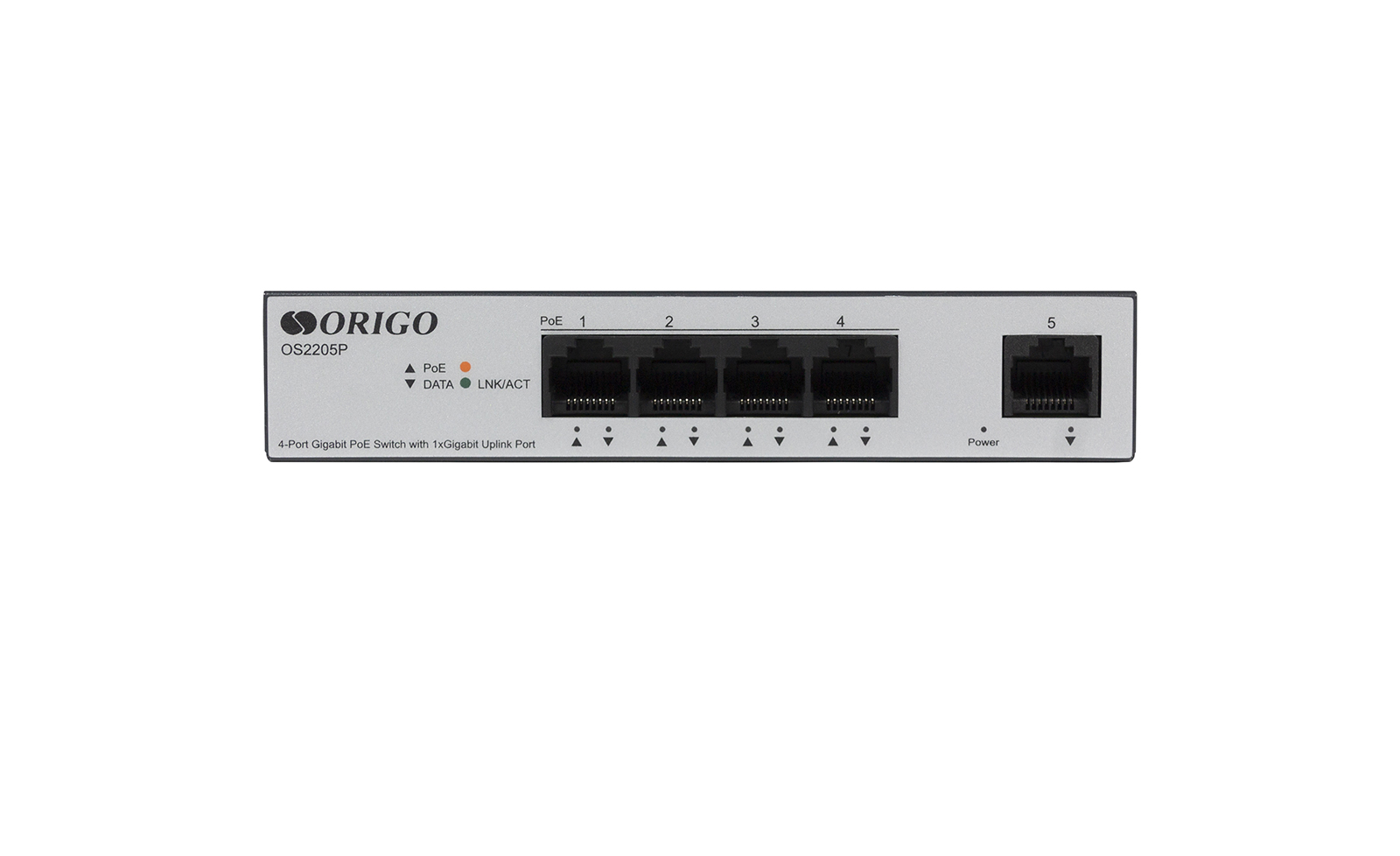

OS2205P/60W
PoE Switch 4x1000Base-T PoE+,
1x1000Base-T, 60W PoE Budget, PoE up to 250 m
- 4x10/100/1000Base-T 802.3af/at PoE ports (up to 30W)
- 1x10/100/1000Base-T (RJ-45) port
- Total PoE power budget: 60 W
- Extended PoE range up to 250m for CCTV
- ±4KV Surge Protection / ±8KV Electrostatic Standard
- Fanless design
- Wall mountable
- No setting required
Description
The OS2205P/60W is a gigabit switch with 4x10/100/1000Base-T PoE+ ports, 1x10/100/1000Base-T port and a total PoE budget of 60 W.
The ORIGO OS2205P/60W switch is recommended for building and modernization of small and medium enterprises' networks that need a modern gigabit solution to increase bandwidth at level of aggregation and organization of remote power supply to surveillance cameras, wireless access points, IP phones and other PoE devices.
The ports 1-4 support 802.3af/at PoE standards, providing up to 30 W for each port and a total PoE budget of 60 W. The Extend PoE mode allows to overcome the standard Ethernet limit of 100 m and connect IP cameras at a distance of up to 250 m at speeds up to 10 Mbit/s, simplifying installation and reducing costs when building CCTV networks. Built-in ESD protection meets industry surge standards, guarding the switch and connected devices from damage and network instability caused by ESD and lightning-induced surges.

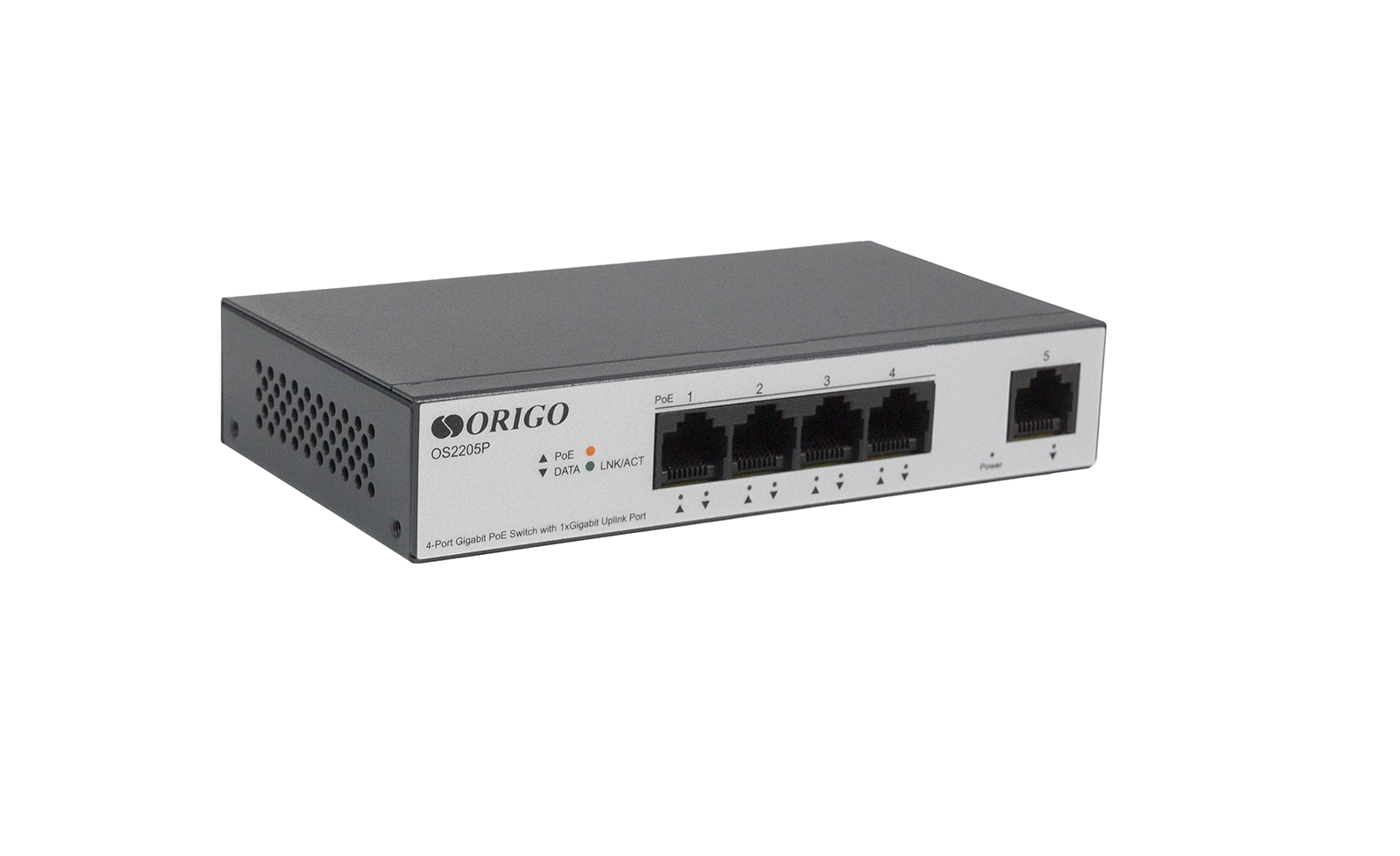

The OS2205P/60W switch is housed in a metal casing with the possibility of wall mounting. The fanless design provides for the silent operation of the device
Specification
|
Hardware
|
|
|
Chipset
|
• MT7530D
|
|
Interfaces
|
• 4x10/100/1000Base-T PoE ports
• 1x10/100/1000Base-T (RJ-45) port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.3x (Flow Control)
• Auto MDI/MDIX
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link/Act
- Always bright – terminal device is connected
- Flicker – data pass
- Off – no connection
• PoE (port 1 – 4)
- On – PoE device is connected
- Off – PoE device is not connected
- Flicker – Output power on PoE port is close to maximum
|
|
Power
|
• Power input (AC)
|
|
Ventilation
|
• Fanless
|
|
Case
|
• Metal
|
|

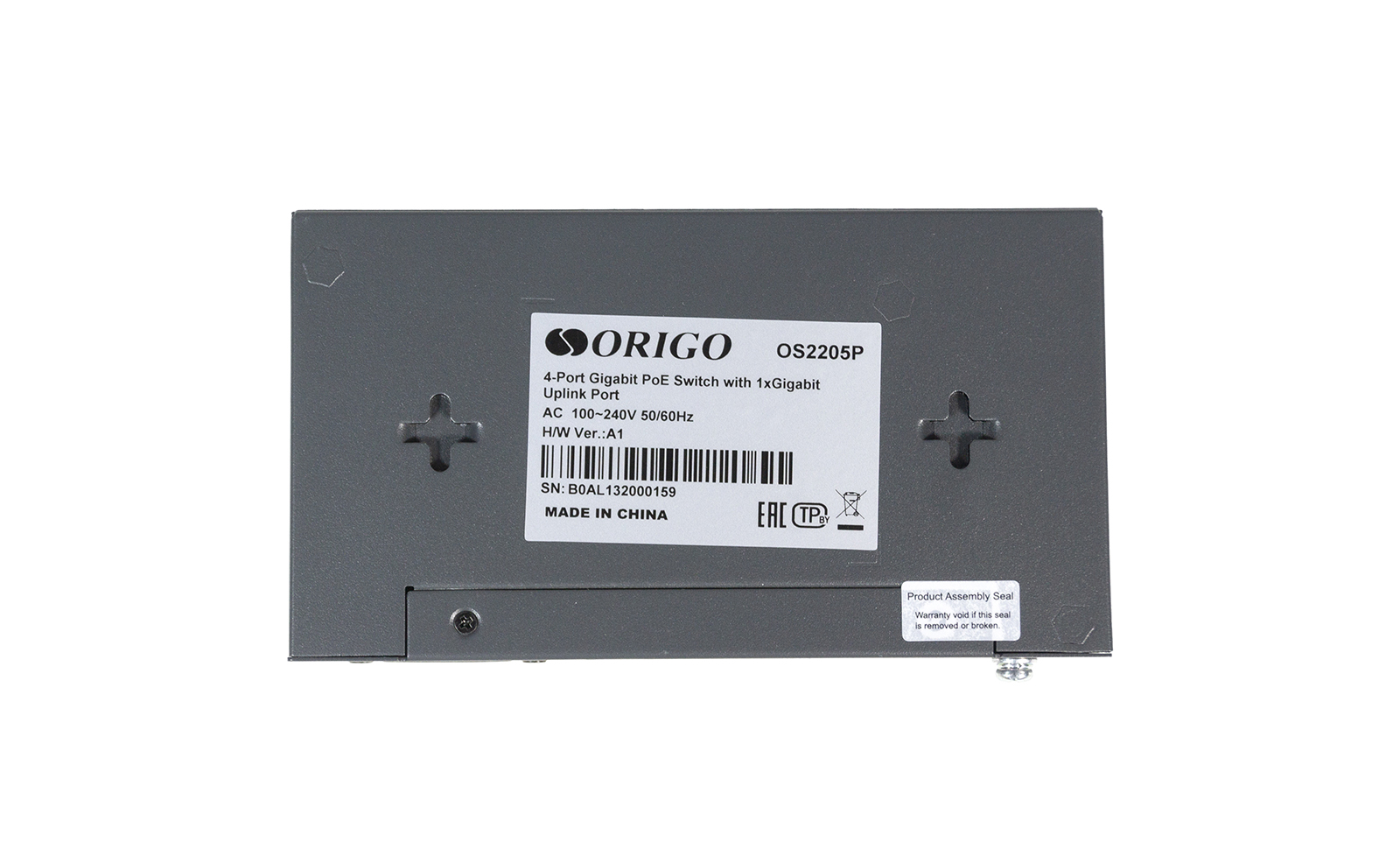

Mounting
|
• Desktop
• Wall
|
|
Capacity
|
|
|
Switching Capacity
|
• 10 Gbps
|
|
Packet Forwarding Rate
|
• 7.44 Mpps
|
|
MAC Address Table
|
• 2K entries
|
|
Packet Buffer
|
• 128 Kb
|
|
Transfer Mode
|
• Store-and-forward
|
|
Jumbo Frame
|
• 9 Kb
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1-4
|
|
Max. Power Consumption per Port
|
• 30 W
|
|
PoE Power Budget |
• 60 W |
PoE Mode |
• Type A |
|
PoE Distance
|
• 100 m
- Data rate – up to 1000 Mbps
• 250 m1
- Data rate – up to 10 Mbps
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 140 x 76.7 x 27.7 mm
|
|
Weight
|
• 0.34 kg
|
|
Package Size
|
• 19.2 х 16.5 х 6 cm
|
|
Gross Weight
|
• 0.58 kg
|
|
Operating Conditions
|
|
|
Power
|

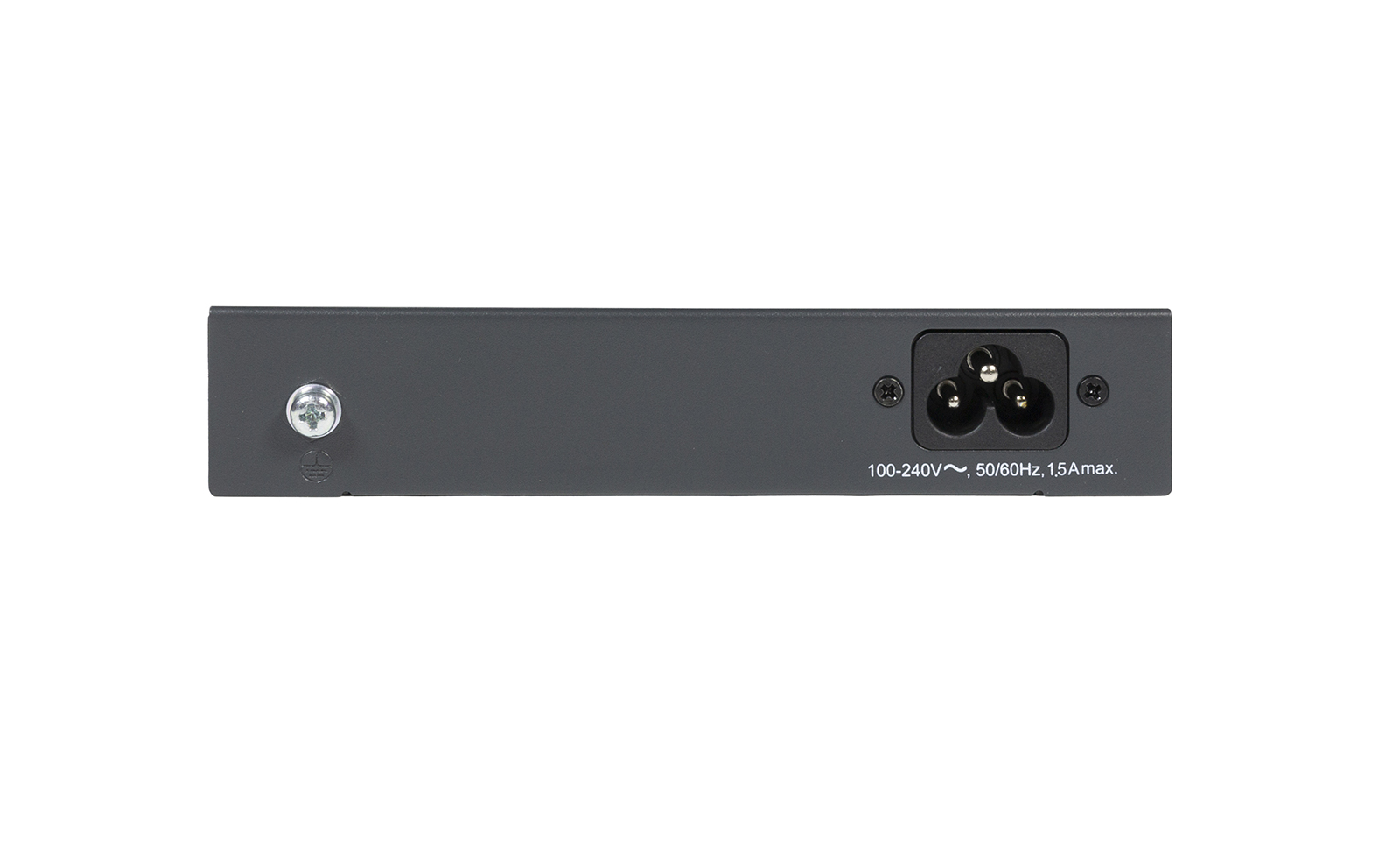

• 100-240 V AC, 50/60 Hz
|
|
Surge Protection
|
• Common mode ±4KV
• Differential mode ±2KV
|
|
Electrostatic Standard
|
• Contact ±6KV
• Air ±8KV
|
|
MTBF (hours)
|
• >50 000
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|

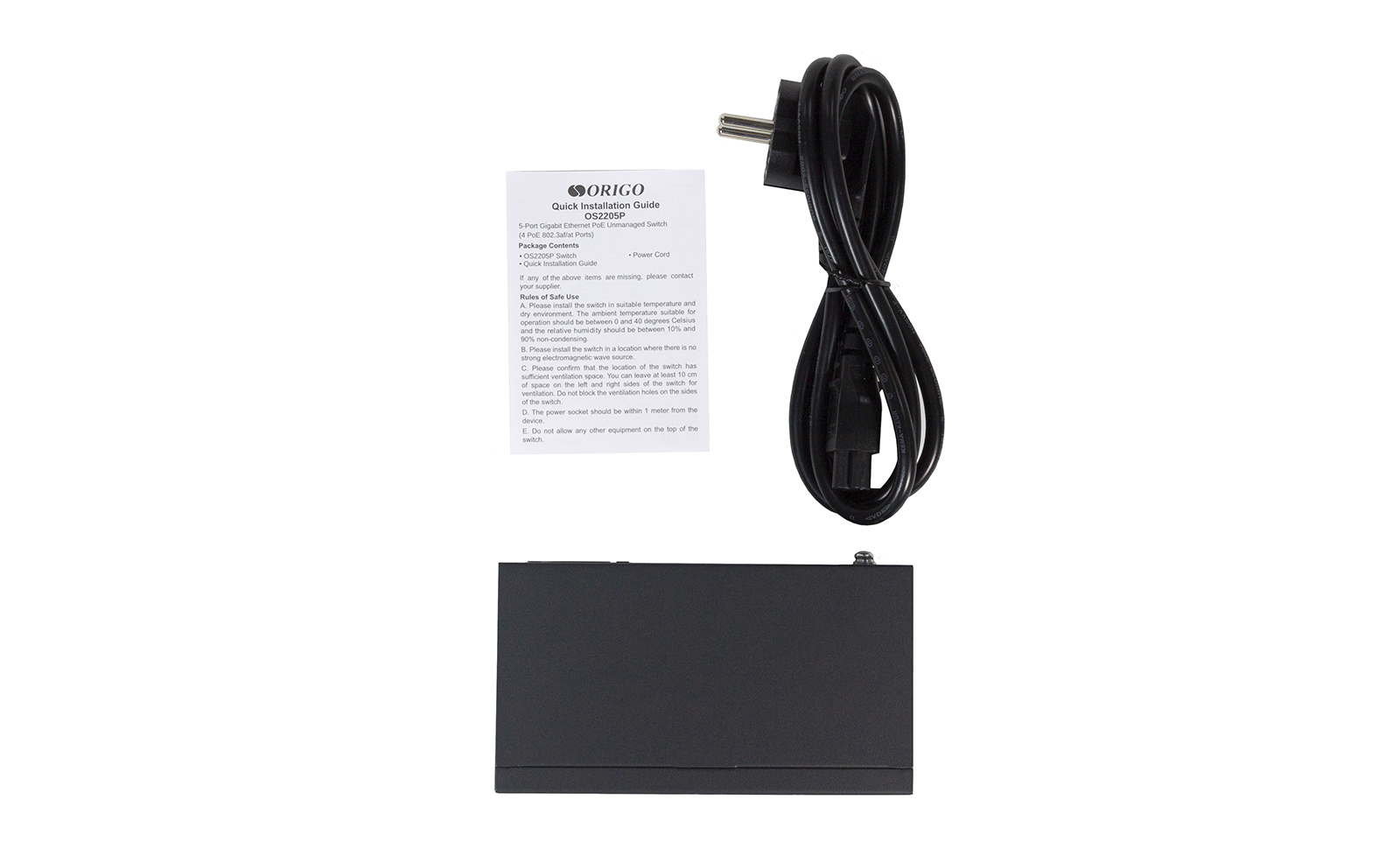

Package Contents
|
|
|
Package Contents
|
• OS2205P/60W Switch
• Power Cord
• Quick Installation Guide
|
1Data and power transmission over distances of up to 250 m is possible with a switch port speed limited to 10 Mbps. The connected device should also support speeds of up to 10 Mbps.
