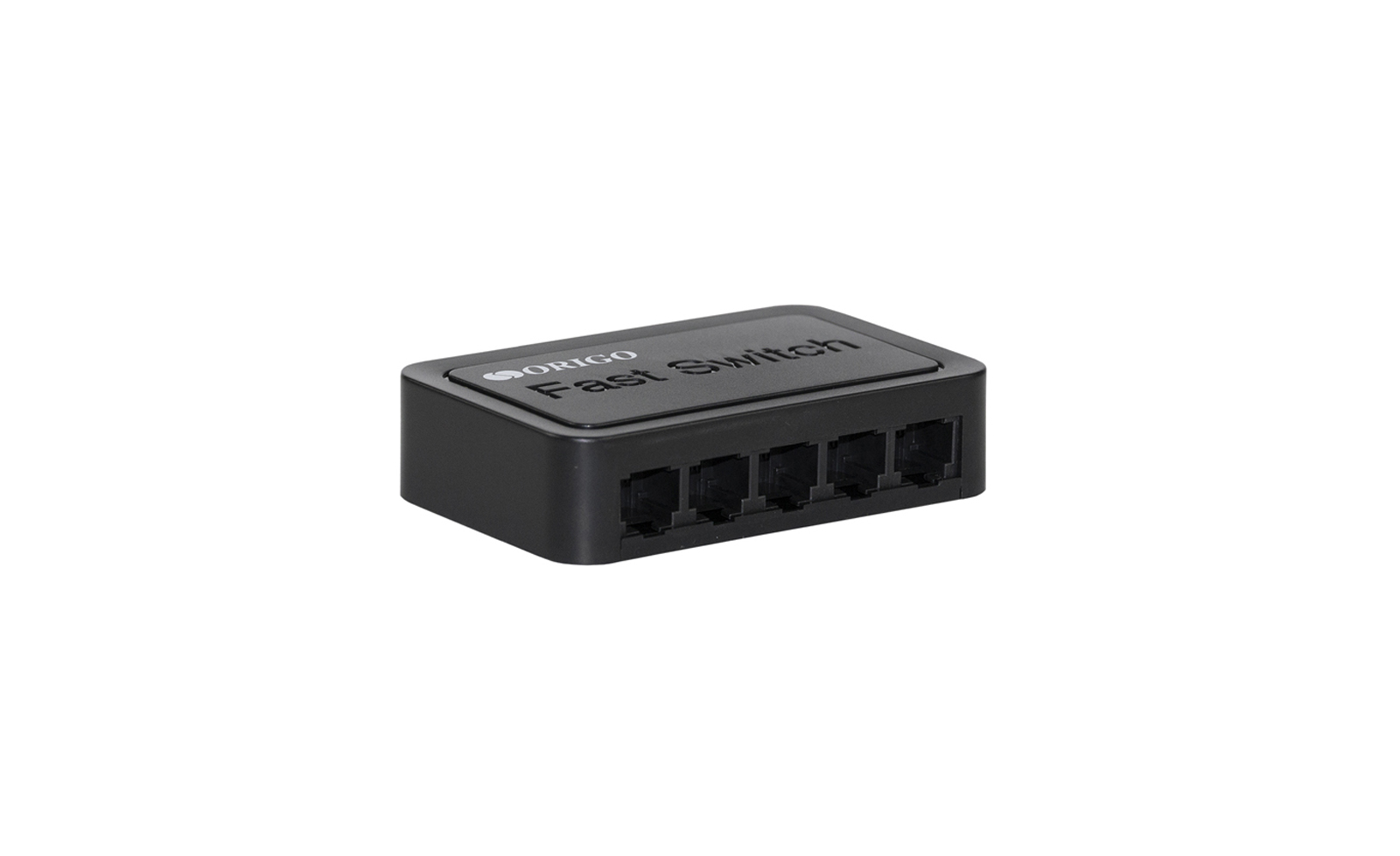

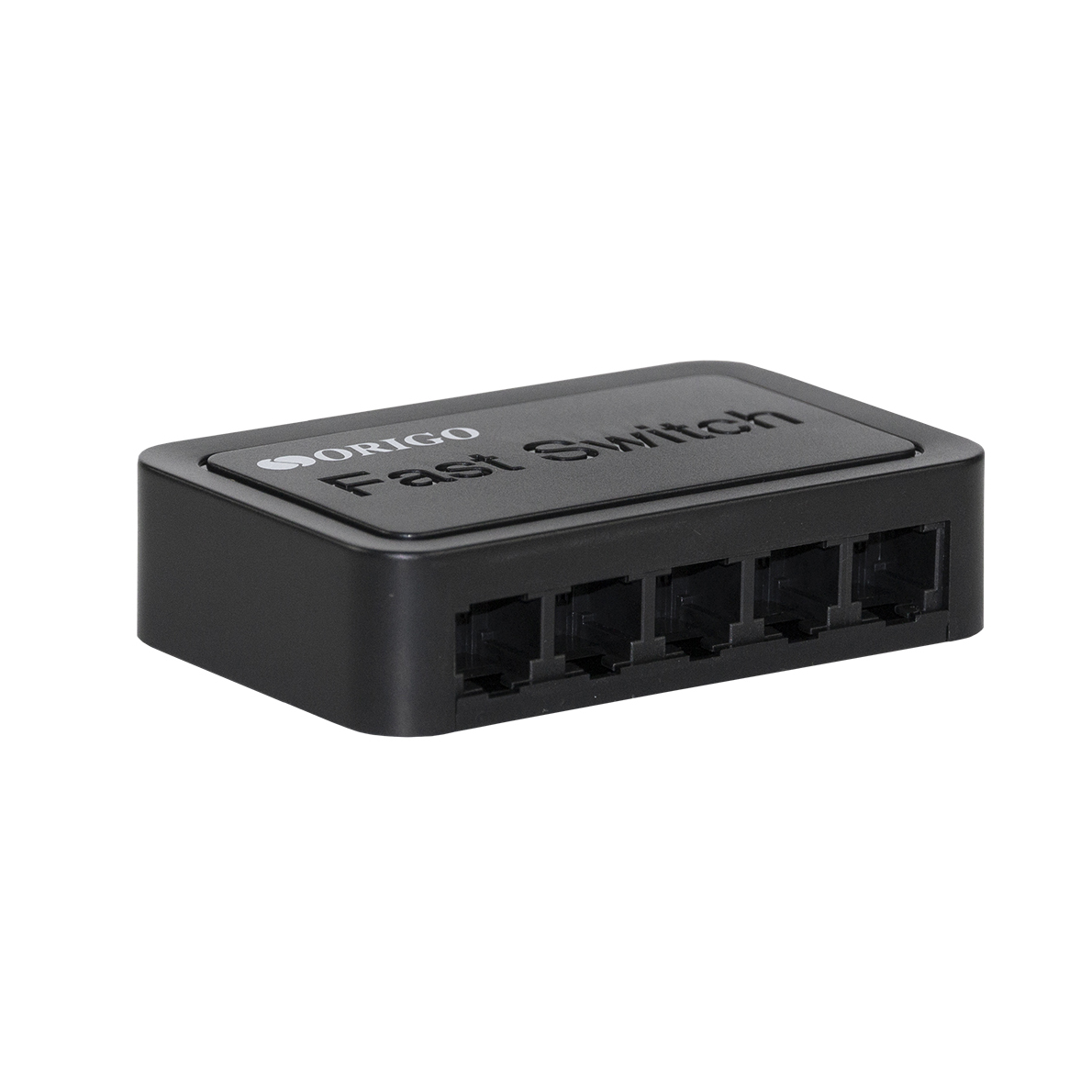

OS1105
Switch 5x100Base-TX, plastic casing

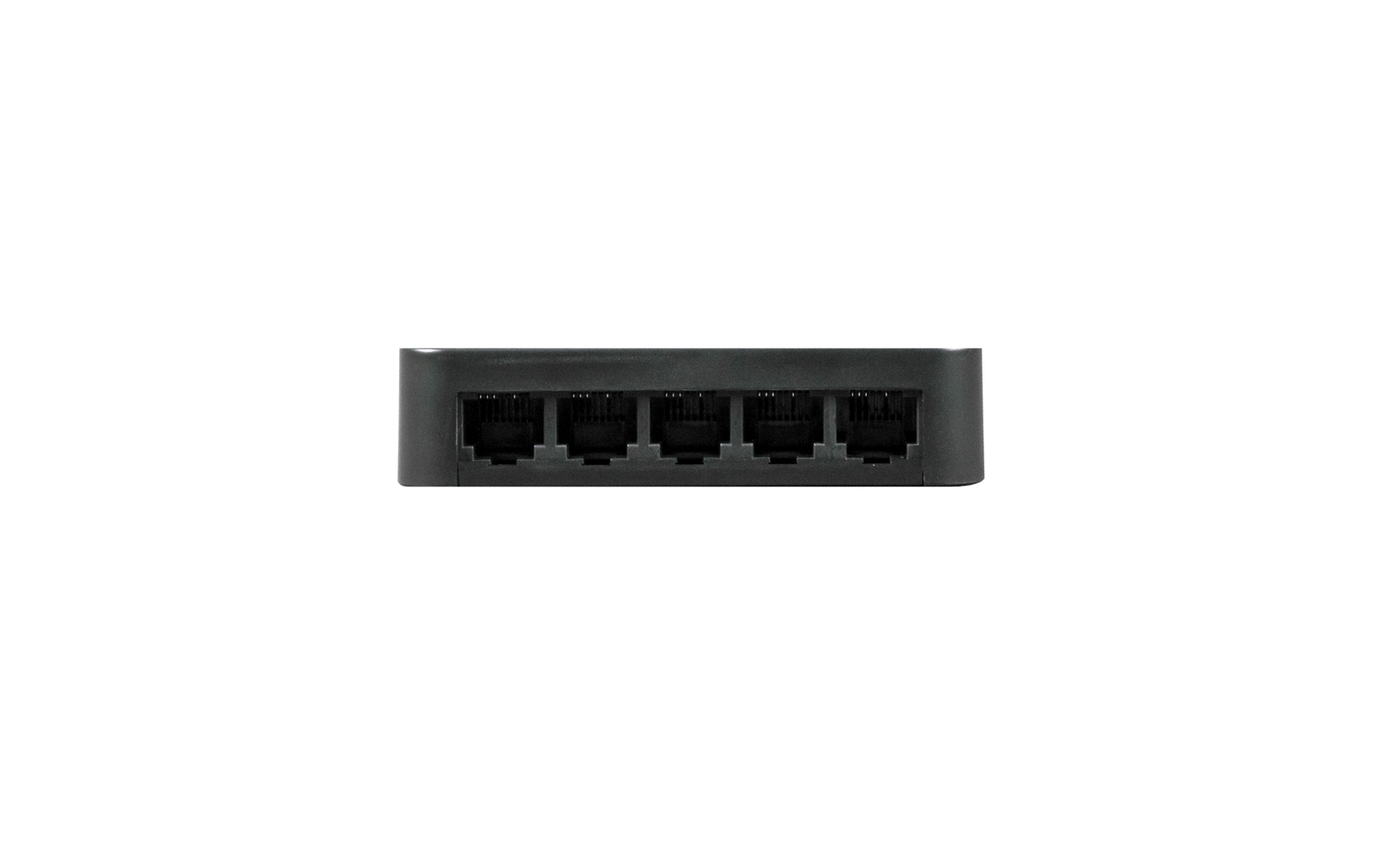

- 5 x 10/100 Mbps (RJ-45) ports with auto speed negotiation
- Auto MDI/MDIX adjustment
- IEEE 802.3x Flow Control
- Energy Saving function
- 88 x 53 x 22 mm compact desktop design
- Noise-free operation
- No configuration required
Description
OS1105 is a switch with 5 x 10/100 Mbps ports in compact casing for desktop installation.
The ORIGO OS1105 switch is a simple and affordable solution for extending home wired network and connecting small workgroups in offices, educational and medical facilities.
The OS1105 switch requires no configuration and is ready for operation immediately after connecting power.
The switch selects maximum possible connection speed for connected device automatically and activates duplex mode.
Auto MDI/MDIX adjustment allows the switch to adapt to any type of Ethernet cable – straight-through or crossover.
The fanless ventilation system provides noise-free operation of the switch.
Specification
|
Hardware
|
|
|
Chipset
|
• IP175G
|
|
Interfaces
|
• 5 x 10/100Base-TX (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Automatic negotiation of speed and duplex mode
• Auto MDI/MDIX adjustment
|
|
Data Rate
|
• Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
• Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
|
|
LEDs
|
• Power
- On – Power on state
- Off – Power off state
• Link/Act (ports 1 – 5)
- Always bright – Terminal device connected
- Blinking – Data pass
- Off – No connection
|
|
Power
|

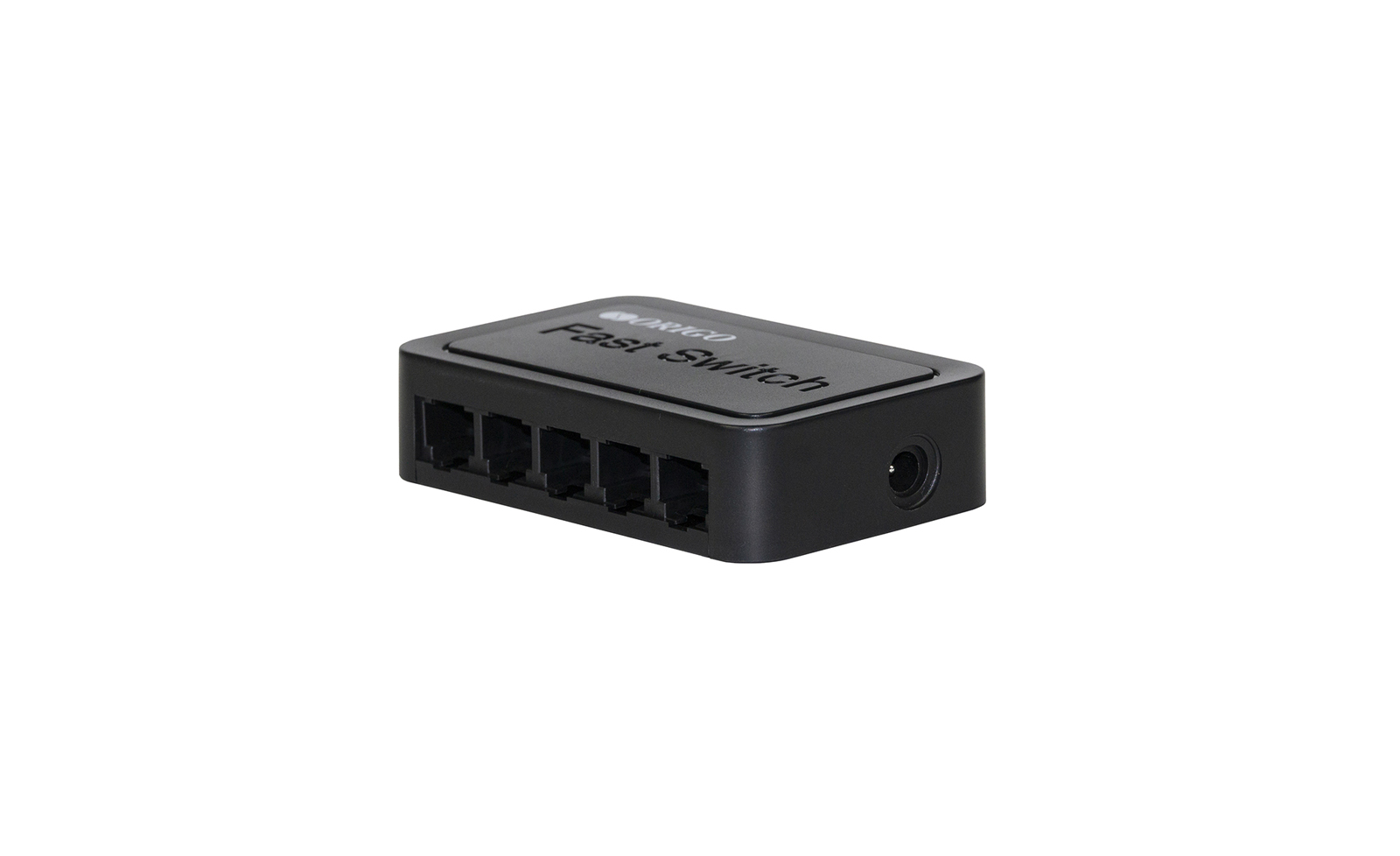

• Connector for connecting the DC power adapter
|
|
Ventilation System
|
• Fanless
|
|
Casing
|
• Plastic
|
|
Mounting
|
• Desktop
|
|
Performance
|
|
|
Switching Capacity
|
• 1 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 1K entries
|
|
Packet Forwarding Rate
|
• 744 Kpps
|
|
Packet Buffer
|
• 56 KB
|
|
Jumbo Frame
|
• 1532 bytes
|
|
Physical Parameters
|
|
|
Dimensions (W × D × H)
|
• 88 x 53 x 22 mm
|
|
Weight
|
• 50 g
|
|
Package Dimensions
|
• 11 х 7.9 х 6.2 cm
|
|
Gross Weight
|
• 0.15 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• Power adapter:
- Input: 100-240 V AC, 50/60 Hz
- Output: 5 V DC, 0.55 A
|
|
Power Consumption
|
• 1.3 W
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

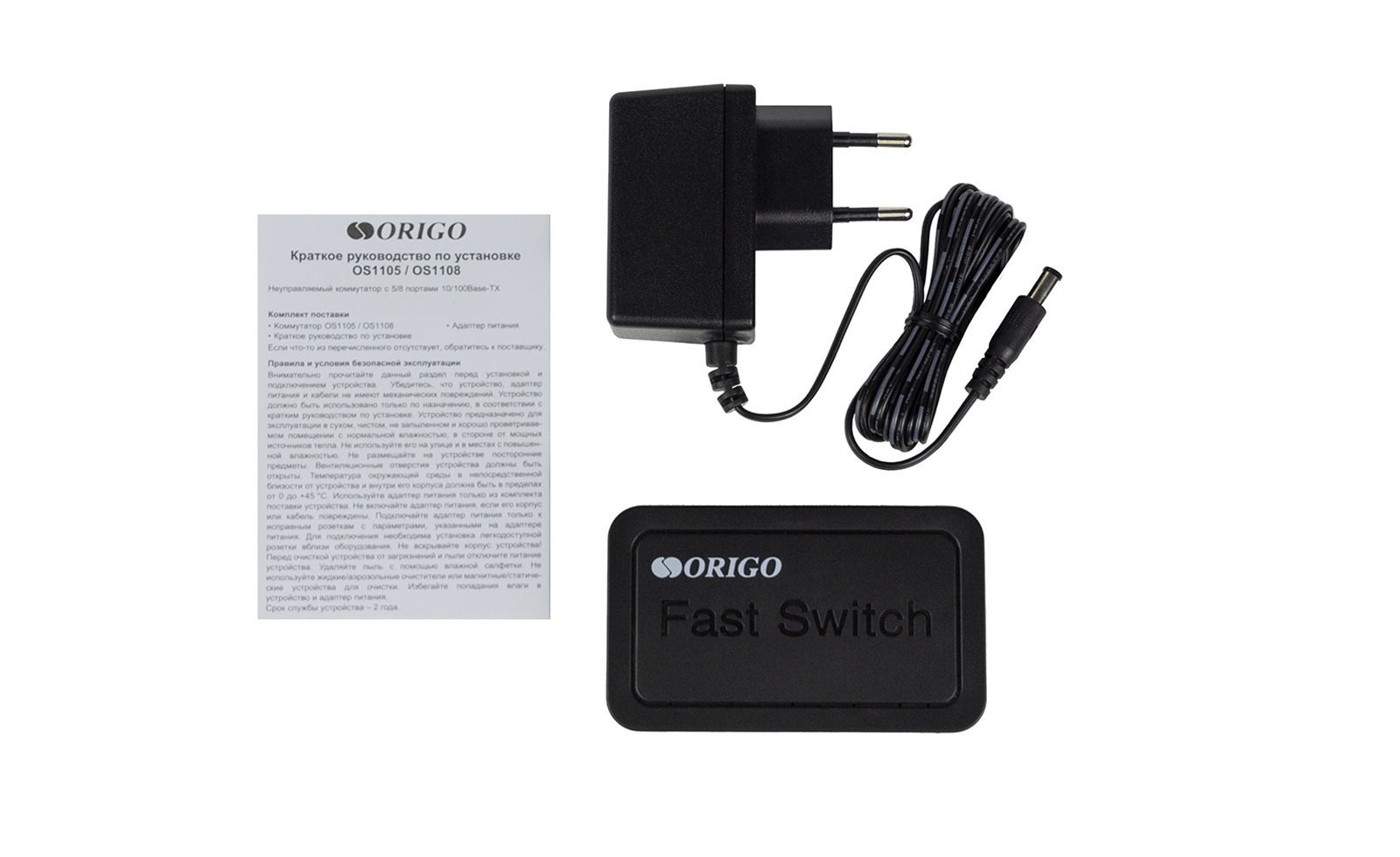

Package Contents
|
|
|
Package Contents
|
• OS1105 Switch
• Power Adapter
• Quick Installation Guide
|
