OI3106
Industrial Managed L2 Switch
4×1000Base-T, 2×100/1000Base-X SFP, DIP switch
- 4×10/100/1000Base-T ports
- 2x100/1000Base-X SFP ports
- Dual redundant 12–55 V DC power inputs
- Alarm relay output (dry contact)
- DIP switches for quick activation of ERPS and storm control
- Surge protection up to 4 kV; ESD protection up to 8 kV
- Operating temperature range: -40 to +75 °C
- Rugged metal housing with IP40 protection; DIN-rail mountable
- Advanced L2 features with support for static routing
- Management via web interface, Telnet, SSH, console, and SNMP
Description
The ORIGO OI3106 Industrial Managed L2 Switch is equipped with 4 Gigabit RJ-45 ports and 2×100/1000Base-X SFP1 ports.
The ORIGO OI3106 switch is designed for building secure and fault-tolerant data transmission networks at sites with strict environmental requirements.
The ORIGO OI3106 switch operates within a wide temperature range from –40 to +75 °C and supports the connection of two independent DC power supplies with redundancy capability, such as the OI75WPSU, OI120WPSU, or OI240WPSU. It is resistant to vibration and electrostatic discharges up to 8 kV. The rugged metal casing with IP40 protection and a reliable fanless ventilation system ensure stable operation in stringent industrial environments.
The ORIGO OI3106 switch’s features include support for static routing, virtual local area networks (VLANs), quality of service (QoS), multicast management, security functions, and user access control.
To enhance network performance and fault tolerance, the switch supports link aggregation (LACP), connection redundancy through STP/RSTP/MSTP protocols, and LoopBack Detection for preventing network loops. SCP and Fast Ring DIP switches allow to quickly activate broadcast storm control and ERPS function, ensuring minimal recovery time in case of a line failure within the ring.
1To establish a 100 Mbps connection, the interface must be configured to 100Base-FX full-duplex mode.
Specification
|
Hardware
|
|
|
CPU and Memory
|
• CPU: RTL8380MI
• RAM: 128 MB
• Flash: 32 MB
|
|
Interfaces
|
• 4×10/100/1000-T (RJ-45) ports
• 2×100/1000Base-X SFP1 ports

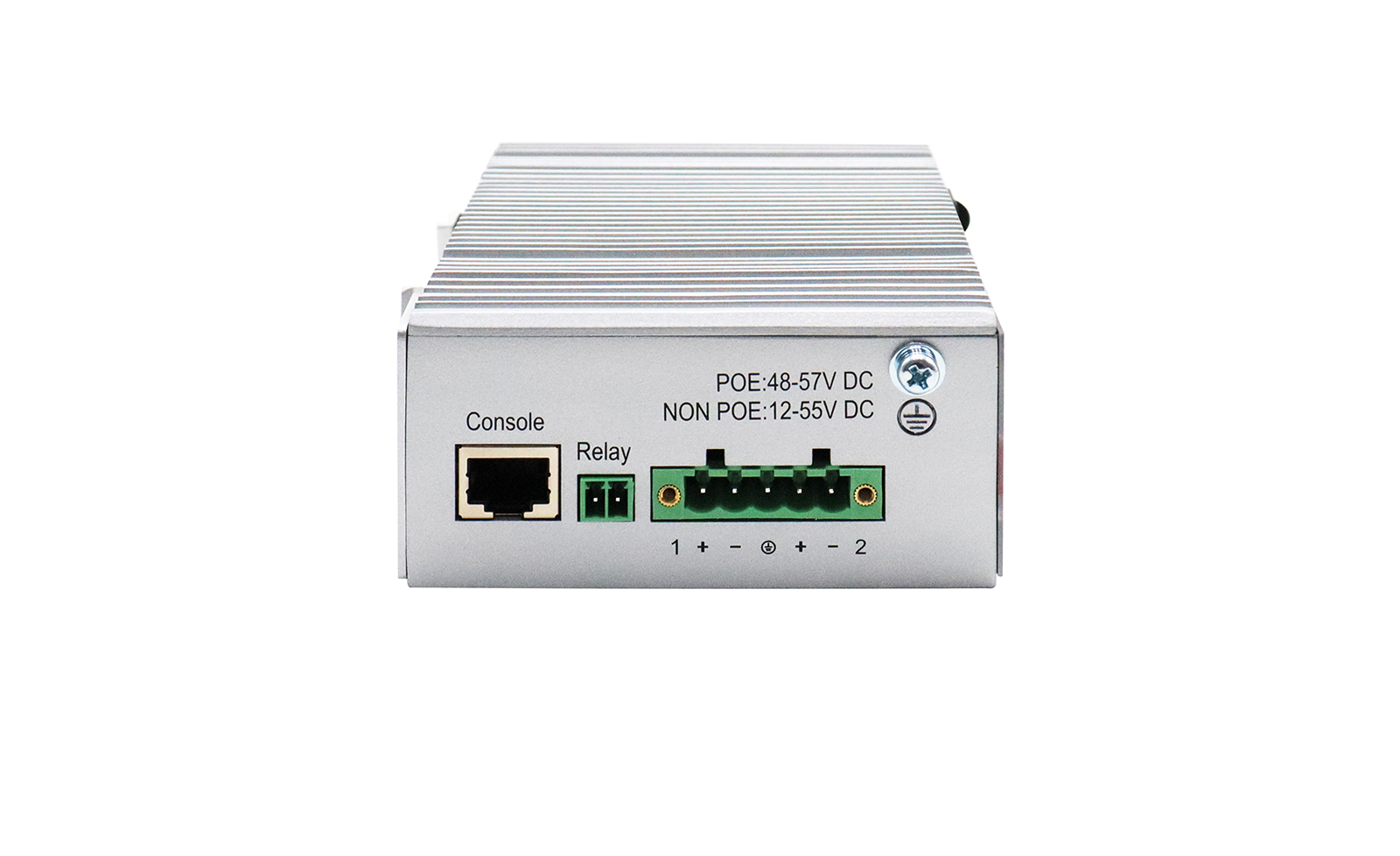

• RJ-45 console port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3u 100Base-FX
• IEEE 802.3z 1000Base-X
• IEEE 802.3x Full Duplex Flow Control
• IEEE 802.3az Energy-Efficient Ethernet
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• Power
- On: Power on state
- Off: Power off state
• Link/Act (Ports 1 – 6)
- Always bright: terminal device is connected
- Blinking: Data transmission in progress
- Off: No connection
• SYS
- Blinking: System operating normally
- Off: System is booting or a fault has occurred
|
|
DIP Switches
|
• Fast Ring (ON) to switch on / off ERPS
• SCP (ON) to switch on / off Broadcast Storm Control
|
|
Alarm Relay
|
• One relay output (dry contact) for power failure notification
• Relay contact load capacity:
- 2А at 30V DC
- 0,5А at 125V DC
|
|
Power
|
• DC: terminal block for connection of up to two independent power sources (12 to 55 V DC)
|
|
Ventilation System
|
• Fanless
|
|
Casing
|
• Metal
• IP40-rated
|
|

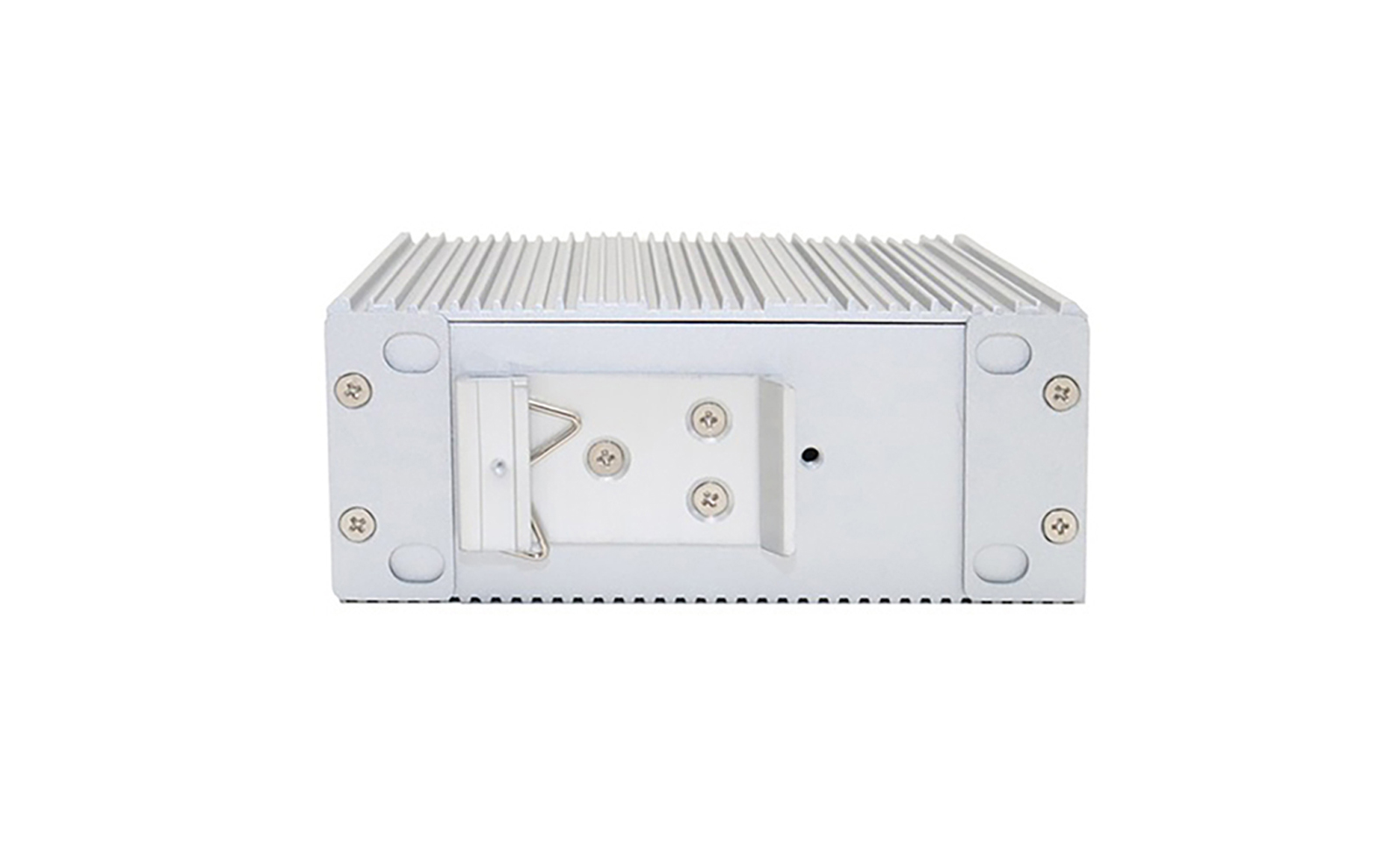

Mounting
|
• Wall
• DIN-rail
|
|
Capacity
|
|
|
Switching Capacity
|
• 12 Gbps
|
|
Packet Forwarding Rate
|
• 8.92 Mpps
|
|
Packet Buffer
|
• 512 KB
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table Size
|
• 8К entries
|
|
Routing Table Size
|
• 512 entries (IPv4/IPv6)
|
|
L3 Forwarding Table
|
• 512 entries (IPv4/IPv6)
|
|
Jumbo Frame
|
• 9 216 bytes
|
|
Software Features
|
|
|
L2 Features
|
• Flow Control
• Link Aggregation
- Static
- 802.3ad
- Up to 8 groups per device / up to 8 ports per group
• Load Balance
- src-mac
- dst-mac
- src-ip
- dst-ip
• Loopback Detection
• ERPS
• MRPP
• ULPP
• ULSM
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (64 instances)
- Root Guard (Restriction)
- BPDU Guard (Restriction)
• LLDP
• LLDP-MED
• Port mirroring
- One-to-One
- Many-to-One
- Flow-based
- CPU-based
- Ingress, egress, both
- RSPAN
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Subnet-based VLAN
• Private VLAN
• VLAN Filtering
• Voice VLAN
• GVRP
• GMRP
• Double VLAN (Q-in-Q)
- Selective Q-in-Q
- Port-based Q-in-Q
• VLAN Translation
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- Supports up to 512 groups
- IGMP Snooping Fast Leave
- IGMP Proxy
• MLD Snooping
- MLD v1/v2
- Supports up to 512 groups
• Multicast Source/Destination (DCSCM)
|
|
L3 Features
|
• Maximum number of IP interfaces: 16
• 8K ARP entries
• Static routing
- 512 IPv4 routes
- 512 IPv6 routes
• Gratuitous ARP
|
|
QoS
|
• 802.1p
• CoS based on:
- DSCP
- VLAN ID
- IP Precedence
- IP ACL/ MAC ACL/ IPv6 ACL
- IPv6 Flow Labels
• Queue handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Deficit Round Robin (WDRR)
• Port-based bandwidth control
• 8 egress queues per port
|
|
Security
|
• Port Security
- Supports up to 8K MAC addresses per port
• Port Isolation
• Storm Control
• Dynamic ARP Inspection
• ARP Spoofing Protection
• ARP Scanning Prevention
• ARP Guard
• oS Attack Prevention
• DHCP Snooping
• DHCPv6 Snooping
• IPv6 SAVI
• Security RA
• CPU Protection
|
|
AAA
|
• 802.1X Authentication:
- Port-Based
- MAC-Based
• Guest VLAN
• IPv6 RADIUS Server
• RADIUS/TACACS+ Authentication
|
|
Access Control Lists (ACL)
|
• 1.5K ACL entries
• ACL based on:
- VLAN
- MAC address
- IPv4 address
- DSCP
- ToS
- TCP/UDP port number
- User-defined ACL
• Time-based ACLs
|
|
OAM
|
• Cable diagnostics
• ULDP (Unidirectional Link Detection Protocol)
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• DDM (Digital Diagnostics Monitoring)
|
|
Management
|
• Web-based UI
• CLI
• Telnet
• SSH
• FTP
• TFTP
• System Log
• SNMP v1/v2c/v3
• SNMP Traps
• SNTP
• NTP
• Firmware Backup/Upgrade
• Ping/Traceroute for IPv4/IPv6
• DHCP- Server
• DHCPv6- Server
• BootP/DHCP- Client
• DHCP Relay
• DHCPv6 Relay
• DHCP Option 82, 43, 60, 61, 67
• IPv4/IPv6 DNS-Client
|
|
Physical Parameters
|
|
|
Dimensions
(W × D × H)
|
• 110 x 90 x 46 mm
|
|
Weight
|
• 0.4 kg
|
|
Package Dimensions
|
• 23.4 x 19 x 8.6 cm
|
|
Gross Weight
|
• 0.68 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• 12-55 V DC
|
|
Current Consumption
|
• 0.75 А (max.)
|
|
Maximum Power Consumption
|
• 7.81 W
|
|
Standby Power Consumption
|
• 2.81 W
|
|
MTBF (hours)
|
• > 100 000
|
|
Surge Protection
|
• ± 4 kV (common mode)
• ± 2 kV (differential mode)
|
|
Electrostatic Discharge (ESD) Protection
|
• Contact discharge: ± 6 kV
• Air discharge: ± 8 kV
|
|
Temperature
|
• Operating: -40 to 75 °C
• Storage: -40 to 80 °C
|
|
Humidity
|
• Operating: 5% to 95% (non-condensing)
• Storage: 0% to 95% (non-condensing)
|
|
Package Contents
|
|
|

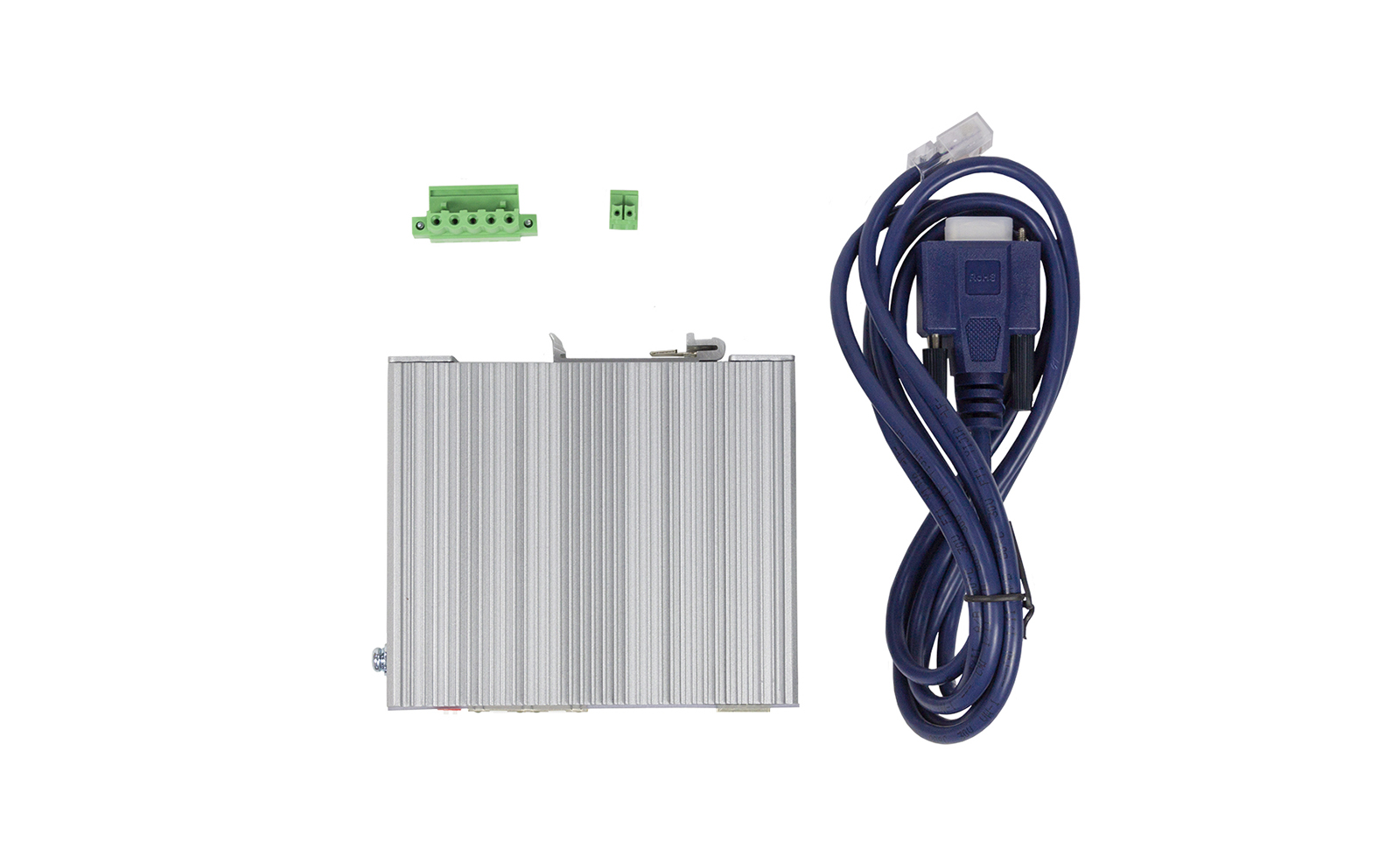

Package Contents
|
• OI3106 Switch
• RJ-45 Console Cable
• Quick Installation Guide
|
|
Optional Accessories
|
|
|
Power Supplies
|
• OI240WPSU
• OI120WPSU
• OI75WPSU
|
|
Industrial SFP Transceivers
|
• OFMS310LX
|
|
SFP Transceivers
|
• OFM211LC
• OFM310GT
• OFM311GT
• OFM314GT
|
|
WDM SFP Transceivers
|
• OFM330R/3KM
• OFM330T/3KM
• OFM330R/10KM
• OFM330T/10KM
• OFM331R/20KM
• OFM331T/20KM
|
1To establish a 100 Mbps connection, the interface must be configured to 100Base-FX full-duplex mode.
Order Info
OFMS310LX
OFM314GT
Short-distance operation requires an attenuator (not included).
OFM330T/3KM/A1
OFM330R/3KM/A1
OFM330T/3KM/B1
OFM330R/3KM/B1
OFM330T/10KM
OFM330R/10KM
OFM331T/20KM
