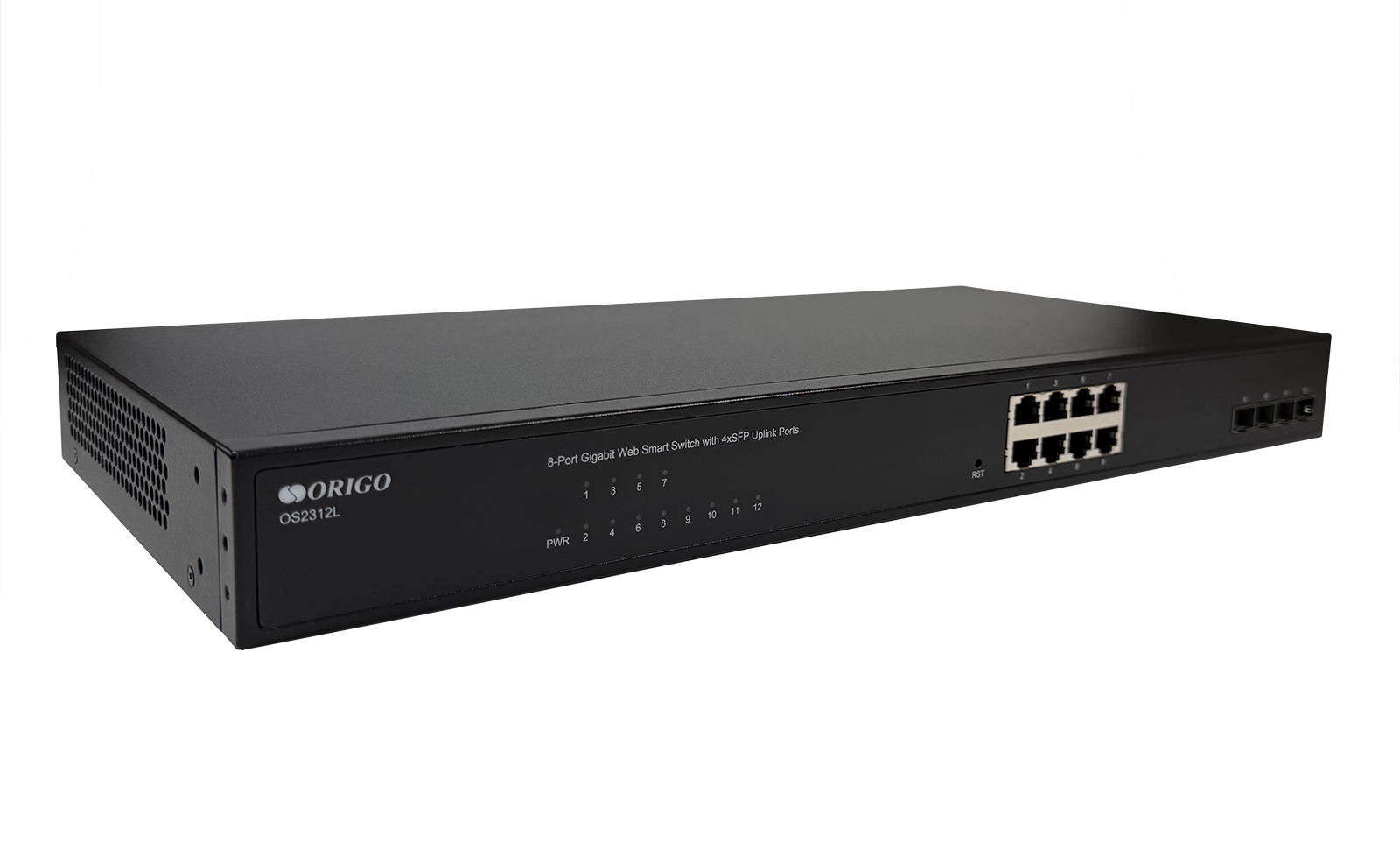

OS2312L
Web Smart L2 Switch, 8x1000Base-T,
4x100/1000Base-X SFP
- 8x10/100/1000Base-T ports
- 4x100/1000Base-X SFP ports
- 802.1Q VLAN, QoS, IGMP Snooping
- Loopback Detection
- Access Control Lists (ACL)
- Web management
- Fanless
- 19” rack mountable, the mounting kit is included
Description
OS2312L is a Web smart L2 switch with 8x10/100/1000Base-T ports and 4x100/1000Base-X SFP ports.
The ORIGO OS2312L switch is recommended for small and medium business networks, budget organizations and educational institutions that require a reliable and simple gigabit solution with Web management functions.
The OS2312L supports traffic separation using 802.1Q VLAN, Loopback Detection, Port mirroring, Access Control Lists (ACL), IGMP Snooping, and QoS for prioritization of latency-sensitive traffic.
Specification
|
Hardware
|
|
|
CPU and Memory
|
• CPU: CTC2118C
• SRAM: 192 KB
• Flash: 16 MB
|
|

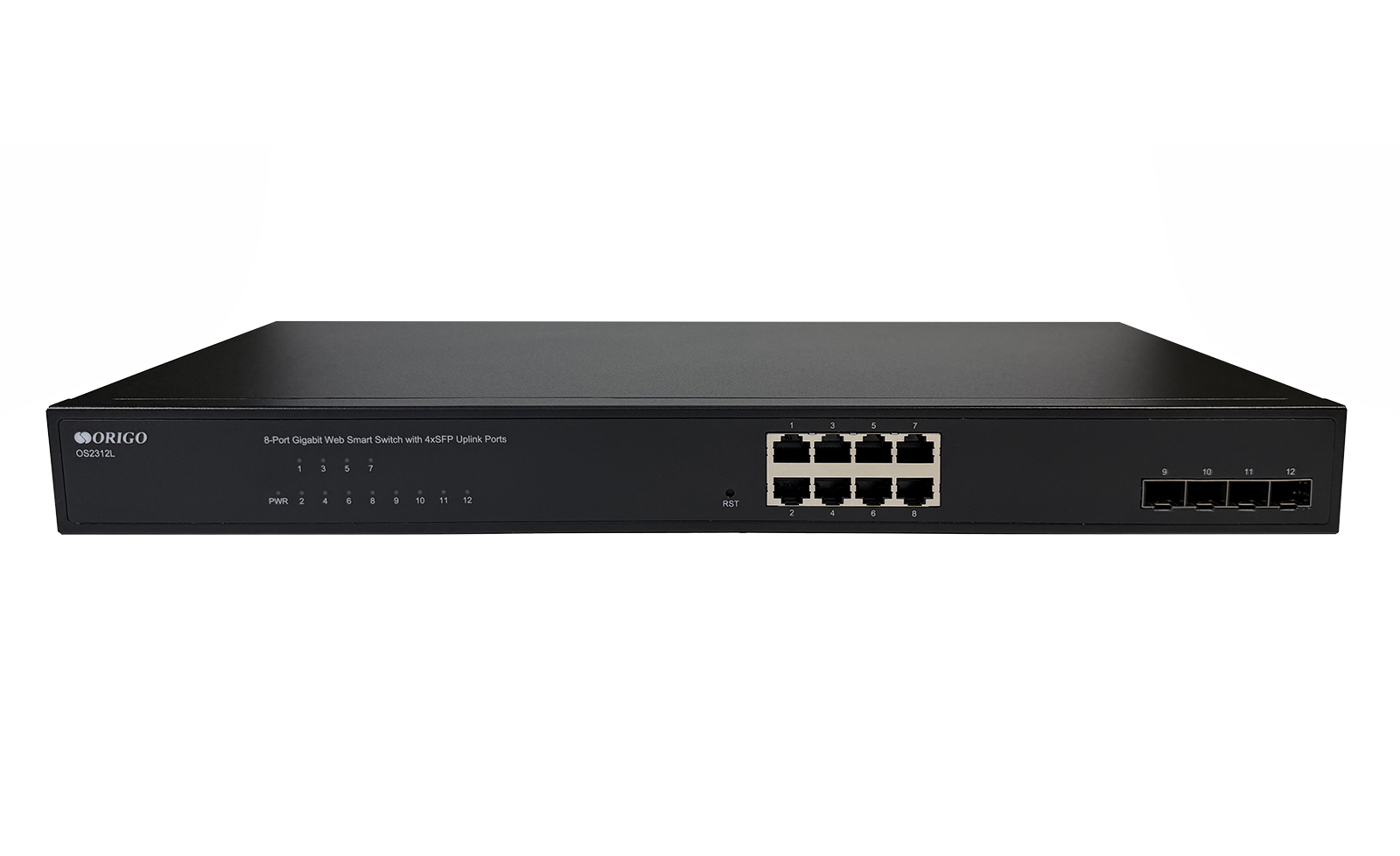

Interfaces
|
• 8x10/100/1000Base-T (RJ-45) ports
• 4x1000Base-X SFP ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3u 100Base-FX
• IEEE 802.3z 1000Base-X
• IEEE 802.3x (Flow Control)
• Auto-negotiation of speed and duplex mode
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• Power
- Always bright green – Power on state
- Off – Power off state
• Link/Act (ports 1 – 12)
- Always bright green – Terminal device is connected at 1000 Mbps
- Blinking green – Data pass
- Always bright orange – Terminal device is connected at 100 Mbps
- Blinking orange - Data pass
- Off – No connection
|
|
Buttons
|
• Reset
|
|
Ventilation
|
• Fanless
|
|

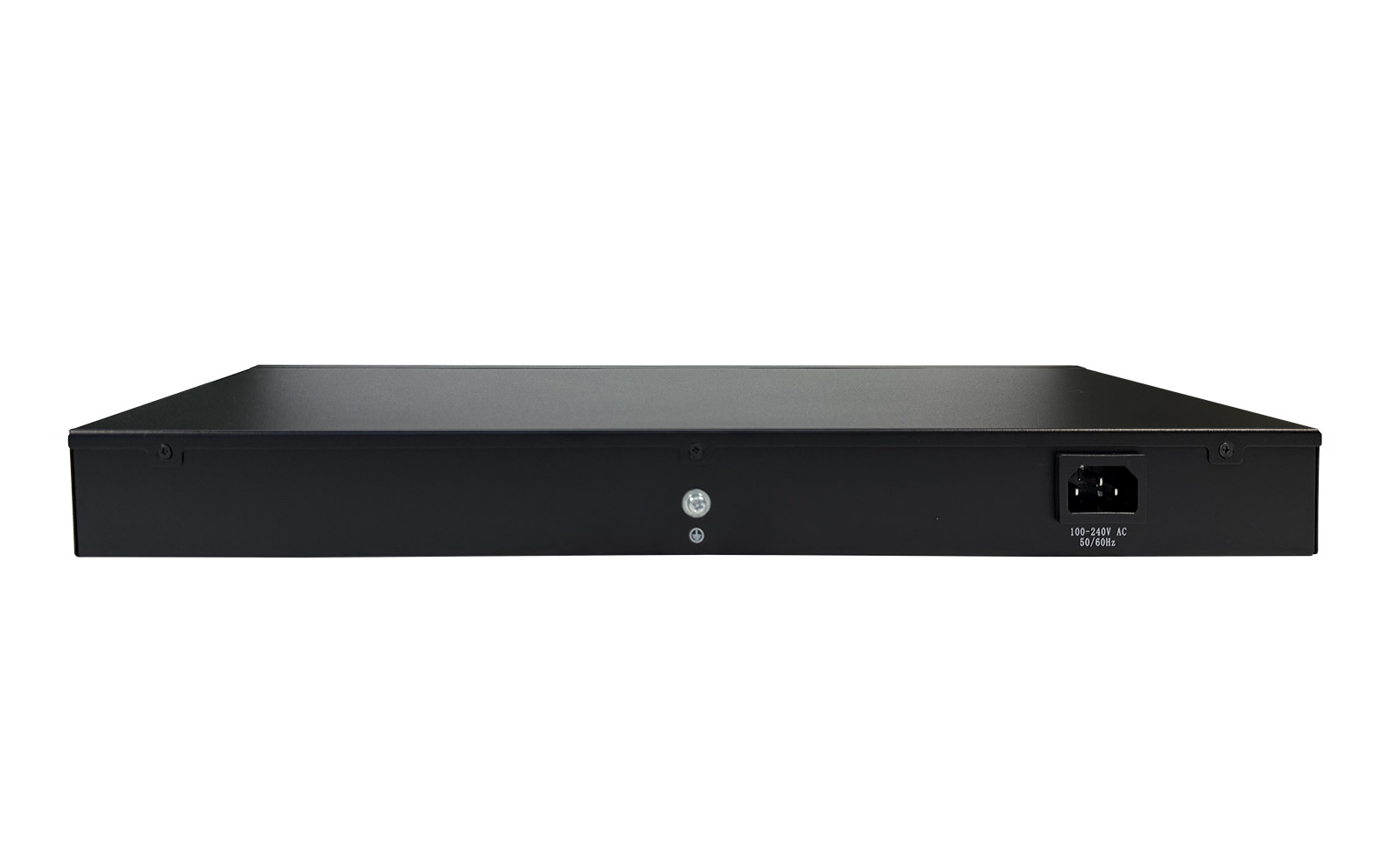

Power
|
• Power connector (AC)
|
|
Housing
|
• Metal
|
|
Mounting
|
• Desktop
• 19'' rack
|
|
Performance
|
|
|
Switching Capacity
|
• 24 Gbps
|
|
Packet Forwarding Rate
|
• 17.86 Mpps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8К entries
|
|
Packet Buffer
|
• 384 KB
|
|
Jumbo Frame
|
• 9 600 bytes
|
|
Software
|
|
|
L2 Features
|
• Port mirroring
- One-to-One
- Many-to-One
- Flow-based
• Loopback Detection
• LLDP
• IGMP Snooping
- IGMP v1/v2
|
|
VLAN
|
• Port-based VLAN
• MAC-based VLAN
• 802.1Q tagged VLAN
|
|
QoS
|
• 802.1p
• Queue handling
- Strict Priority (SP)
- Weighted Deficit Round Robin (WDRR)
• Supports up to 8 queues per port
• CoS based on:
- DSCP
|
|
Security
|
• Static MAC addresses
• ACL based on:
- MAC address
- IP address
- TCP/UDP port number
|
|
Management
|
• Web-based UI
|
|
Physical Parameters
|
|
Dimensions (L x W x H) |
• 440 x 208 x 44 mm |
Weight |
• 1.92 kg |
Package Dimensions |
• 54.5 х 9 х 35 cm |
Gross Weight |
• 2.66 kg |
|
Operating Conditions
|
|
|
Power Input
|
• 100-240 V AC, 50/60 Hz
• Power cord length: 1.4 m
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

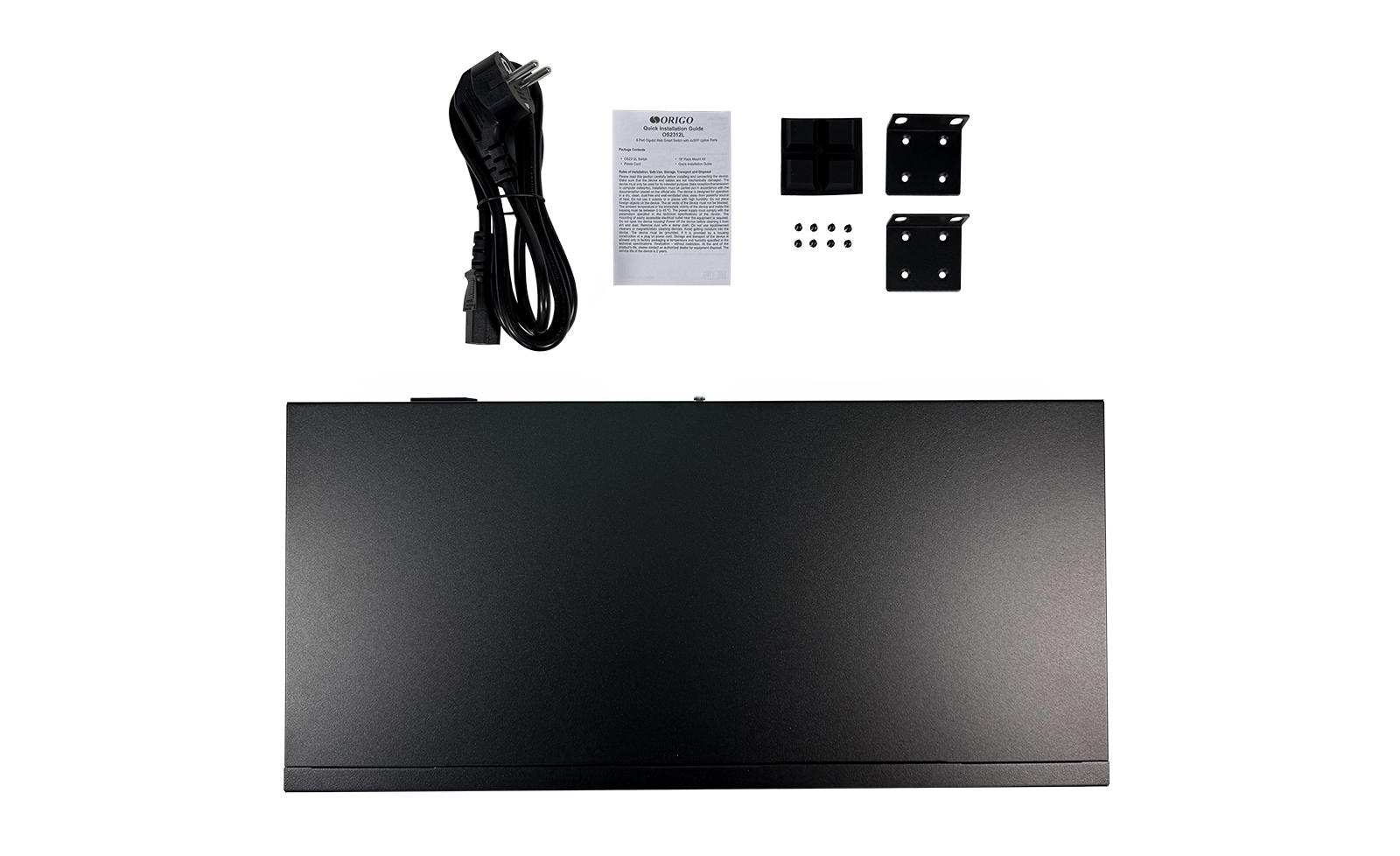

Package Contents
|
|
|
Package Contents
|
• OS2312L Switch
• Power Cord (1.4 m)
• Rack Mount Kit
• Quick Installation Guide
|
