OS6226/DCPSU
DC Power Supply for OS6226 Switch, 96W
- Compatible with OS6226 Switch
- Input Voltage: 36 – 72 V DC
- Output Power: 96 W
- Short circuit, over current, over voltage, and over temperature protection
- Can operate simultaneously with the OS6226/ACPSU power supply
Description

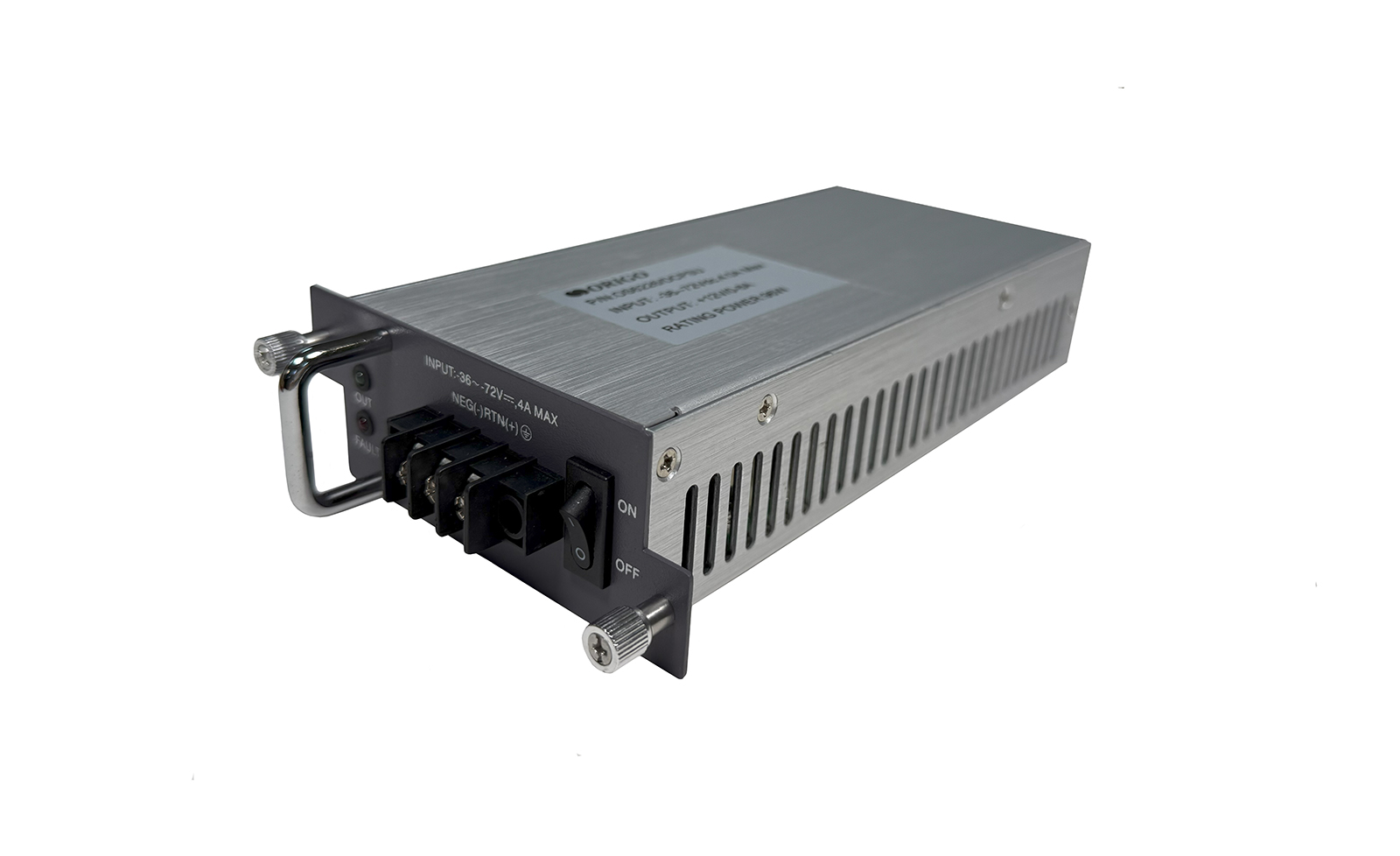

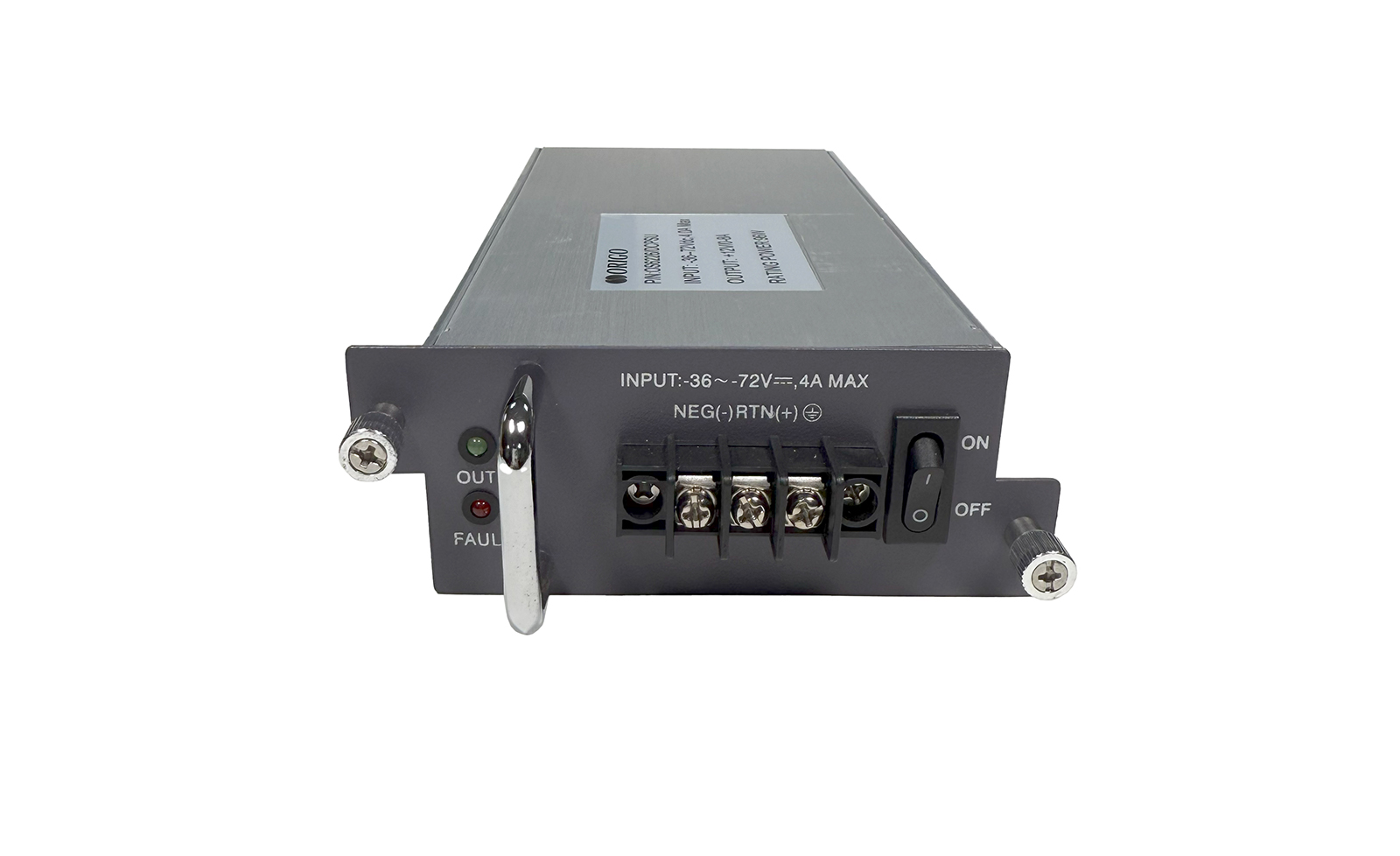

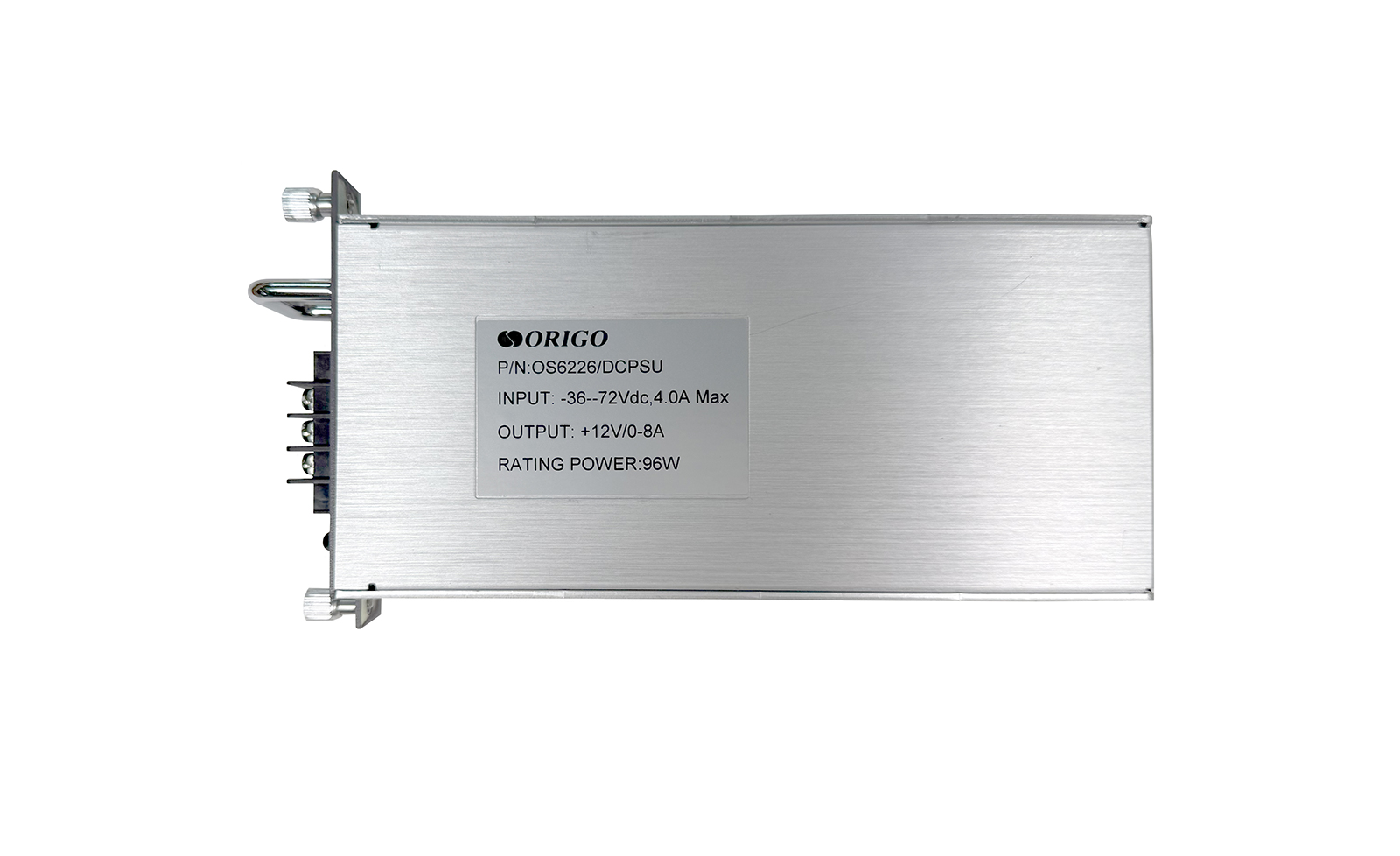

The ORIGO OS6226/DCPSU is a 96 W DC Power Supply for the OS6226 Switch.
Specification
|
Electrical Characteristics
|
|
|
Rated Input Voltage
|
• 36 – 72 V DC
|
|
Output Voltage
|
• 12 V DC
|
|
Output Power
|
• 96 W
|
|
Efficiency (48 V DC)
|
• ≥ 83%
|
|
Physical Parameters
|
|
|
Dimensions (L × W × H)
|
• 181.4 x 85 x 40 mm
|
|
Weight
|
• 600 g
|
|
Operating Conditions
|
|
|
MTBF
|
• ≥100 000 hours
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 95% (non-condensing)
• Storage: 10% to 95% (non-condensing)
|
|

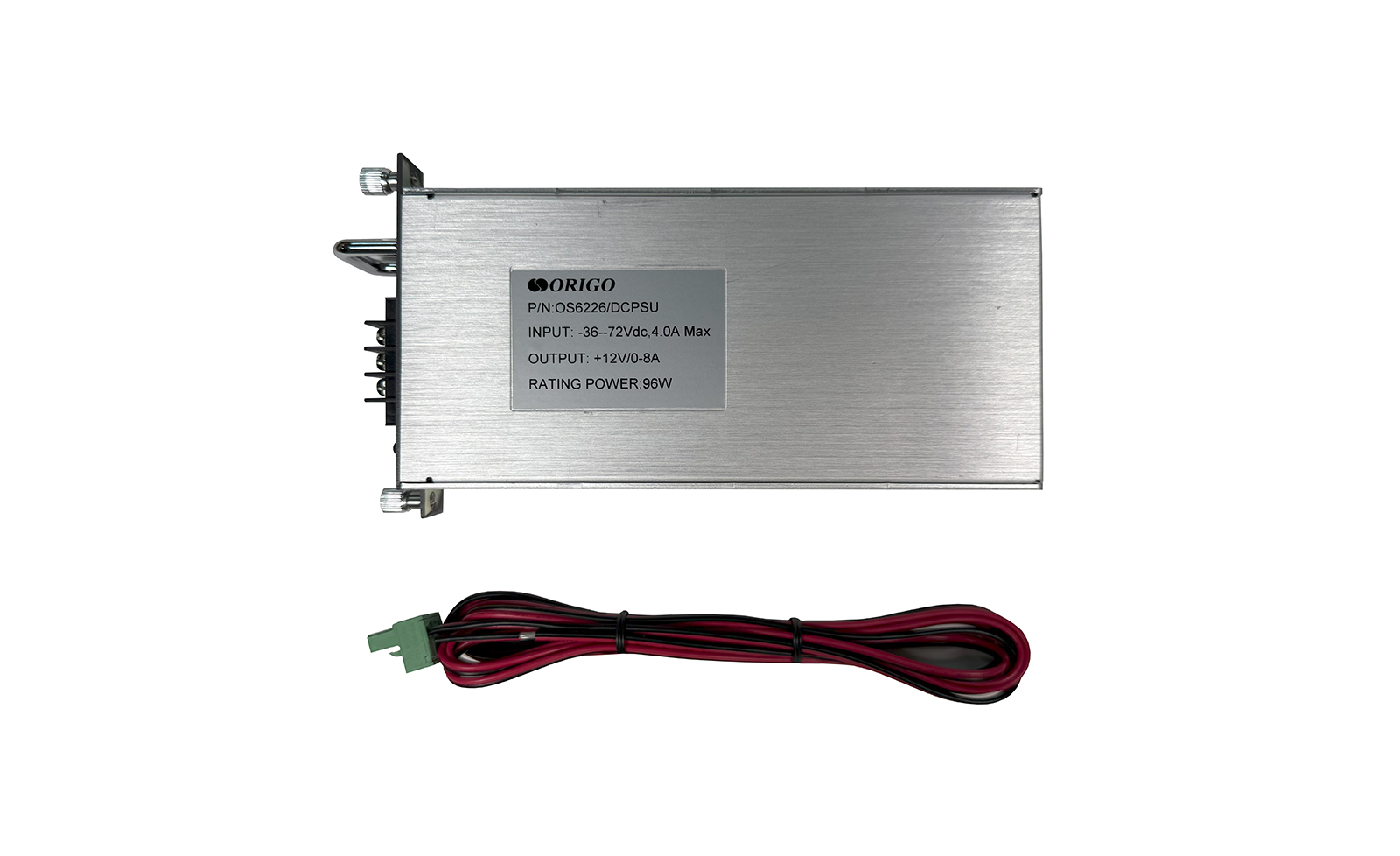

Package Contents
|
|
|
Package Contents
|
• Power Supply OS6226/DCPSU
• Wiring Kit with Terminal Block
|
|
Compatible Products
|
|
|
Switches
|
• OS6226
|
