OS3254M
Managed L3 Switch 24x1000Base-T, 24x100/1000Base-X SFP, 6x10G SFP+
- 24 x 10/100/1000Base-T (RJ-45) ports
- 24 x 100/1000Base-X SFP ports
- 6 x 10G SFP+ uplinks
- 2 hot-swappable AC power modules
- 3 fan modules with automatic speed control
- Built-in 6kV surge protection
- Dynamic routing: RIP, IS-IS, OSPF, BGP
- PIM-SM for multicast routing
- 802.1Q VLAN, Selective Q-in-Q, Multicast VLAN
- MLAG, ERPS, STP/RSTP/MSTP for high availability
- 802.1X authentication, ACL, IP Source Guard
- Management via Web UI, CLI (Telnet, SSH, Console), and SNMP
Description

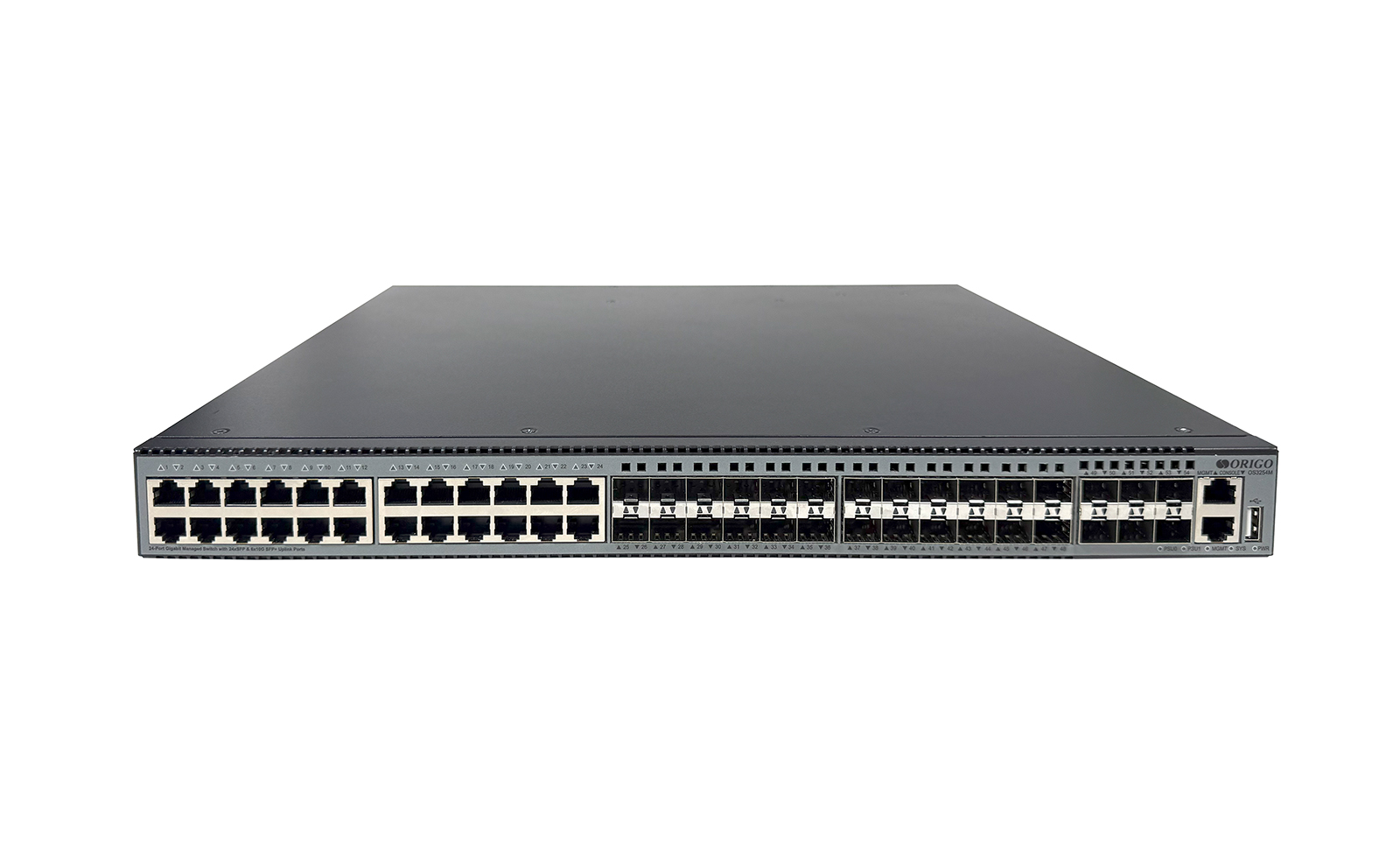

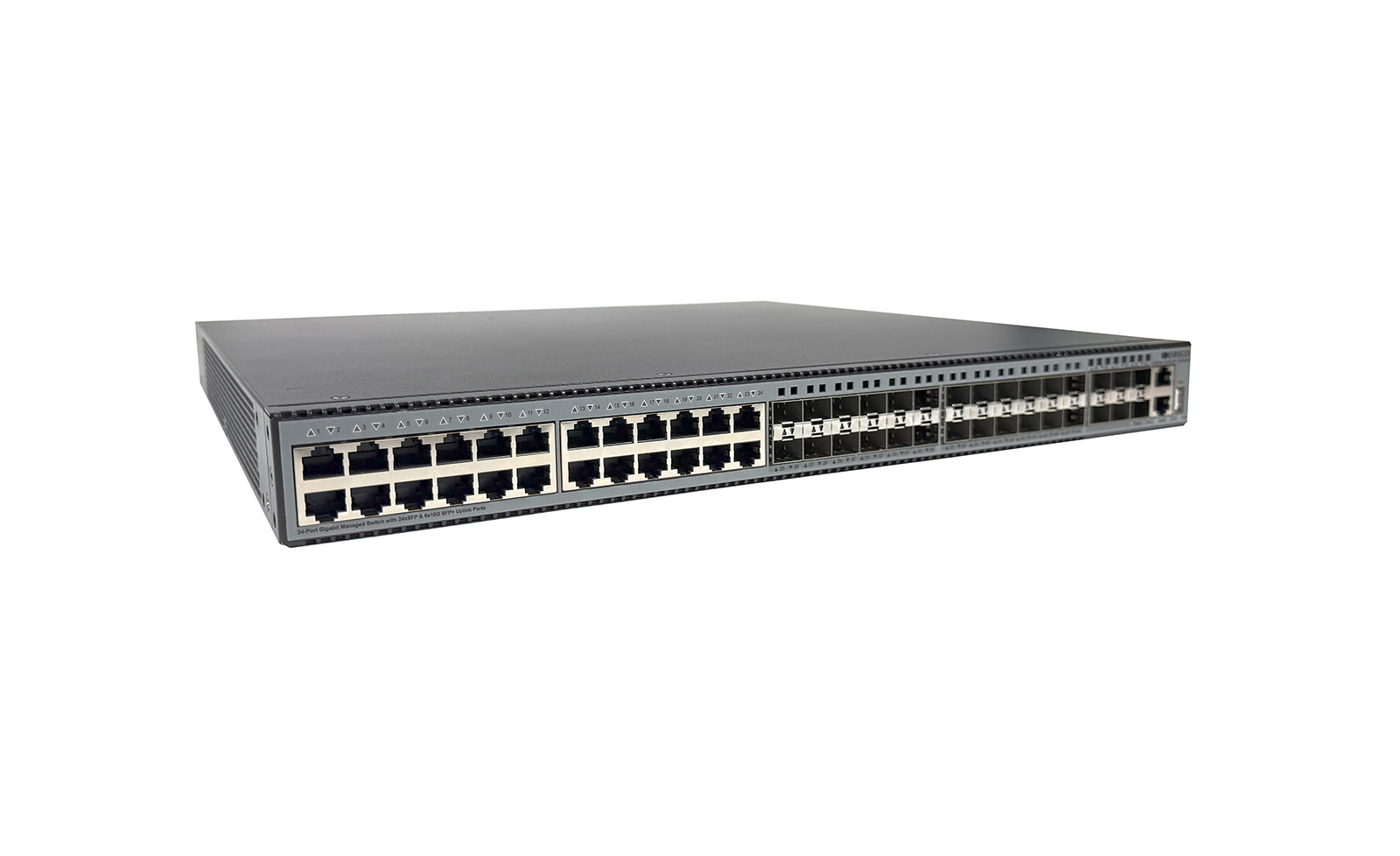

The ORIGO OS3254M is a managed L3 switch with 24x1000Base-T RJ-45 ports, 24x100/1000Mbps SFP slots, and 6x10G SFP+ uplinks.
The OS3254M switch is designed for deployment in enterprise and ISP networks, delivering a high-performance and resilient distribution-layer solution with 10G connectivity and a high density of both copper and fiber Gigabit interfaces.

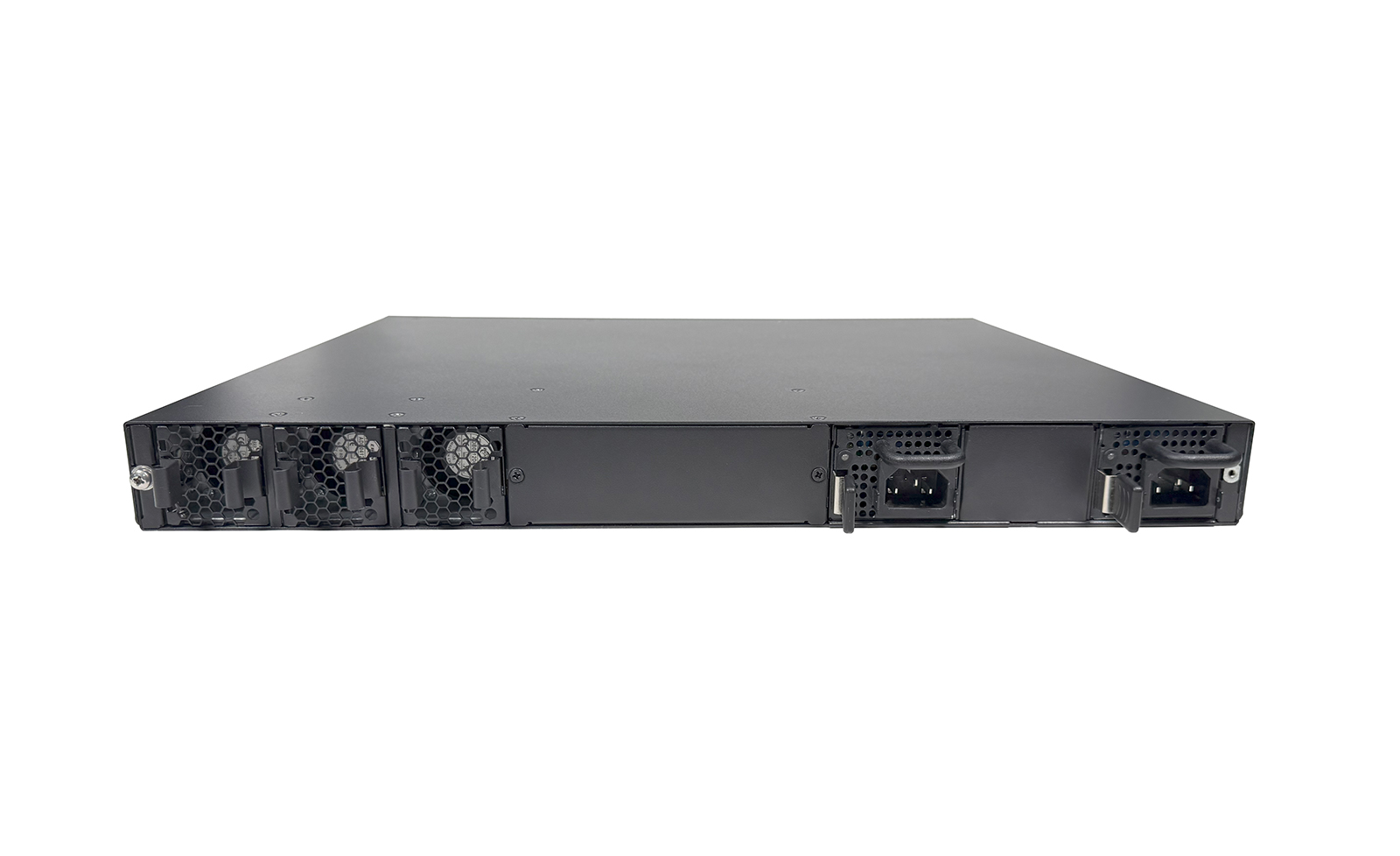

The OS3254M is equipped with three fan modules with automatic speed control and two hot-swappable AC power modules. Built-in 6kV surge protection meets industry surge standards, guarding the switch and connected devices from damage and network instability caused by ESD and lightning-induced surges. This design guarantees continuous availability and fault tolerance in mission-critical environments.
The switch combines powerful L3 routing capabilities (RIP, IS-IS, OSPF, BGP, PIM) with advanced security, QoS, and flexible VLAN features. Designed for reliable performance, the switch supports link aggregation (LACP, MLAG), redundancy protocols (STP/RSTP/MSTP), and ERPS technology for fast recovery in case of link failure within a ring topology. Built-in OAM tools provide comprehensive monitoring and troubleshooting, making network management simple and efficient.
Specification
|
Hardware
|
|
|
CPU and memory
|
• CPU: RTL9311
• RAM: 1 GB
• Flash: 64 MB
|
|
Interfaces
|
• 24 x 10/100/1000Base-T (RJ-45)
• 24 x 100/1000Base-X SFP
• 6 x 10G Base-X SFP+
• 1 x RJ-45 console port
• 10/100Base-TX management port (OOB)
• USB 2.0 Port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3u 100Base-FX
• IEEE 802.3z 1000Base-X
• IEEE 802.3ae 10GBase-X
|
|
LEDs
|
• PWR
• Link/Act
• SYS
• MGMT
• PSU0
• PSU1
|
|
Power
|
• 2 x pluggable AC power modules
• 1+1 redundancy
• Hot-swappable
|
|
Ventilation
|
• 3 x pluggable fan modules
• Automatic speed control
|
|
Housing
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 216 Gbps
|
|
Packet Forwarding Rate
|
• 160.71 Mpps
|
|
Packet Buffer
|
• 2 MB
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 32К entries
|
|
Routing Table Size
|
• 12K
|
|
L3 Forwarding Table
|
• 12K
|
|
Jumbo Frame
|
• 12 KB
|
|
Software
|
|
|
L2 Features
|
• Flow Control
• Link Aggregation
- Static
- 802.3ad
- Up to 64 groups per device / up to 8 ports per group
• Load Balance
- src-mac
- dst-mac
- src-ip
- dst-ip
• Loopback Detection
• ERPS
• MRPP
• ULPP
• ULSM
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (64 instances)
- Root Guard (Restriction)
- BPDU Guard (Restriction)
• LLDP
• LLDP-MED
• Port Mirroring
- One-to-One
- Many-to-One
- Flow-based
- CPU-based
- Ingress/egress/both
• RSPAN
• L2 Protocol Tunneling
• Multi-Chassis Link Aggregation Group (MLAG)
• Smart Link
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Subnet-based VLAN
• Private VLAN
• VLAN Filtering
• Voice VLAN
• GVRP
• MVRP
• Double VLAN (Q-in-Q)
- Selective Q-in-Q
- Port-based Q-in-Q
• VLAN Translation
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- Supports up to 4K groups
- IGMP Snooping Fast Leave
- IGMP Proxy
- IGMP Authentication (RADIUS)
• MLD Snooping
- MLD v1/v2
- Supports up to 4K groups
• Multicast Source/Destination (DCSCM)
|
|
L3 Features
|
• Maximum number of IP interfaces: 32
• 8K ARP entries
• Static routing for IPv4/IPv6
- 12K IPv4 routes
- 12K IPv6 routes
• Gratuitous ARP
• GLPD (GARP Leave Proxy Device)
• Bidirectional Forwarding Detection (BFD)
• RIPv1/v2
• OSPFv2
• BGPv4
• IS-IS
• IS-ISv6
• VRRP
|
|
L3 Multicast
|
• PIM-SM
|
|
QoS
|
• 802.1p
• CoS based on:
- DSCP
- VLAN ID
- IP Precedence
- IP ACL/ MAC ACL/ IPv6 ACL
- IPv6 Flow Labels
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Deficit Round Robin (WDRR)
• Port-based bandwidth control
• Supports up to 8 egress queues per port
|
|
Security
|
• IP Source Guard
• Port Isolation
• Storm Control
• Dynamic ARP Inspection
• ARP Spoofing Protection
• ARP Scanning Prevention
• ARP Guard
• DoS Attack Prevention
• DHCP Snooping
• DHCPv6 Snooping
• IPv6 SAVI
• Security RA
• CPU Protection
|
|
ААА
|
• 802.1X Authentication:
- Port-Based
- MAC-Based
• Guest VLAN
• IPv6 RADIUS Server
• RADIUS/TACACS+ Authentication
|
|
Access Control Lists (ACL)
|
• Up to 4K ACL entries
• ACL based on:
- VLAN
- MAC address
- IPv4 address
- DSCP
- ToS
- TCP/UDP port number
- User-defined ACL
• Time-based ACL
|
|
OAM
|
• Cable Diagnostics
• ULDP (Unidirectional Link Detection Protocol)
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• DDM (Digital Diagnostics Monitoring)
• Watchdog
|
|
Management
|
• Web-based UI
• CLI
• Telnet
• SSH
• FTP
• TFTP
• System Log
• SNMP v1/v2c/v3
• SNMP Traps
• SNTP
• NTP
• Firmware Backup/Upgrade
• Ping/Traceroute (IPv4/IPv6)
• DHCP Server
• DHCPv6 Server
• BootP/DHCP Client
• DHCP Relay
• DHCPv6 Relay
• DHCP Option 82, 43, 60, 61, 67
• DNS Client (IPv4/IPv6)
• Precision Time Protocol (PTP)
|
|
Physical Parameters
|
|
|
Dimensions (W × D× H)
|
• 440 x 380 x 44 mm
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240V AC, 50/60 Hz
|
|
Surge Protection
|
• Up to 6kV (copper ports)
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 20% to 90% (non-condensing)
• Storage: 20% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OS3254M Switch
• 2xAC Power Modules
• 3xFan Modules
• 2xPower Cords
• RJ-45 Console Cable
• Grounding Wire
• Rack-Mount Kit
• Quick Installation Guide
|
