OS3228
Managed L3 Switch
24x1000Base-T, 4x10G SFP+
- 24 x 10/100/1000Base-T (RJ-45) ports
- 4 x 10G SFP+ uplinks
- L3 routing: RIP, OSPF, BGP
- IPv4/IPv6 static routing
- 802.1Q VLAN, Selective Q-in-Q, Multicast VLAN
- 802.1X authentication, ACL, Port Security
- Comprehensive QoS for traffic prioritization
- IGMP/MLD Snooping for multicast traffic management
- ERPS, STP/RSTP/MSTP, LoopBack Detection for high availability
- Management via Web UI, CLI (Telnet, SSH, Console), and SNMP
Description

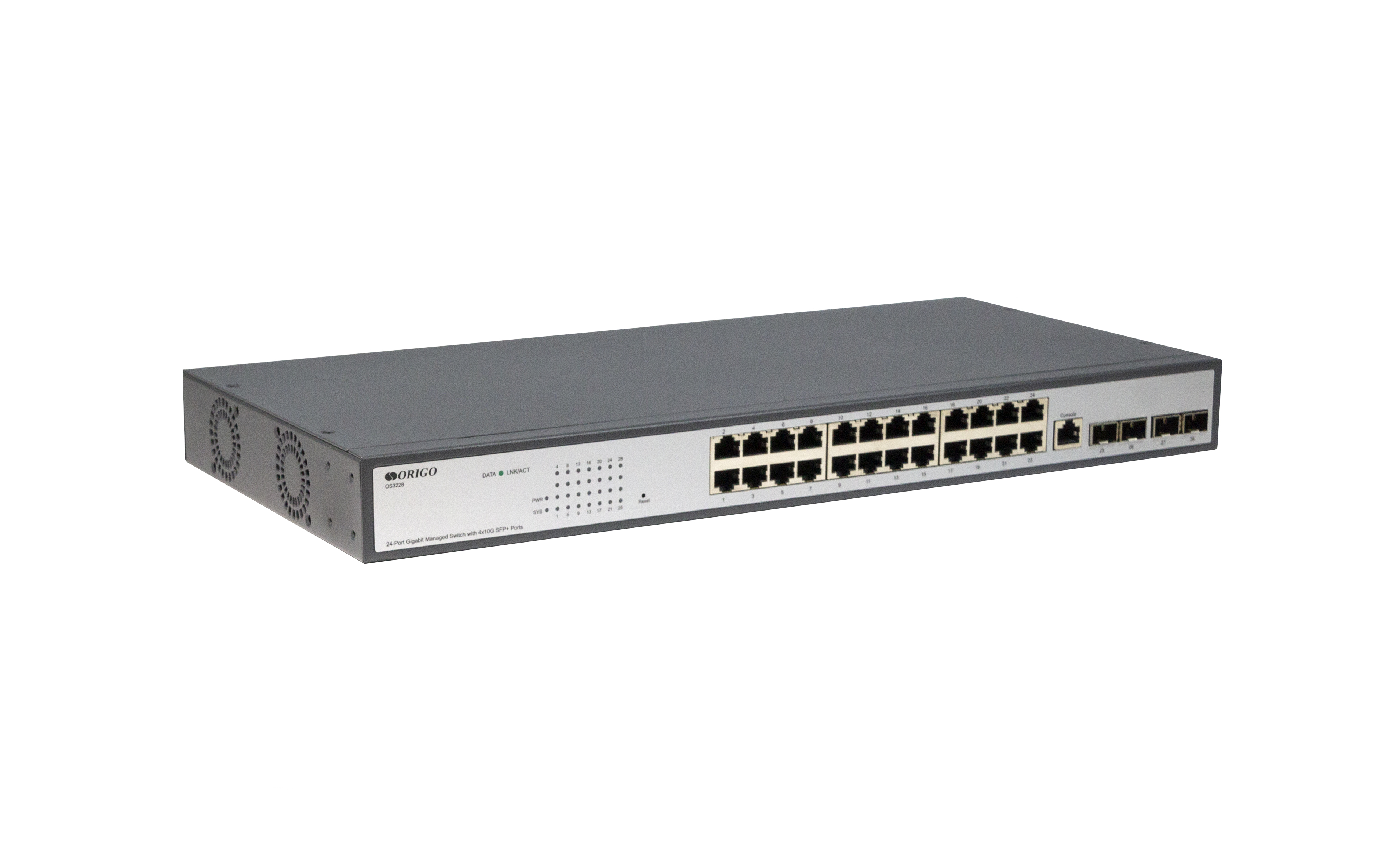

The ORIGO OS3228 is a managed L3 switch with 24xGigabit RJ-45 ports and 4x10G SFP+ uplinks.
The OS3228 switch is designed for deployment at the access and aggregation layers of SMB and enterprise networks, delivering a reliable high-performance switching solution with 10G connectivity and high density of gigabit ports
The switch combines powerful L3 routing (BGP, OSPF, RIP) with advanced security, QoS, and flexible VLAN features. Designed for reliable performance, it supports link aggregation, Loopback Detection, and redundancy protocols (STP/RSTP/MSTP, ERPS) to keep networks stable even in demanding environments. Built-in OAM tools provide comprehensive monitoring and troubleshooting, making network management simple and efficient.
Specification
|
Hardware
|
|
|
CPU and memory
|
• CPU: RTL9301
• RAM: 512 MB
• Flash: 32 MB
|
|

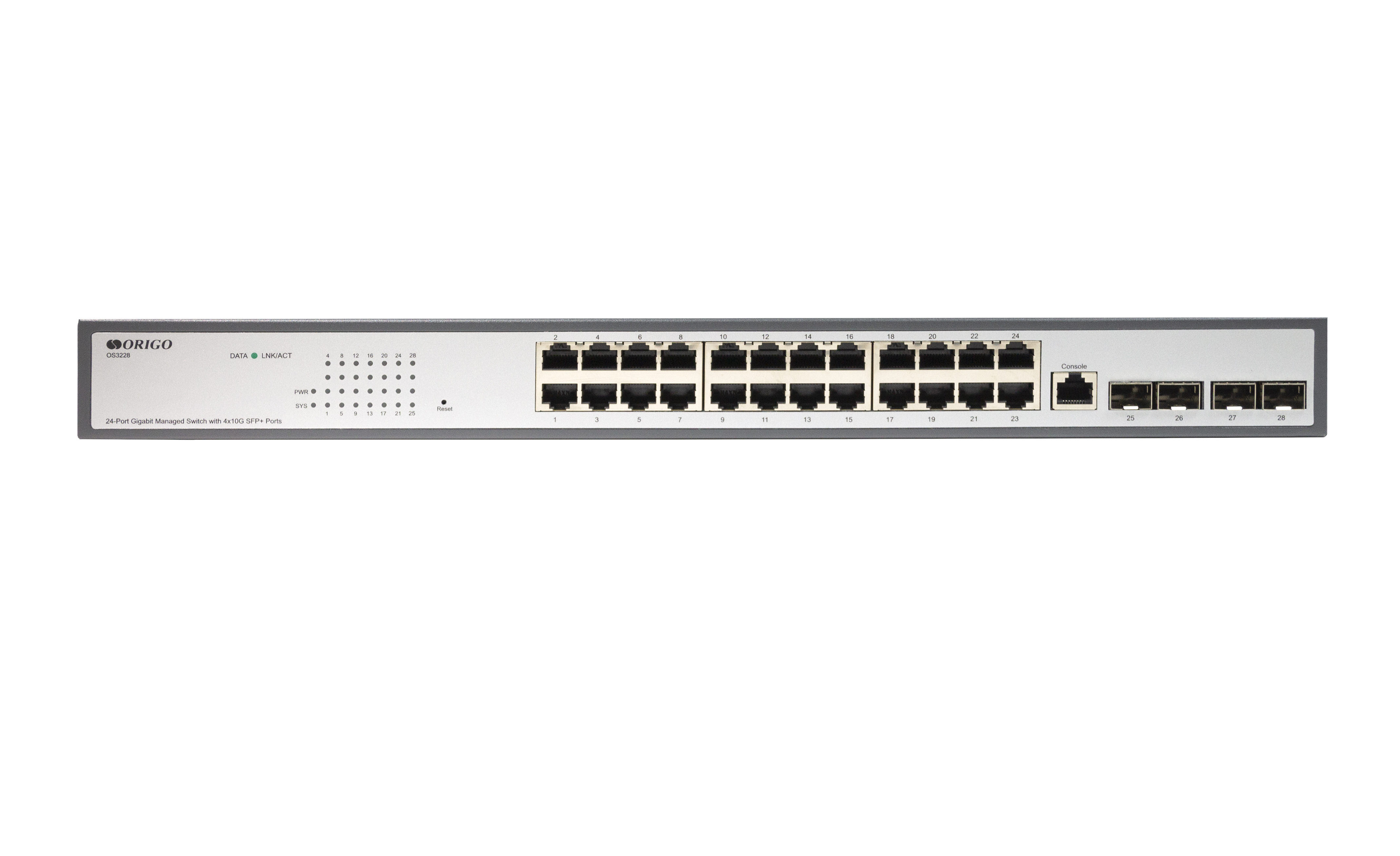

Interfaces
|
• 24x10/100/1000 Base-T (RJ-45)
• 4x10G Base-X SFP+
• RJ-45 console port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3ae 10GBase-X
• IEEE 802.3x Full Duplex Flow Control
• IEEE 802.3az Energy-Efficient Ethernet
• Auto-Negotiation
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• PWR
- ON – power on state
- OFF – power off state
• Link/ACT (port 1 – 24)
- Always bright green – connection at 1000 Mbps
- Always bright orange – connection at 10/100 Mbps
- Flicker – data pass
- Off – no connection
• Link/ACT (port 25 – 28)
- Always bright – connection at 10 Mbps
- Flicker – data pass
- Off – no connection
• SYS
- Flicker – the switch is booting up
- Off – power is off or a failure has occurred, the switch is not ready for operation
|
|
Button
|
• Reset
|
|

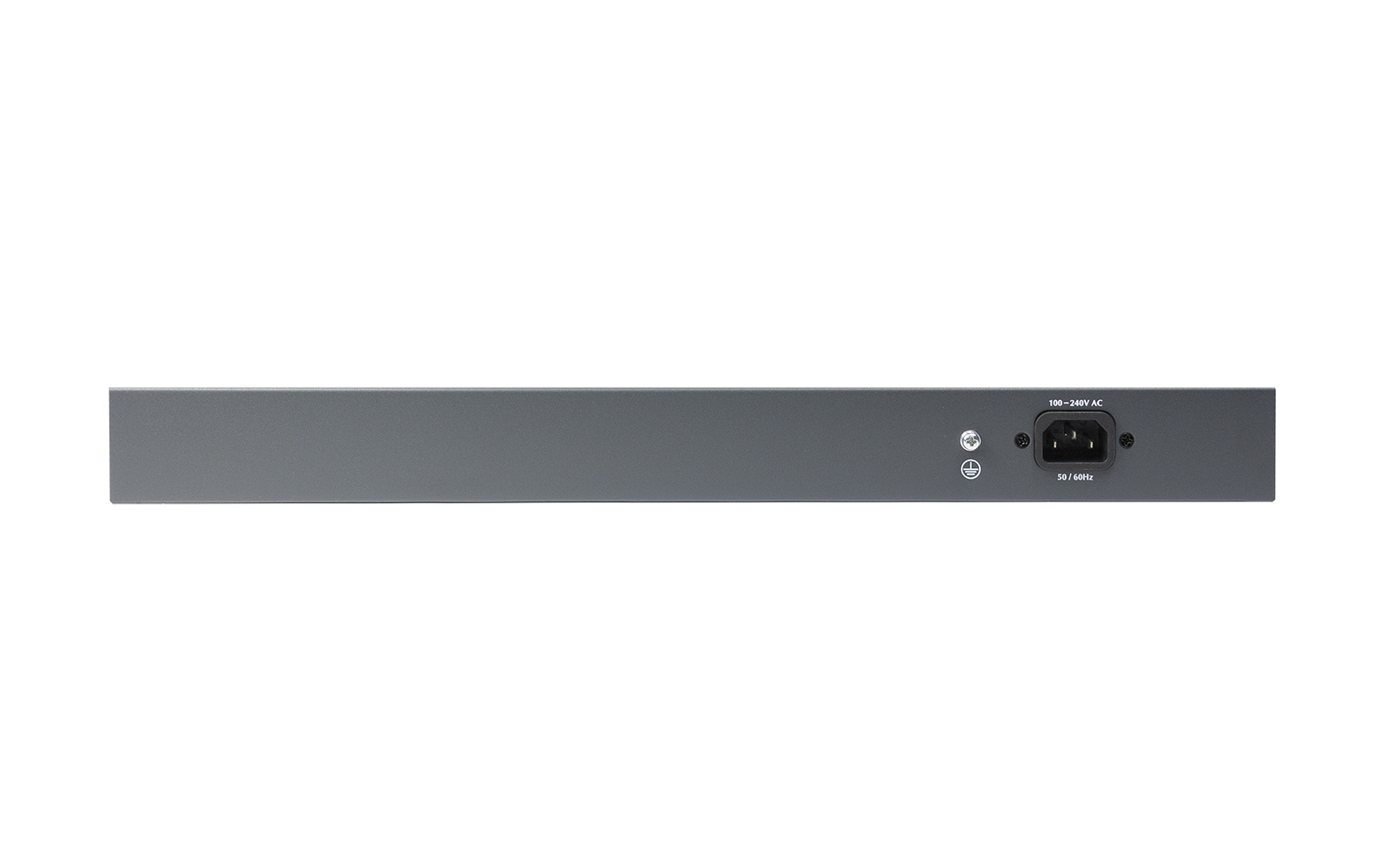

Power
|
• Power input (AC)
|
|
Ventilation
|
• Fanless
|
|
Housing
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 128 Gbps
|
|
Packet Forwarding Rate
|
• 95.23 Mpps
|
|
Packet Buffer
|
• 1.5 MB
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 16K entries
|
|
Jumbo Frame
|
• 12 KB
|
|
Software
|
|
|
L2 Features
|
• Flow Control
• Link Aggregation
- Static
- 802.3ad
• - Up to 64 groups per device / up to 8 ports per group
• Load Balance
- src-mac
- dst-mac
- src-ip
- dst-ip
• Loopback Detection
• ERPS
• MRPP
• ULPP
• ULSM
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (64 instances)
- Root Guard (Restriction)
- BPDU Guard (Restriction)
• LLDP
• LLDP-MED
• Port Mirroring
- One-to-One
- Many-to-One
- Flow-based
- CPU-based
- Ingress/egress/both
- RSPAN
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Subnet-based VLAN
• Private VLAN
• VLAN Filtering
• Voice VLAN
• GVRP
• GMRP
• Double VLAN (Q-in-Q)
- Selective Q-in-Q
- Port-based Q-in-Q
• VLAN Translation
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- Supports up to 1K groups
- IGMP Snooping Fast Leave
- IGMP Proxy
- IGMP Authentication (RADIUS)
• MLD Snooping
- MLD v1/v2
- Supports up to 1K groups
• Multicast Source/Destination (DCSCM)
|
|
L3 Features
|
• Maximum number of IP interfaces: 32
• 8K ARP entries
• Static routing for IPv4/IPv6
- 6K IPv4 routes
- 2K IPv6 routes
• Gratuitous ARP
• RIPv1/v2
• OSPFv2
• BGPv4
|
|
QoS
|
• 802.1p
• CoS based on:
- DSCP
- VLAN ID
- IP Precedence
- IP ACL/ MAC ACL/ IPv6 ACL
- IPv6 Flow Labels
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Deficit Round Robin (WDRR)
• Bandwidth Control
• 8 Egress Queues
|
|
Security
|
• Port Security
• Port Isolation
• Storm Control
• Dynamic ARP Inspection
• ARP Spoofing Prevention
• ARP Scanning Prevention
• ARP Guard
• DoS Attack Prevention
• DHCP Snooping
• DHCPv6 Snooping
• IPv6 SAVI
• Security RA
• CPU Security
|
|
AAA
|
• 802.1X Authentication:
- Port-based
- MAC-based
• Guest VLAN
• IPv6 RADIUS server
• RADIUS/TACACS+ Accounting
|
|
Access Control Lists (ACL)
|
• Up to 2K ACL entries
• ACL based on:
- VLAN
- MAC address
- IPv4 address
- DSCP
- ToS
- TCP/UDP port number
- User-defined ACL
• Based on time period ACL
|
|
OAM
|
• Cable diagnostics
• ULDP (Unidirectional Link Detection Protocol)
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• DDM (Digital Diagnostics Monitoring)
• Watchdog
|
|
Management
|
• Web-based UI
• CLI
• Telnet
• SSH
• FTP
• TFTP
• System Log
• SNMP v1/v2c/v3
• SNMP Traps
• SNTP
• NTP
• Firmware Backup/Upgrade
• Ping/Traceroute (IPv4/IPv6)
• DHCP Server
• DHCPv6 Server
• BootP/DHCP Client
• DHCP Relay
• DHCPv6 Relay
• DHCP Option 82, 43, 60, 61, 67
• IPv4/IPv6 DNS Client
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 441 x 207 x 44 mm
|
|
Weight
|
• 2.74 kg
|
|
Package Size
|
• 50.4 х 34.8 х 9 cm
|
|
Gross Weight
|
• 3.38 kg
|
|
Operating Conditions
|
|
|
Power
|
• 100-240V AC, 50/60 Hz
|
|
Maximum Power Consumption
|
• 23.2W
|
|
Standby Power Consumption
|
• 7.46W
|
|
MTBF (hours)
|
• >100 000
|
|
Surge Protection
|
• Common mode ±4KV
• Differential mode ±2KV
|
|
Electrostatic Discharge (ESD) Protection
|
• Contact discharge: ± 4kV
• Air discharge: ± 6kV
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

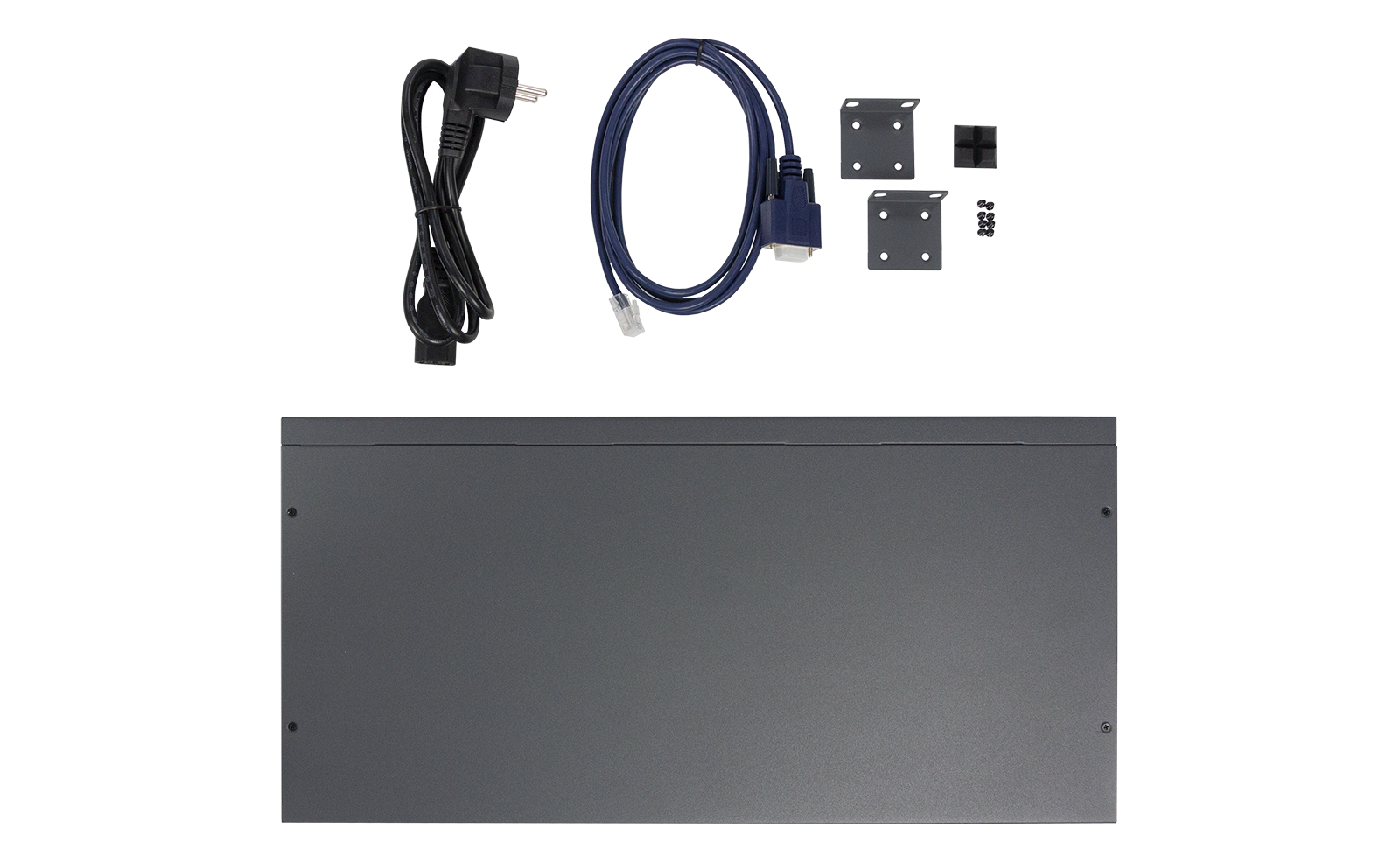

Package Contents
|
|
|
Package Contents
|
• OS3228 Switch
• Power Cord
• RJ-45 Console Cable
• Quick Installation Guide
|
