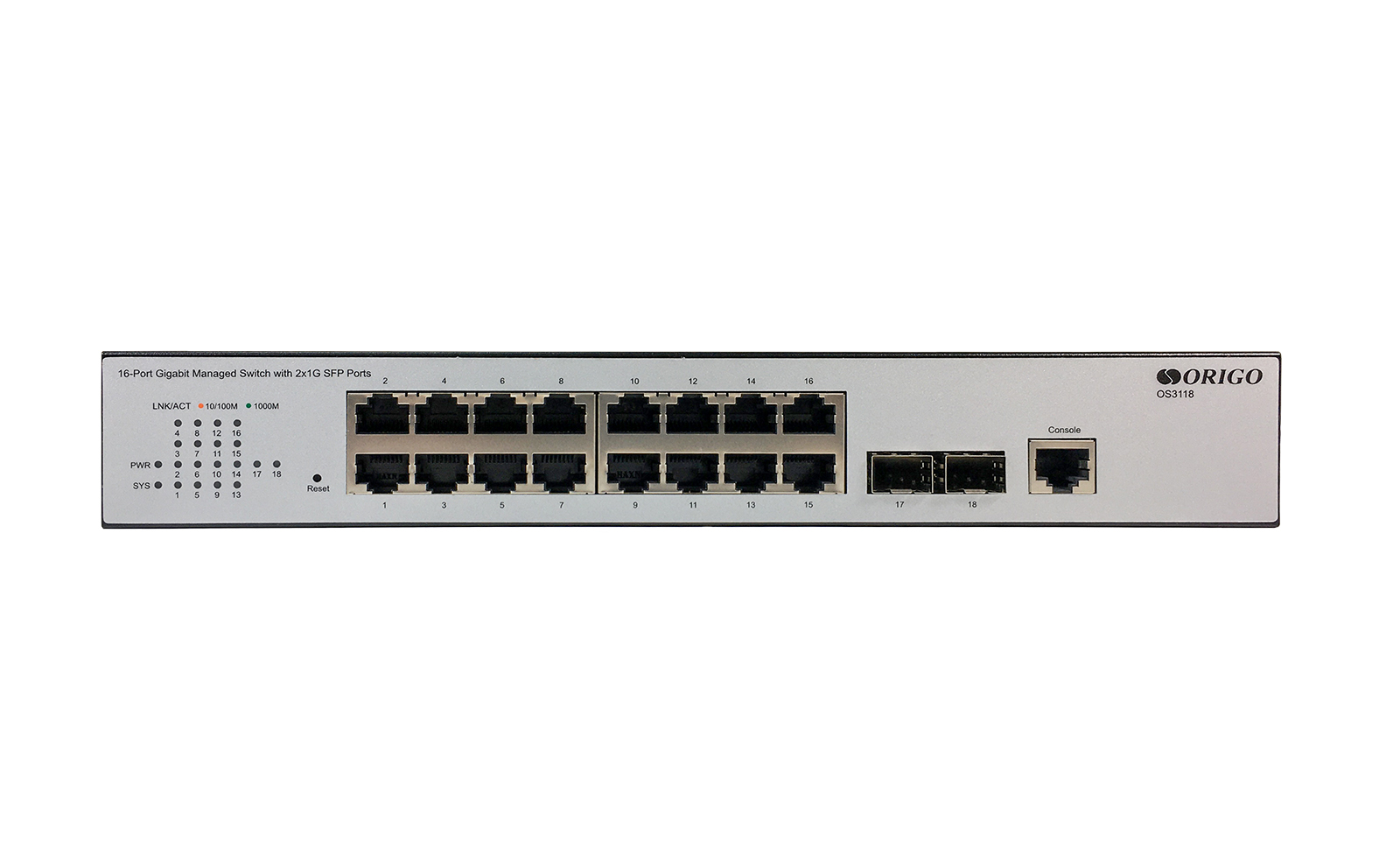

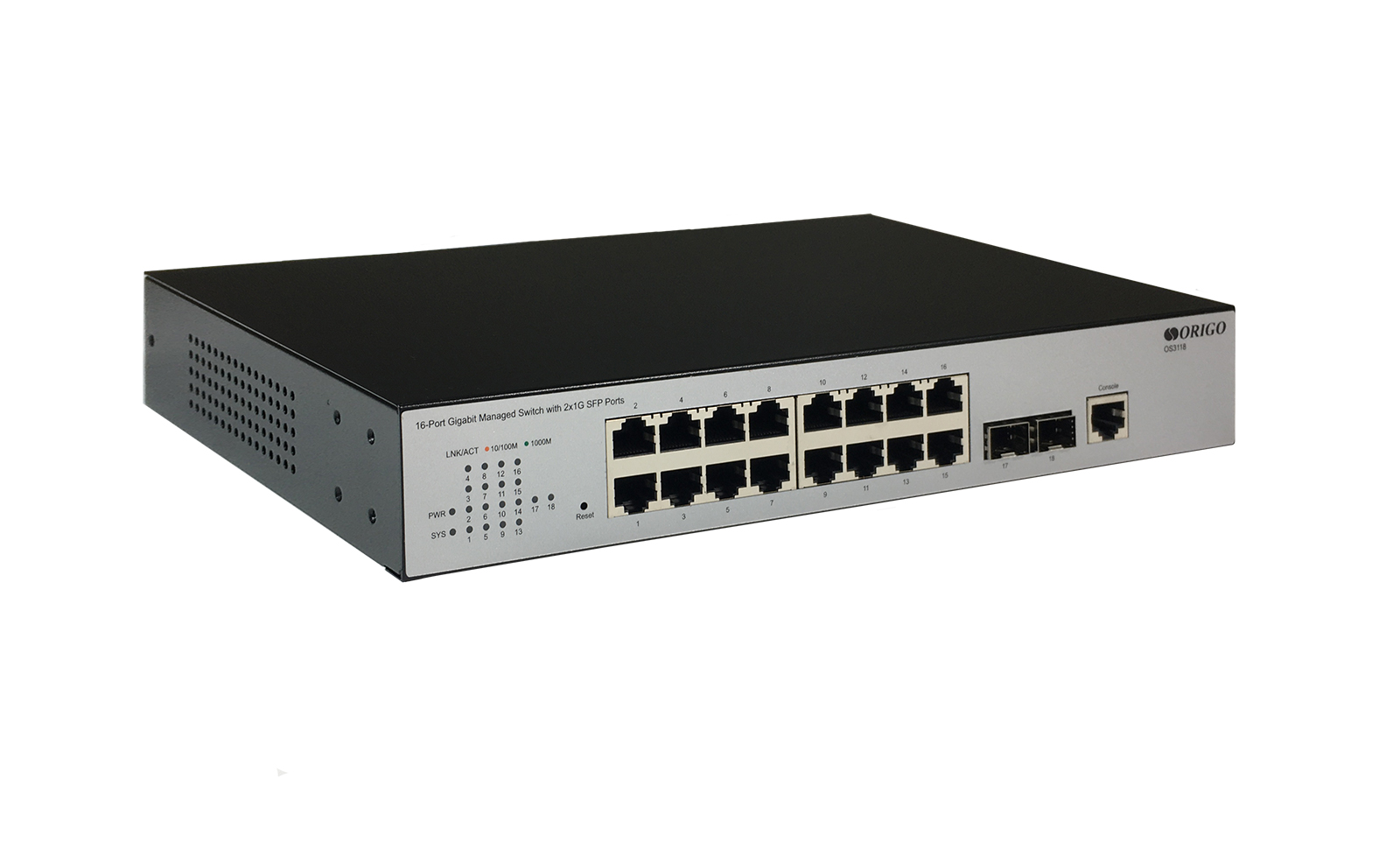

OS3118
Managed L2 Switch
16x1000Base-T, 2x100/1000Base-X SFP
- 16x10/100/1000Base-T (RJ-45) ports
- 2x100/1000Base-X SFP
- Static routing
- 802.1X, ACL, Port Security
- 802.1Q VLAN, Voice VLAN, Selective Q-in-Q
- ERPS, STP/RSTP/MSTP, Loopback Detection for enhanced network reliability
- QoS features for traffic prioritization
- IGMP/MLD Snooping to work with multicast traffic
- Management via Web UI, Console, Telnet, SSH, SNMP|
Description
The ORIGO OS3118 is a managed L2 switch with 16x10/100/1000Base-T ports and 2x100/1000Base-X SFP ports.
The ORIGO OS3118 is recommended for building of the networks of small, medium and large sized enterprises that need a modern gigabit solution with functions that provide basic routing, security, access control, fault-tolerance, quality of service and VLAN.
The OS3118 supports a static routing, advanced VLAN functionality, Port Security, 802.1X authentication and ACL. IGMP/MLD Snooping function allows to operate with multicasting applications effectively, and QoS is used to provide a priority transmission of multimedia traffic.
To increase performance and resiliency, the OS3118 supports Link Aggregation Control Protocol (LACP), the redundant connections by means of STP/RSTP/MSTP, Loopback Detection and ERPS, providing fast network recovery if one of the ring links fails.
Specification
|
Hardware Specifications
|
|
|
CPU and Memory
|
• CPU: RTL8382M
• RAM: 128 МB
• Flash: 32 MB
|
|
Interfaces
|
• 16 x 10/100/1000Base-T (RJ-45)
• 2 x 100/1000Base-X SFP
• 1 Console RJ-45 port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3u 100Base-FX
• IEEE 802.3z 1000Base-X
• IEEE 802.3x (Full Duplex Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Auto-negotiation
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• PWR
- On – power on state
- Off – power off state
• Link/Act (Ports 1 – 18)
- Always bright – terminal device is connected
- Blinking – data pass
- Off – no connection
• SYS
- Blinking – the switch is working correctly
- Off – the switch is booting up or a failure has occurred
|
|
Buttons
|
• Reset
|
|
Power
|
• Power connector (AC)
|
|
Ventilation
|
• Fanless
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 36 Gbps
|
|
Packet Forwarding Rate
|
• 26.78 Mpps
|
|
Packet Buffer
|
• 512 КB
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8К entries
|
|
Routing Table
|
• 512 entries (IPv4/IPv6)
|
|
L3 Forwarding Table
|
• 512 entries (IPv4/IPv6)
|
|
Jumbo Frame
|
• 9 216 bytes
|
|
Software
|
|
|
L2 Features
|
• Flow Control
• Link Aggregation
- Static
- 802.3ad
- Up to 8 groups per device / up to 8 ports per group
• Load Balance
- src-mac
- dst-mac
- src-ip
- dst-ip
• Loopback Detection
• ERPS
• MRPP
• ULPP
• ULSM
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (64 instances)
- Root Guard (Restriction)
- BPDU Guard (Restriction)
• LLDP
• LLDP-MED
• Port Mirroring
- One-to-One
- Many-to-One
- Flow-based
- CPU-based
- Supports Mirroring for Tx/Rx/Both
- RSPAN
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Subnet-based VLAN
• Private VLAN
• VLAN Filtering
• Voice VLAN
• GVRP
• GMRP
• Double VLAN (Q-in-Q)
- Selective Q-in-Q
- Port-based Q-in-Q
• VLAN Translation
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- Up to 512 groups
- IGMP Snooping Fast Leave
- IGMP Proxy
• MLD Snooping
- MLD v1/v2
- Up to 512 groups
• Multicast Source/Destination (DCSCM)
|
|
L3 Features
|
• Up to 16 IP interfaces
• 8K ARP entries
• Static routing entries
- 512 for IPv4
- 512 for IPv6
• Gratuitous ARP
|
|
QoS
|
• 802.1p
• CoS based on:
- DSCP
- VLAN ID
- IP Precedence
- IP ACL/ MAC ACL/ IPv6 ACL
- IPv6 Flow label
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Deficit Round Robin (WDRR)
• Bandwidth control
• 8 egress queues
|
|
Security
|
• SSH v1/v2
• SSL
- TLS 1.0/1.1/1.2 support
- IPv4/IPv6 access support
• Port Security
- Up to 8К MAC address per port
• Port Isolation
• Storm Protection
• Dynamic ARP Inspection
• ARP Spoofing Attack Prevention
• ARP Scanning Prevention
• ARP Guard
• DoS Attack Prevention
• DHCP Snooping
• DHCPv6 Snooping
• IPv6 SAVI
• Security RA
• CPU Protection
|
|
AAA
|
• 802.1X Authentication:
- Port-based
- MAC-based
• Guest VLAN
• RADIUS server with IPv6 support
• RADIUS and TACACS+ Authentication
|
|
Access Control List (ACL)
|
• 1.5K ACL entries
• ACL based on:
- VLAN
- MAC Address
- IPv4 Address
|
|
|
- DSCP
- ToS
- TCP/UDP port number
- Packet content defined by user
• Time-based ACL
|
|
OAM
|
• Cable diagnostics
• ULDP (Unidirectional Link Detection Protocol)
• Dying Gasp
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• DDM (Digital Diagnostics Monitoring)
• Watchdog
|
|
Management
|
• Web-base UI
• CLI
• Telnet
• SSH v1/v2
• FTP
• TFTP
• System Log
• SNMP v1/v2c/v3
• SNMP Traps
• SNTP
• NTP
• Firmware Backup/Upgrade
• Ping/Traceroute for IPv4/IPv6
• DHCP Server
• DHCPv6 Server
• BootP/DHCP Client
• DHCP Relay
• DHCPv6 Relay
• DHCP Option 82, 43, 60, 61, 67
• DNS Client for IPv4/IPv6
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 280 x 180 x 44 mm
|
|
Weight
|
• 1.32 kg
|
|
Package Dimensions
|
• 37 х 23 х 8 сm
|
|
Gross Weight
|
• 1.92 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240V AC, 50/60 Hz
|
|
Max Power Consumption
|
• 12.7W
|
|
Standby Power Consumption
|
• 4.69W
|
|
Heat Dissipation
|
• 14.38W (49.13 BTU/h)
|
|
Surge Protection
|
• Common mode ±2KV
• Differential mode ±1KV
|
|
Electrostatic Standard
|
• Contact ±4KV
• Air ±6KV
|
|
MTBF
|
• > 50 000 hours
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|

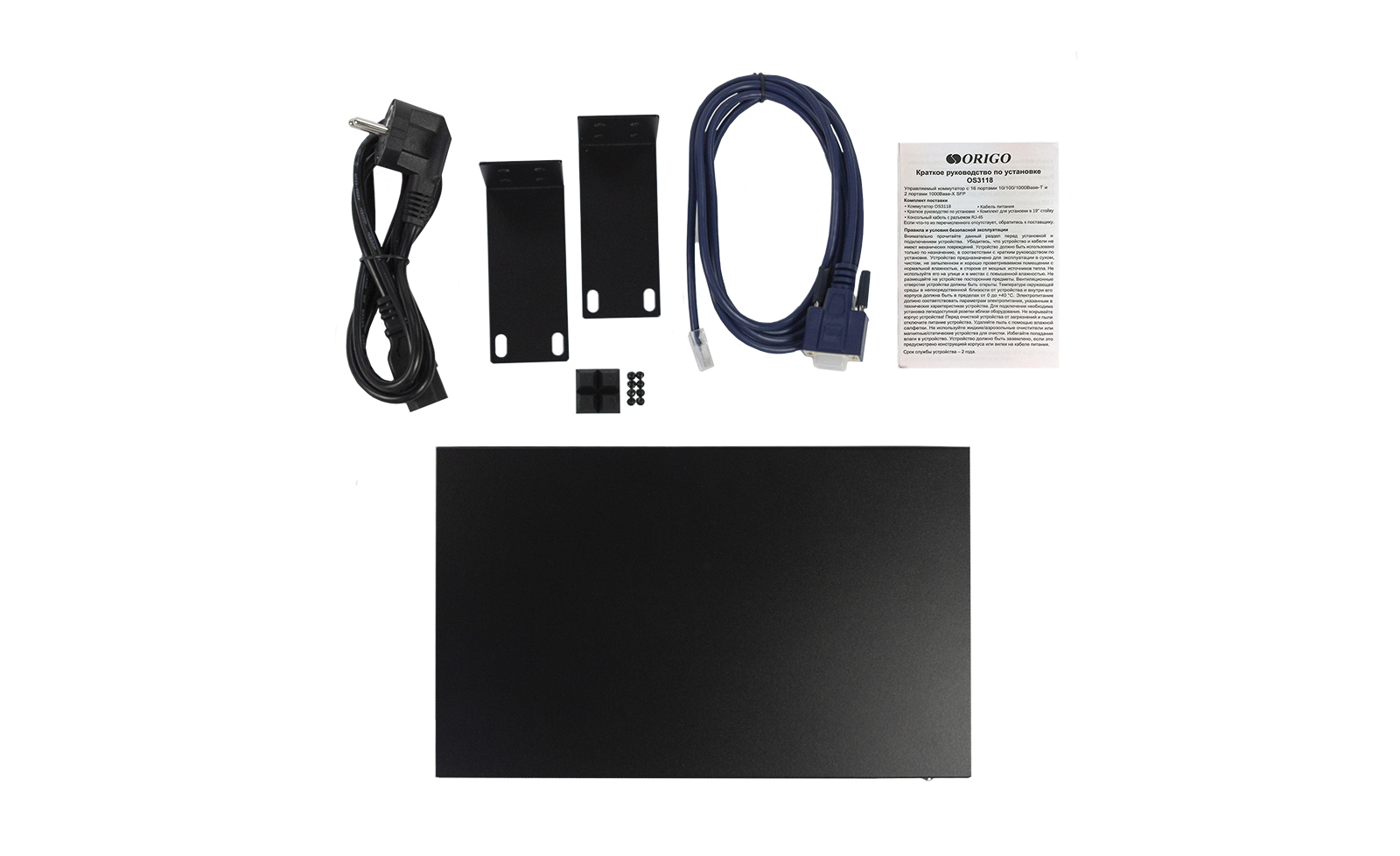

Package Contents
|
|
|
Package Contents
|
• OS3118 Switch
• Power cord
• RJ45 console cable
• 19'' rack mounting kit
• Quick Installation Guide
|
