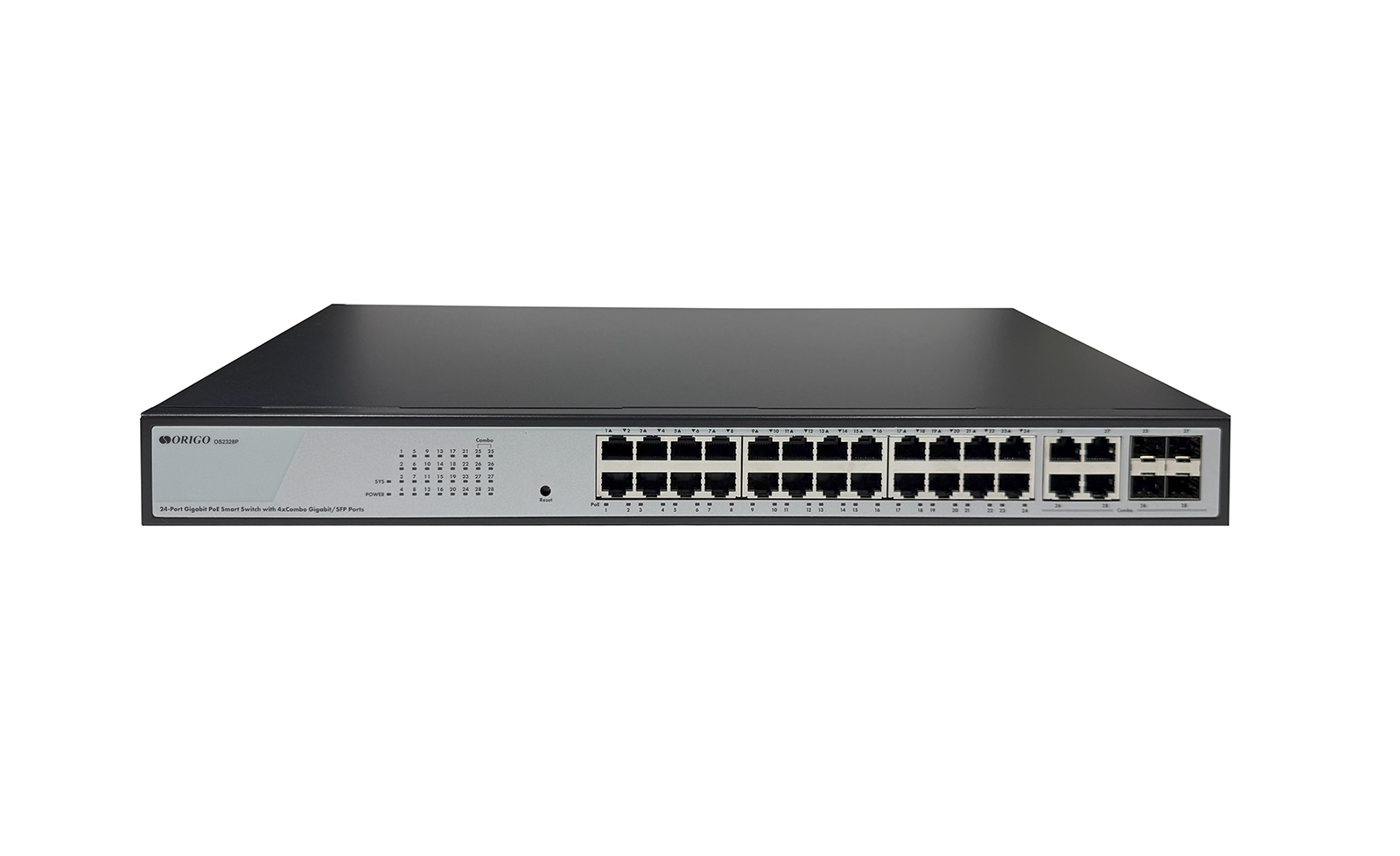

OS2328P/360W
Managed L2 PoE Switch
24x1000Base-T PoE+, 4xCombo 1000Base-T/SFP, 360W PoE Budget, PoE up to 250 m
- 24 x 10/100/1000Base-T (RJ-45) 802.3af/at PoE ports
- 4 x Combo 100/1000Base-T/SFP uplinks
- 360W PoE Budget
- Adapted for CCTV: PoE up to 250m, PD Alive
- 802.1Q VLAN, Voice VLAN, Auto Surveillance VLAN
- Loopback Detection for preventing switching loops
- STP/RSTP for enhanced redundancy and fault tolerance
- Cable diagnostics for testing cabling and identifying faults
- Management via Web UI and SNMP
Description
The ORIGO OS2328P/360W is a managed L2 switch with 24x10/100/1000Base-T PoE+ ports and 4xCombo 1000Base-T/SFP uplinks.
The OS2328P/360W is recommended for SMBs, retail, public sector organizations, and educational institutions that require a reliable, easy-to-manage access-layer solution for connecting end devices and delivering PoE to IP cameras, wireless access points, IP phones, and other PoE-enabled equipment.
Ports 1 – 24 support IEEE 802.3af/at PoE standards, delivering up to 30W per port with a total PoE budget of 360W. The Gigabit combo uplinks provide flexible connectivity options over fiber or copper, ensuring seamless integration into enterprise networks.
The switch is suitable for use in video surveillance systems (CCTV). The Extend PoE mode allows to overcome the standard Ethernet limit of 100 m and connect IP cameras at a distance of up to 250 m at speeds up to 10 Mbit/s, simplifying installation and reducing costs when building CCTV networks. The PD Alive function allows you to monitor PoE-powered devices and automatically restart unresponsive devices.
Designed to simplify network deployment, the OS2328P/360W supports 802.1Q VLAN for traffic segmentation, Voice VLAN and Auto Surveillance VLAN for seamless IP phone and video surveillance integration, with 802.1X authentication providing secure network access. Advanced features such as loopback detection, STP/RSTP redundancy, and built-in cable diagnostics deliver stable, resilient, and easy-to maintain networks.
The switch can be managed through a Web-based UI or SNMP, making it an excellent choice for networks that need cost-effective gigabit performance with essential manageability.
Specification
|
Hardware
|
|
|
CPU and Memory
|
• CPU: EN8853C
• RAM: 512 KB
• Flash: 16MB
|
|
Interface
|
• 24x10/100/1000Base-T (RJ-45) PoE
• 4xCombo 1000Base-T/SFP
|
|
CPU
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.1Q (VLAN)
• IEEE 802.1p (QoS)
• IEEE 802.3x (Flow Control)
• Auto-Negotiation
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• PWR
- ON – power on state
- OFF – power off state
• LNK/ACT (Ports 1 – 28)
- Always bright – terminal device connected
- Flicker – data pass
- OFF – no connection
• SYS
- Flicker – the system is working properly
- OFF – the system is being started or is abnormal
• PoE (Ports 1 – 24)
- On: PoE device is connected
- Off: No PoE device connected
|
|
Button
|
• Reset
|
|
Ventilation
|
• 2 fans
|
|
Power
|
• Power connector (AC)
|
|
Housing
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 56 Gbps
|
|
Packet Forwarding Rate
|
• 35.7 Mpps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8К entries
|
|
Packet Buffer
|
• 512KB
|
|
Jumbo Frame
|
• 15KB
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1 – 24
|
|
Max. Power per Port:
|
• 30W
|
|
PoE Power Budget
|
• 360W
|
PoE Mode |
• Type A |
|
PoE Distance
|
• 100 m
- Data rate – up to 1000 Mbps
• 250 m1
- Data rate – up to 10 Mbps
|
|
Management and Monitoring
|
• PD Alive: monitoring and automatic reboot of PoE-powered devices if they become unresponsive for 5 minutes.
|
|
Software
|
|
|
L2 Features
|
• Port Mirroring
- One-to-One
- Many-to-One
- Ingress/egress traffic mirroring
• Static Link Aggregation
- Up to 4 groups per device / up to 8 ports per group
• Loopback Detection
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
• LLDP
• LLDP-MED
• Cable Diagnostics
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2
- IGMP Snooping Querier
- Supports up to 64 groups
|
|
VLAN
|
• Port-based VLAN
• 802.1Q tagged VLAN
• Voice VLAN
• Auto Surveillance VLAN
• VLAN Groups
- Up to 32 static VLAN groups
- Maximum VID range: 1-4094
|
|
QoS
|
• 802.1p
• Supports up to 8 queues per port
• CoS based on:
- 802.1p Priority Queues
- DSCP
- Switch port
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Fair Queuing (WFQ)
• Bandwidth Control
- Port-based (ingress/egress, min. 32 Kbps)
|
|
Security
|
• Port Security
• Storm Control
• DoS Attack Prevention
• DHCP Snooping
• SSL
- TLS support
|
|
AAA
|
• 802.1X Authentication:
- Port-Based
- Host-based
|
|
Management
|
• Web-based UI
• SNMP v1/v2c
• SNMP Traps
• DHCP Relay
• Multi-version firmware support
|
|
Physical Parameters
|
|
Dimensions (L x W x H) |
• 440 x 220 x 44.5 mm |
Weight |
• 2.78 kg |
Package Dimensions |
• 51 x 35 x 8.7 cm |
Gross Weight |
• 3.42 kg |
|
Operating Conditions
|
|
|
Power
|
• 100-240V AC, 50/60 Hz
• Power cord length: 1.4 m
|
|
Power Consumption
|
• 400W
|
|
Electrostatic Discharge (ESD) Protection
|
• Contact discharge: ± 6kV
• Air discharge: ± 8kV
|
|
Temperature
|
• Operating: 0 to 50 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|
Package Contents
|
|
|
Package Contents
|
• OS2328P/360W Switch
• Power Cord (1.4 m)
• Rack-Mount Kit
• Quick Installation Guide
|
1Data and power transmission over distances of up to 250 m is possible with a switch port speed limited to 10 Mbps. The connected device should also support speeds of up to 10 Mbps.
