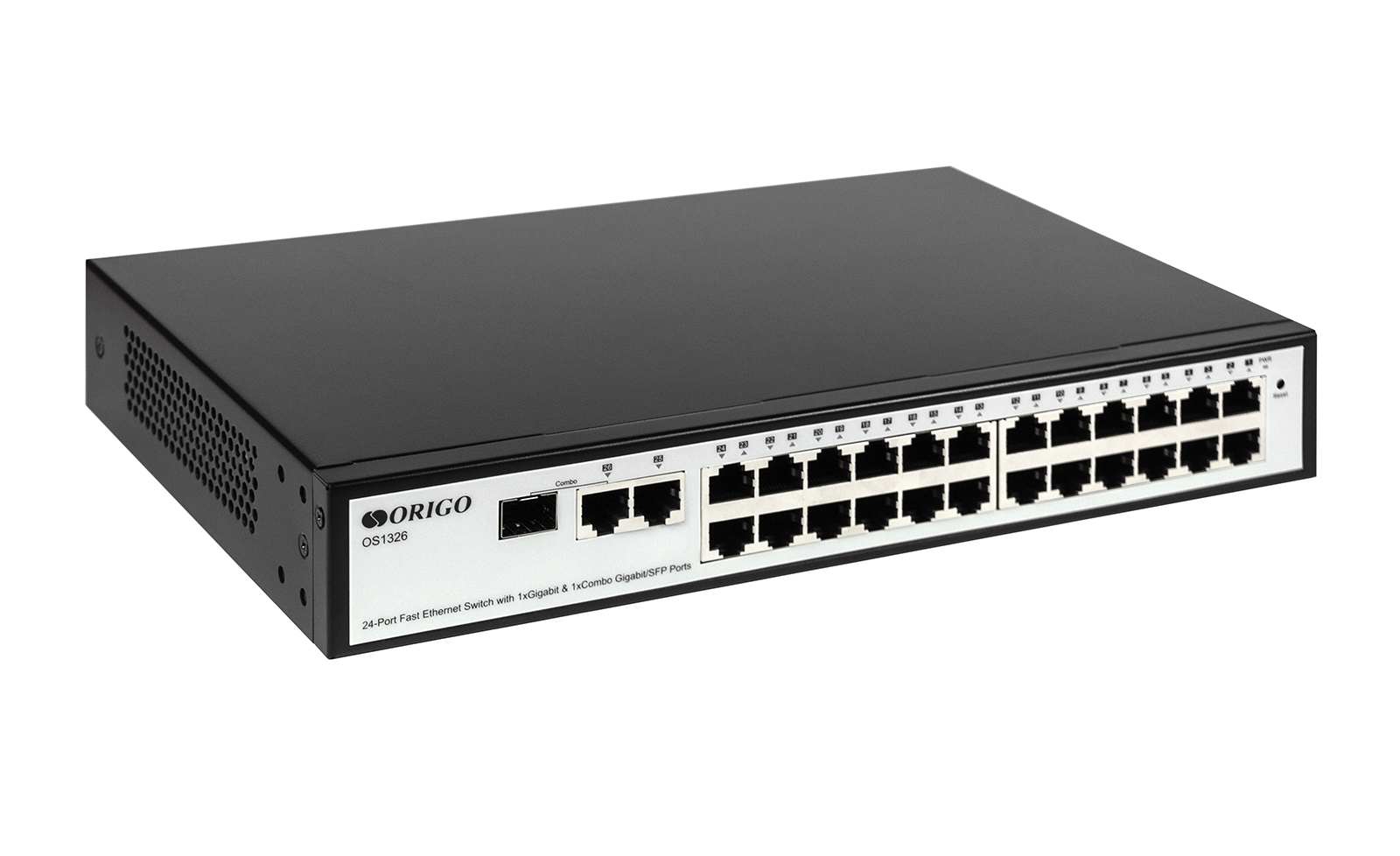

OS1326
Managed L2 Switch
24x100Base-TX, 1x1000Base-T, 1xCombo 1000Base-T/SFP
- 24x10/100 Mbps RJ-45 ports with Auto-Negotiation
- 1x10/100/1000Base-T (RJ-45) uplink
- 1x 1000Base-T/SFP combo uplink
- MAC Address Table: 16K
- Port-based / 802.1Q VLAN
- QoS providing traffic prioritization
- Loopback Detection
- IGMP / MLD Snooping for multicast traffic management
- Management via Web UI, compact CLI, SNMP
- 19'' rack mounting
Description
The ORIGO OS1326 is a managed L2 switch with 24x100Base-TX ports, 1x1000Base-T uplink and 1xCombo 1000Base-T/SFP uplink.
The OS1326 switch provides reliable access-layer connectivity, combining performance, simplicity, and affordability to meet the needs of SMBs, public institutions, and educational networks.
Designed with the features most organizations rely on, the OS1326 offers port-based and 802.1Q VLAN for traffic segmentation, link aggregation for higher throughput, loop detection, QoS, and IGMP Snooping for efficient multicast performance. The switch also provides STP/RSTP/MSTP protocols to enhance fault tolerance and redundancy, ensuring stable and resilient network operation.
The switch can be managed through a Web-based UI, SNMP, or a compact CLI, making it an excellent choice for networks that need cost-effective performance with essential manageability.
Specification
|
Hardware
|
|
|
CPU and Memory
|
• CPU: IP1829A
• RAM: 512 KB
• Flash: 16 MB
|
|

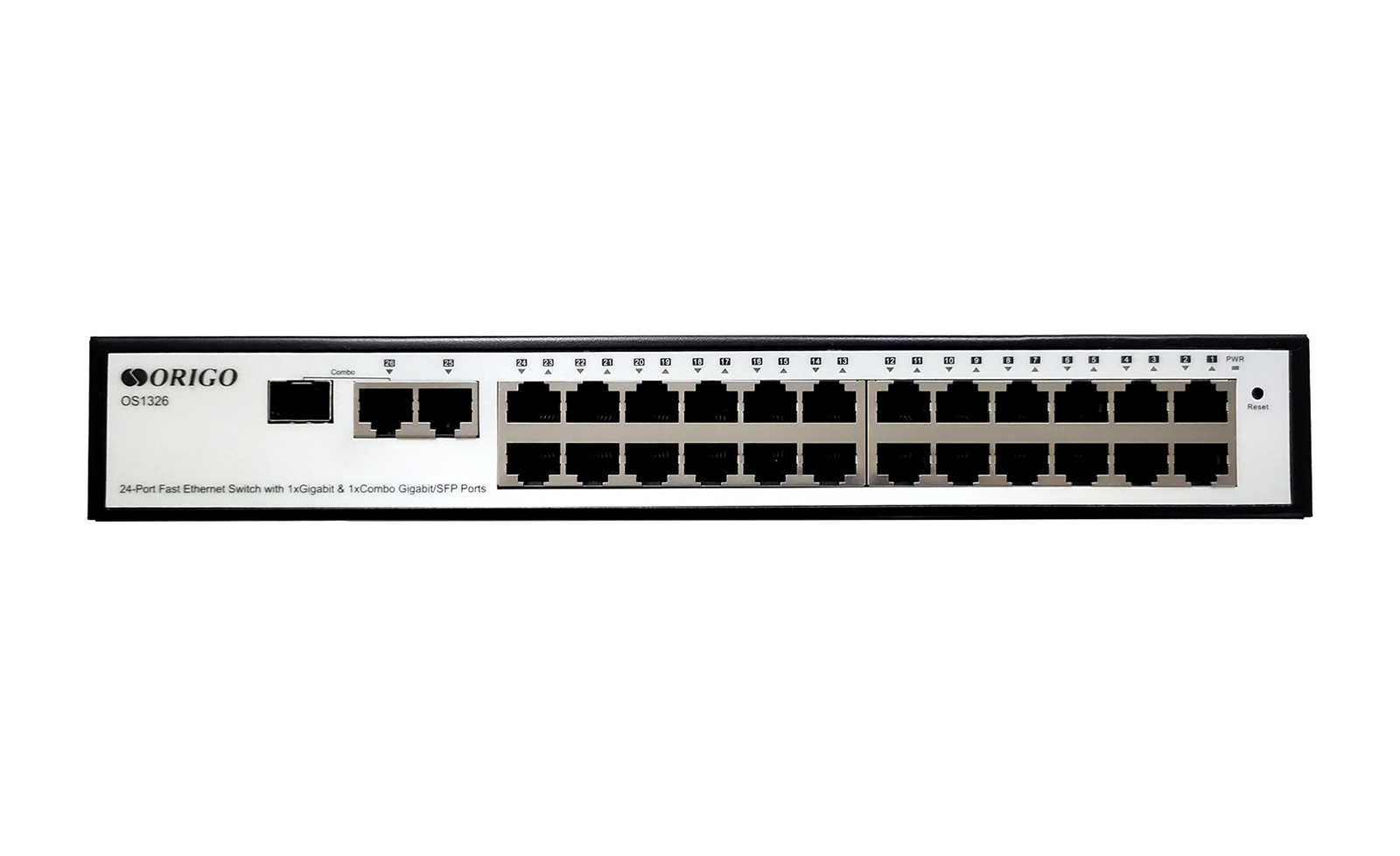

Interface
|
• 24x10/100Base-TX (RJ-45)
• 1x10/100/1000Base-T (RJ-45)
• 1xCombo 100/1000Base-T/SFP
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-X
• IEEE 302.3ad (Link Aggregation)
• IEEE 802.1Q (VLAN)
• IEEE 802.3x (Flow Control)
• IEEE 802.3az Energy-Efficient Ethernet
• Auto-Negotiation
• Auto MDI/MDIX on all copper ports
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link/Act (port 1 – 26)
- Always bright – terminal device is connected
- Flicker – data pass
- Off – no connection
|
|
Ventilation
|
• Fanless
|
|

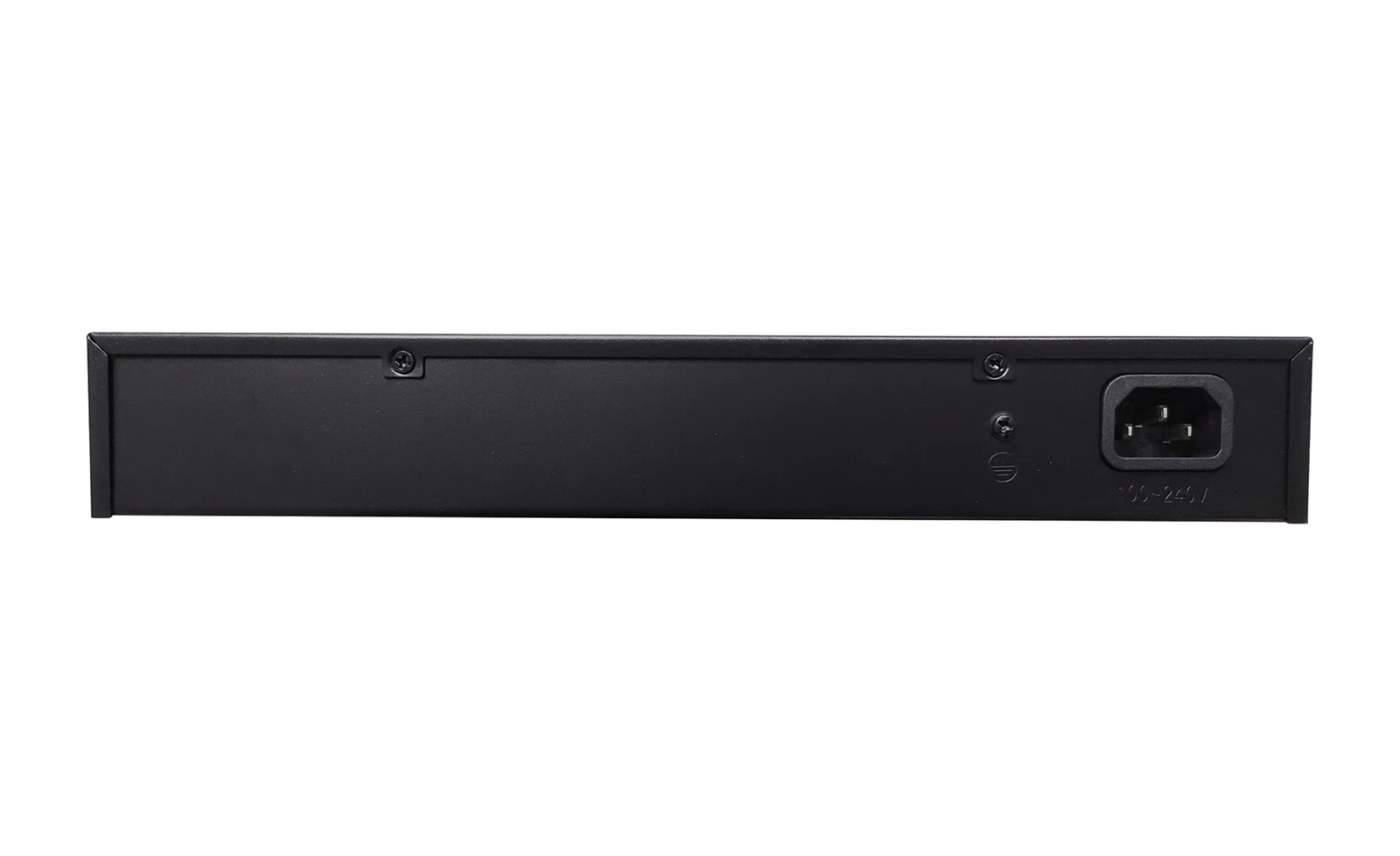

Power
|
• Power input (AC)
|
|
Button
|
• Reset
|
|
Housing
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 8.8 Gbps
|
|
Packet Forwarding Rate
|
• 6.55 Mpps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 16К entries
|
|
Packet Buffer
|
• 512 KB
|
|
Software
|
|
|
L2 Features
|
• 802.3ad Link Aggregation
- Max 5 groups per device / 4 ports per group
• Port Mirroring
• Loopback Detection
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
• LLDP
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP Snooping v1/v2/v3
- Supports up to 256 groups
• MLD Snooping
- MLD Snooping v1/v2
|
|
VLAN
|
• Max. VID: 4095
• Port-based
• 802.1Q tagged VLAN
• Double VLAN (Q-in-Q)
- Port-based Q-in-Q
• Voice VLAN
|
|
QoS
|
• CoS based on:
- Switch port
- 802.1p
- DSCP
- ACL
- IGMP
- IP Address
- MAC Address
- VID
- TCP/UDP Port
• 8 Queues per Port
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Fair Queuing (WFQ)
|
|
Security
|
• Network Storm Control
• DoS Attack Prevention
• IP-MAC-Port Binding (IMPB)
|
|
Access Control Lists (ACL)
|
• ACL based on:
- MAC Address
- IPv4/IPv6 Address
- DSCP
- Ether type
|
|
AAA
|
• 802.1X
- Host-based Access Control
- Port-based Access Control
• RADIUS Server
|
|
Management
|
• Web-based UI
• Compact CLI
• SNMP v1/v2c/v3
• DHCP relay agent
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 290 x 179 x 44 mm
|
|
Weight
|
• 1.3 kg
|
|
Package Size
|
• 35 х 27.2 х 9.1 cm
|
|
Gross Weight
|
• 1.87 kg
|
|
Operating Conditions
|
|
|
Power
|
• 100-240V AC, 50/60 Hz
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% (non-condensing)
• Storage: 5% to 90% (non-condensing)
|
|

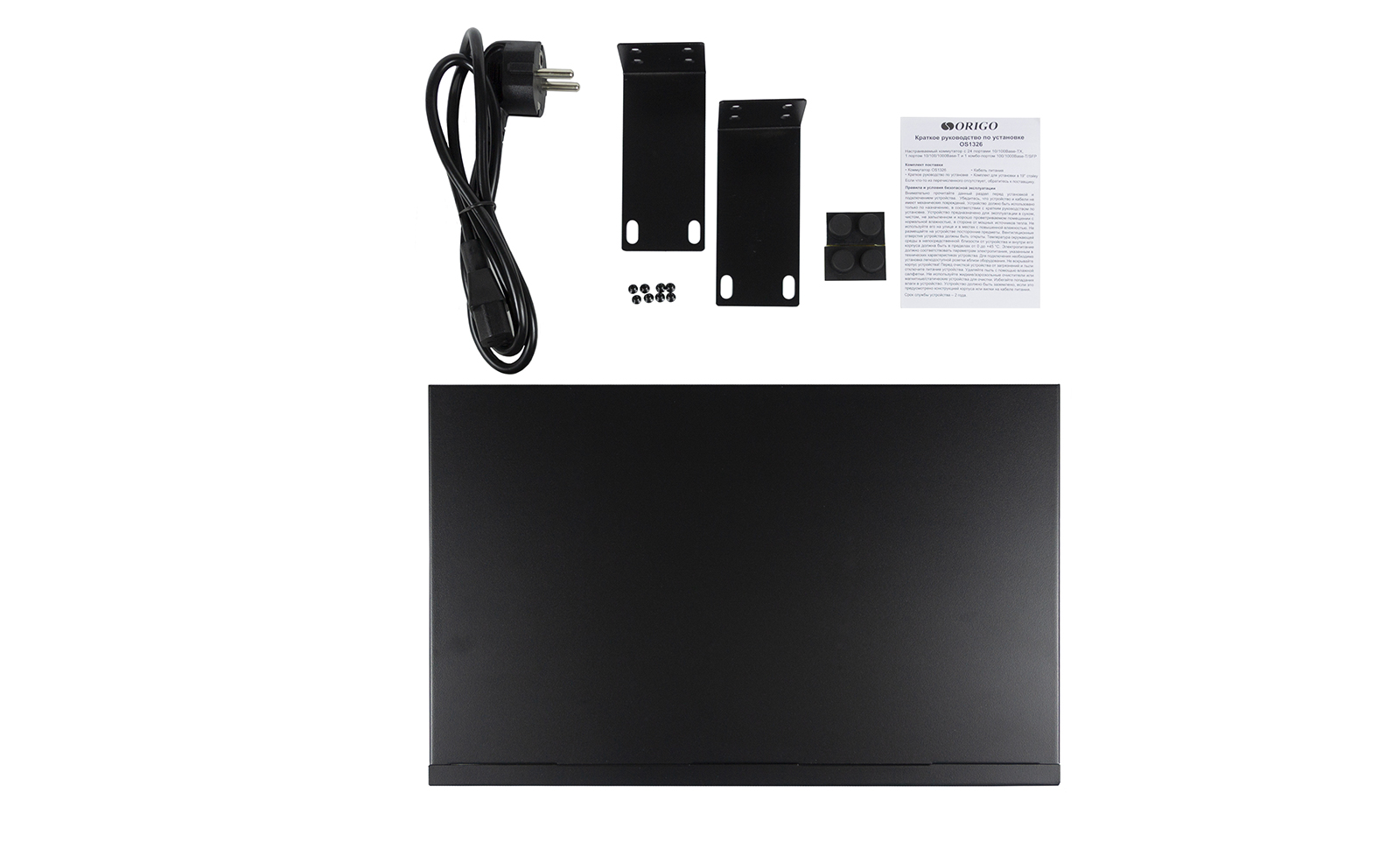

Package Contents
|
|
|
Package Contents
|
• OS1326 Switch
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
|
