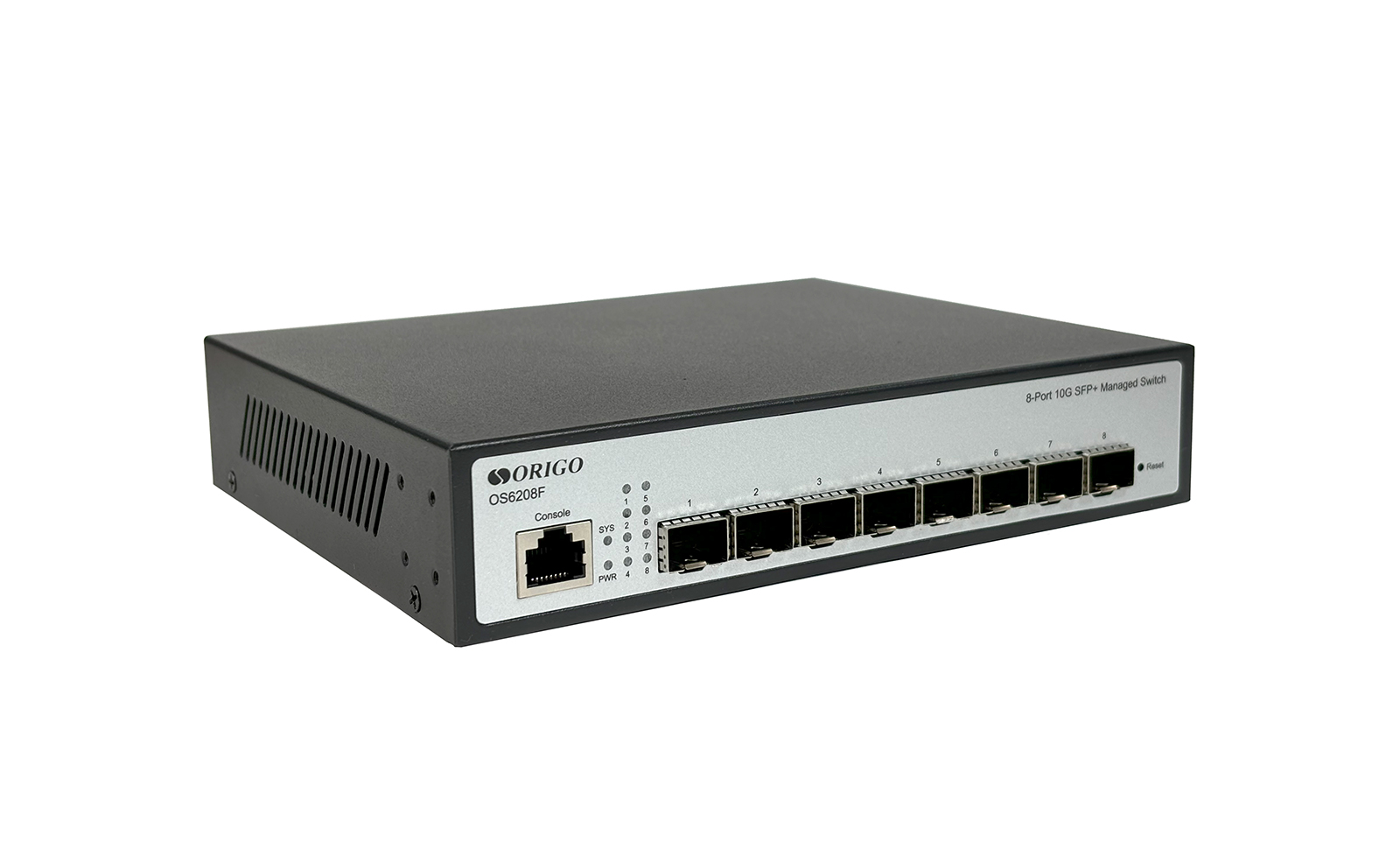

OS6208F
Managed L2 Switch
8x10G SFP+
- 8 10G SFP+ ports
- IPv4/IPv6 static routing
- 802.1Q VLAN, Voice VLAN, Multicast VLAN, GVRP
- 802.1X authentication, ACL, Port Security
- ERPS, STP/MSTP/RSTP, LACP for enhanced network reliability
- Wide range of QoS functions
- Web, Console, Telnet, SSH, SNMP management
Description
The ORIGO OS6208F is a high-performance L2 managed switch with 8 10G SFP+ ports.
The ORIGO OS6208F is recommended for building of the networks of communications providers and small and medium enterprises that need a modern 10-Gigabit solution at level of aggregation with functions that provide security, access control, fault-tolerance and quality of service.
The OS6208F supports a static routing, Port Security, 802.1X authentication, ACL, traffic segmentation via 802.1Q VLAN, Voice VLAN and Multicast VLAN. IGMP/MLD Snooping function allows to operate with multicasting applications effectively, and QoS is used to provide a priority transmission of multimedia traffic.
To increase performance and resiliency, the OS6208F supports Link Aggregation Control Protocol (LACP), the redundant connections by means of STP/RSTP/MSTP, and ERPS, providing fast network recovery if one of the ring links fails.
The OS6208F is managed through Command Line Interface (CLI), SNMP and Web-based interface.
Specification
|
Hardware Specifications
|
|
|
CPU and Memory
|
• CPU: RTL9300
• RAM: 512 MB
• Flash: 16 MB
|
|

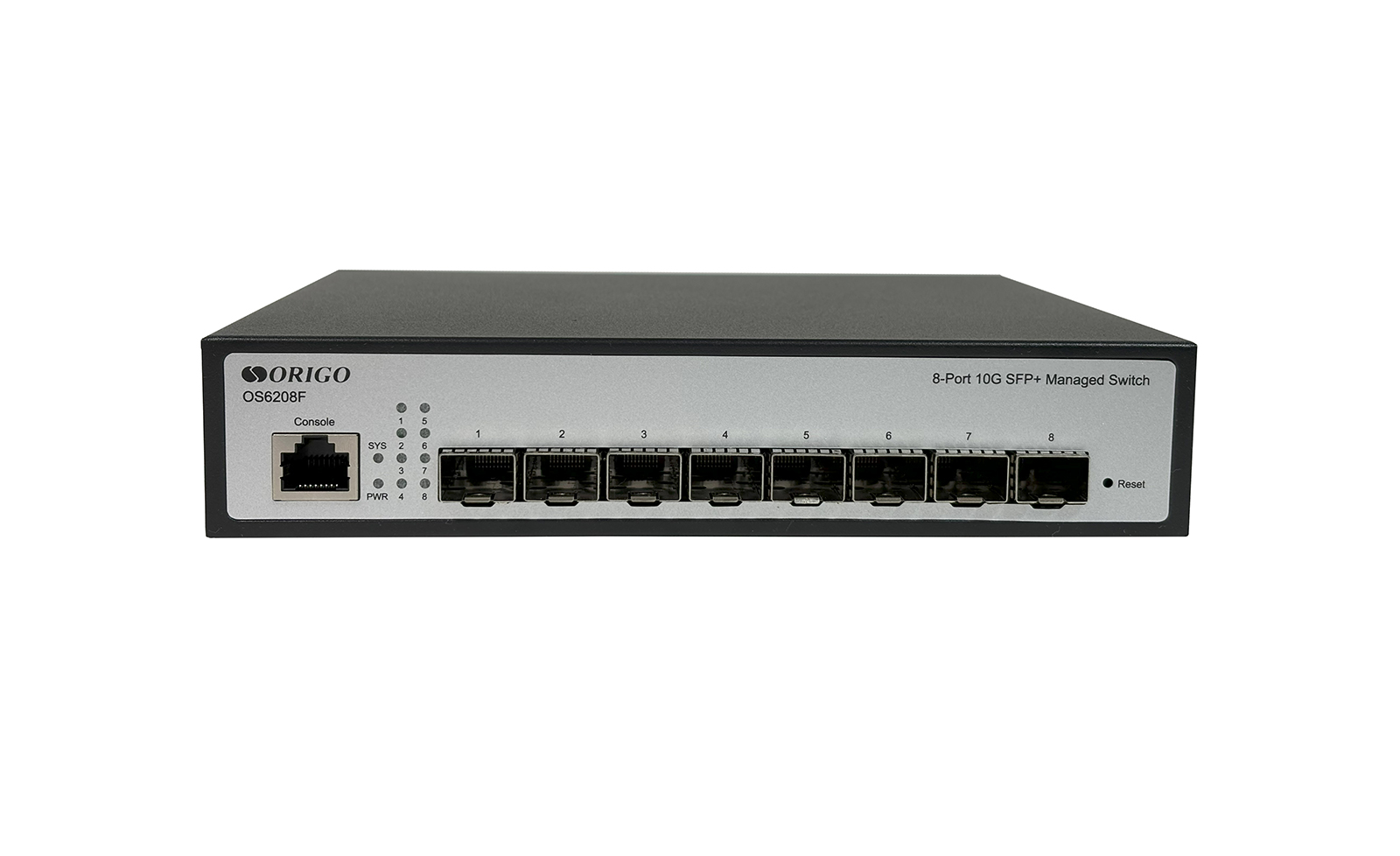

Interfaces
|
• 8 x 10GBase-X SFP+
• 1 Console RJ-45 port
|
|
Standards and Functions
|
• IEEE 802.3z 1000Base-X
• IEEE 802.3ae 10GBase-X
• IEEE 802.3x Flow Control
|
|
LEDs
|
• PWR
• Link/Act (Ports 1 – 8)
• SYS
|
|
Buttons
|
• Reset
|
|

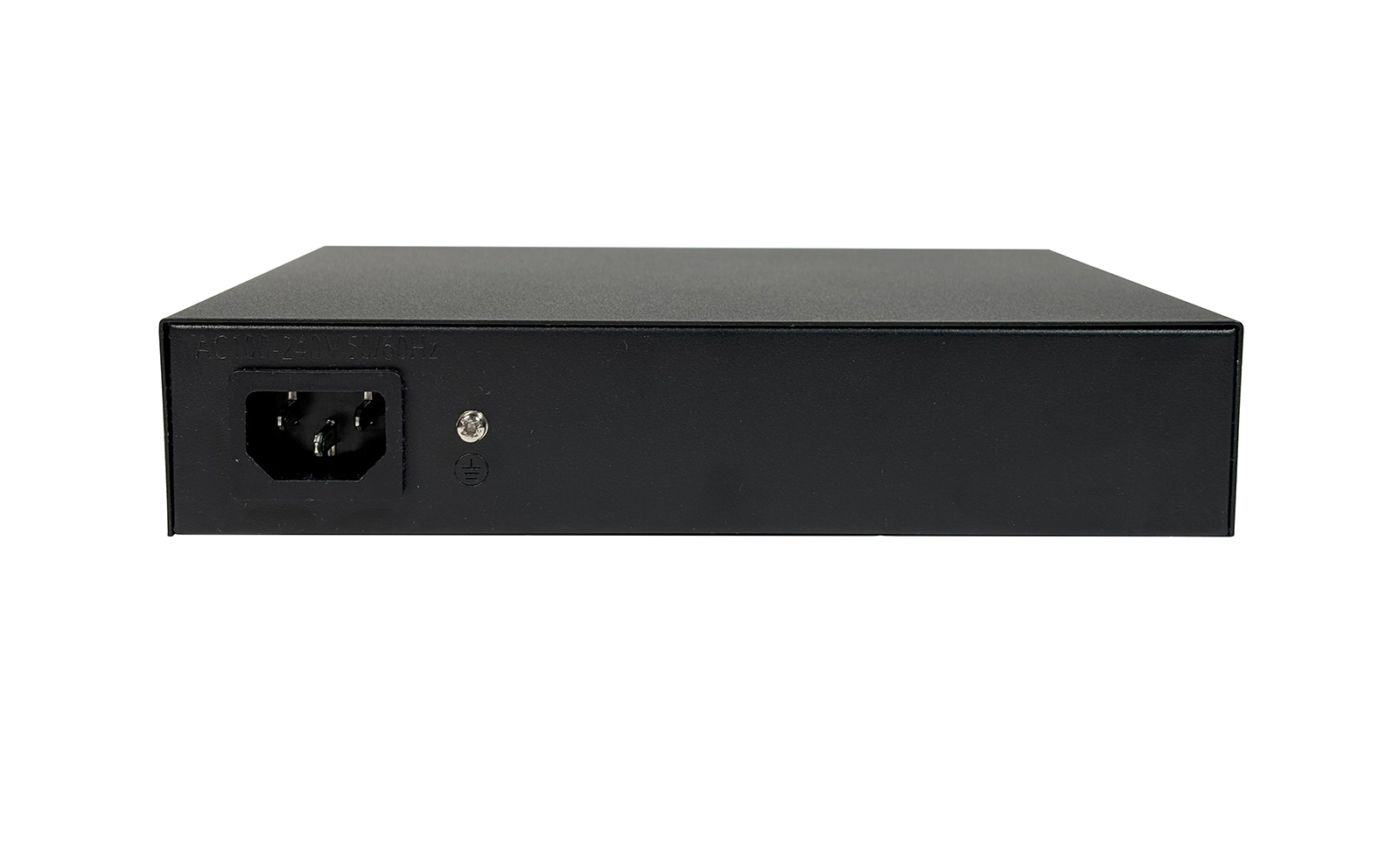

Power
|
• Power connector (AC)
|
|
Ventilation
|
• Fanless
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 160 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
MAC Address Table |
• 16K entries |
Routing Table Size |
• 32(IPv4)/(IPv6) |
L3 Forwarding Table |
• 32(IPv4)/(IPv6) |
|
Packet Forwarding Rate
|
• 119.04 Mpps
|
|
Packet Buffer
|
• 1.5 MB
|
|
Jumbo Frame
|
• 12 KB
|
|
Software
|
|
|
L2 Features
|
• 802.3x Flow Control
• Port Mirroring
- Many-to-One
• Link Aggregation
- Static
- 802.3ad
- Up to 8 groups per device / up to 8 ports per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (16 instances)
- BPDU Filtering
- BPDU Guard (Restriction)
• ERPS
• LLDP
• LLDP-MED
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Management VLAN
• Voice VLAN
• Surveillance VLAN
• GVRP
- Supports up to 4K groups
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- IGMP v2/v3 Querier
- Supports up to 256 groups
• MLD Snooping
- MLD v1/v2
- Supports up to 256 groups
• MVR
- IPv4
|
|
L3 Features
|
• Maximum number of IP interfaces: 4K
• 512 ARP entries
• Static routing for IPv4/IPv6
- 32 IPv4 routes
- no IPv6 support
• IPv6 Neighbor Discovery (ND)
• ARP entries
|
|
QoS
|
• 802.1p
• 8 queues per port
• CoS based on:
- switch port
- 802.1p priority
- IP TOS Precedence
- IP DSCP
• Queue Handling
- Weighted Round Robin (WRR)
- Weighted Fair Queuing (WFQ)
- Strict Priority (SP)
- WRR+SP или WFQ+SP
• Bandwidth control
- Port-based (Ingress/Egress)
|
|
Security
|
• Port Security
- Up to 256 MAC addresses per port
• Port Isolation
• IP Source Guard
• IP-MAC-Port Binding (IMPB)
• Broadcast / multicast / unicast storm protection
• Dynamic ARP Inspection
• IPv6 Duplicate Address Detection (DAD)
• SSL
- SSLv2/SSLv3
- TLSv1
• ARP Spoofing Prevention
- Max. 512 entries
• DHCP Snooping
• CPU Protection
• Blackhole MAC address entries
|
|
AAA
|
• 802.1X Authentication:
- Port-based
- MAC-based
- RADIUS and local server
|
|
• Web Access Control (WAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
• Guest VLAN
• RADIUS and TACACS+ Authentication
• MAC-based Access Control (MAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
|
|
|
Access Control List (ACL)
|
• Up to 512 ACL entries
• L2/L3/L4 ACL
• ACL based on:
- MAC Address
- IPv4 Address
- IPv6 Address
• Up to 1024 ACL entries
• Management ACL
|
|
OAM
|
• Cable diagnostics
• ULDP (Unidirectional Link Detection Protocol)
|
|
Management
|
• Web-based GUI
- HTTPS
• CLI
• Telnet
• RMON: 1, 2, 3, 9 groups
• SNMP v1/v2c/v3
• ICMPv6
• SSH v1/v2
• TFTP
• System Log
• SNTP
• Multi-level security system (manager/operator)
• Password Recovery
• Backup/Firmware Upgrade
• Ping
• Traceroute
• Port Description
• Configuration Backup/Upload
• Multiple Configurations
• Download/Upload
- TFTP (RFC783)
- HTTP
- UART
• CPU Monitoring
• LLDP, LLDP-MED
• DHCPv6
• DHCP Client
• DHCP Option 82
• DNS Client
|
|
MIB Standards
|
• RFC1213 MIBII
• RFC2819 RMON: 1, 2, 3, 9 groups
• RFC1215 Generic Traps
• RFC1493 Bridge MIB
• RFC2674 Bridge MIB Extensions
• RFC 2737 Entity MIB
• RFC3635 Ethernet-Like MIB
• RFC2863 Interface Group
• SNMP-Community-MIB
• SNMPv3-MIB
|
|
Physical Parameters
|
|
|
Dimensions
(L x W x H) |
• 195 x 165 x 40 mm
|
|
Operating Conditions
|
|
|
Power
|
• 100-240V AC, 50/60 Hz
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
|
|

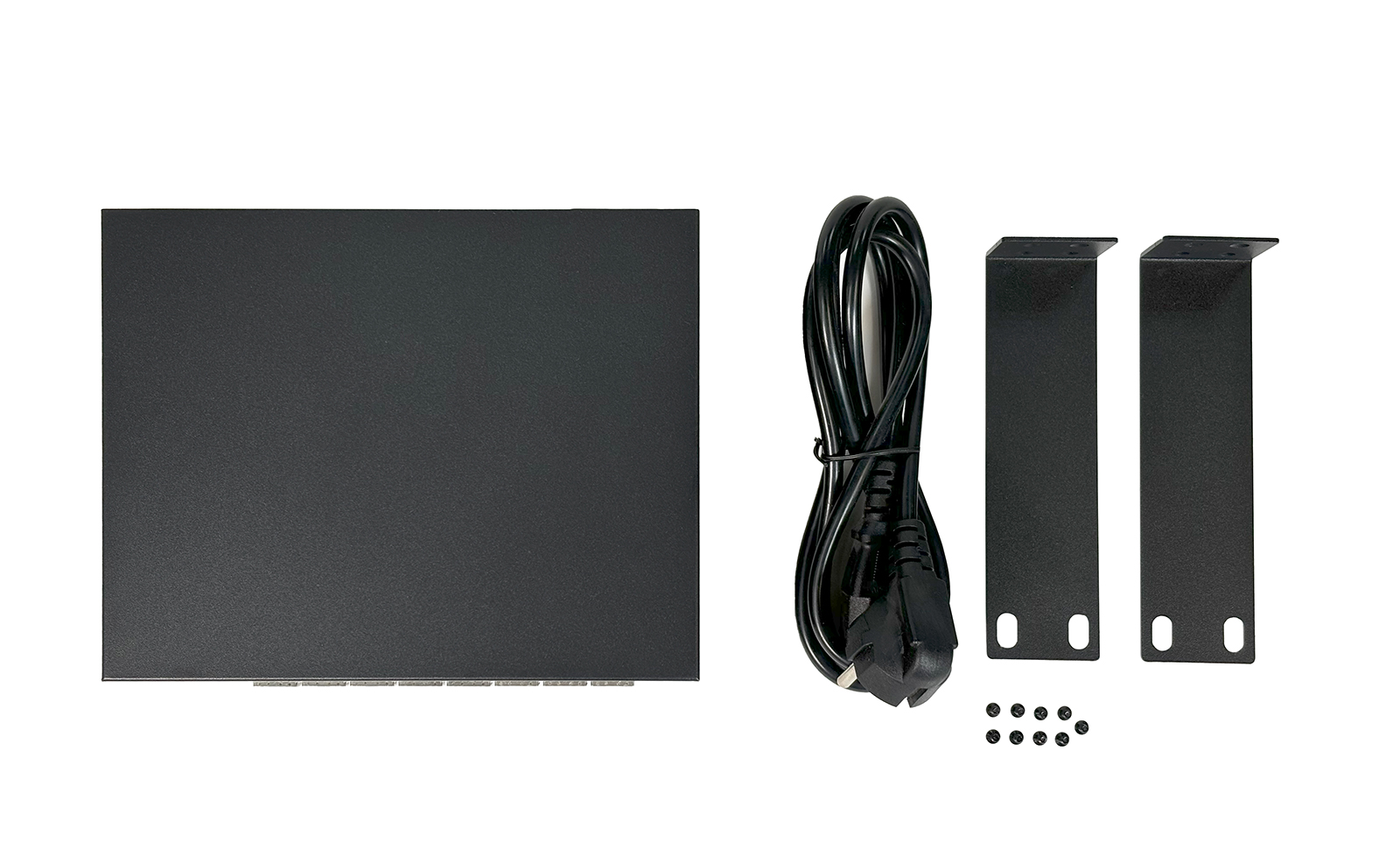

Package Contents
|
|
|
Package Contents
|
• OS6208F Switch
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
|
