OS1218P/190W
Configurable PoE Switch
16x100Base-TX PoE+, 2x1000Base-T,
190W PoE Budget, DIP Switch
- 16x10/100Base-TX 802.3af/at PoE ports
- 2x10/100/1000Base-T (RJ-45) uplink ports
- Total PoE power budget: 190 W
- Extend PoE to increase power supply and data transmission up to 250 m
- VLAN Isolation to isolate PoE ports traffic
- Mode configuration via DIP switch
- 19'' rack mounting
Description

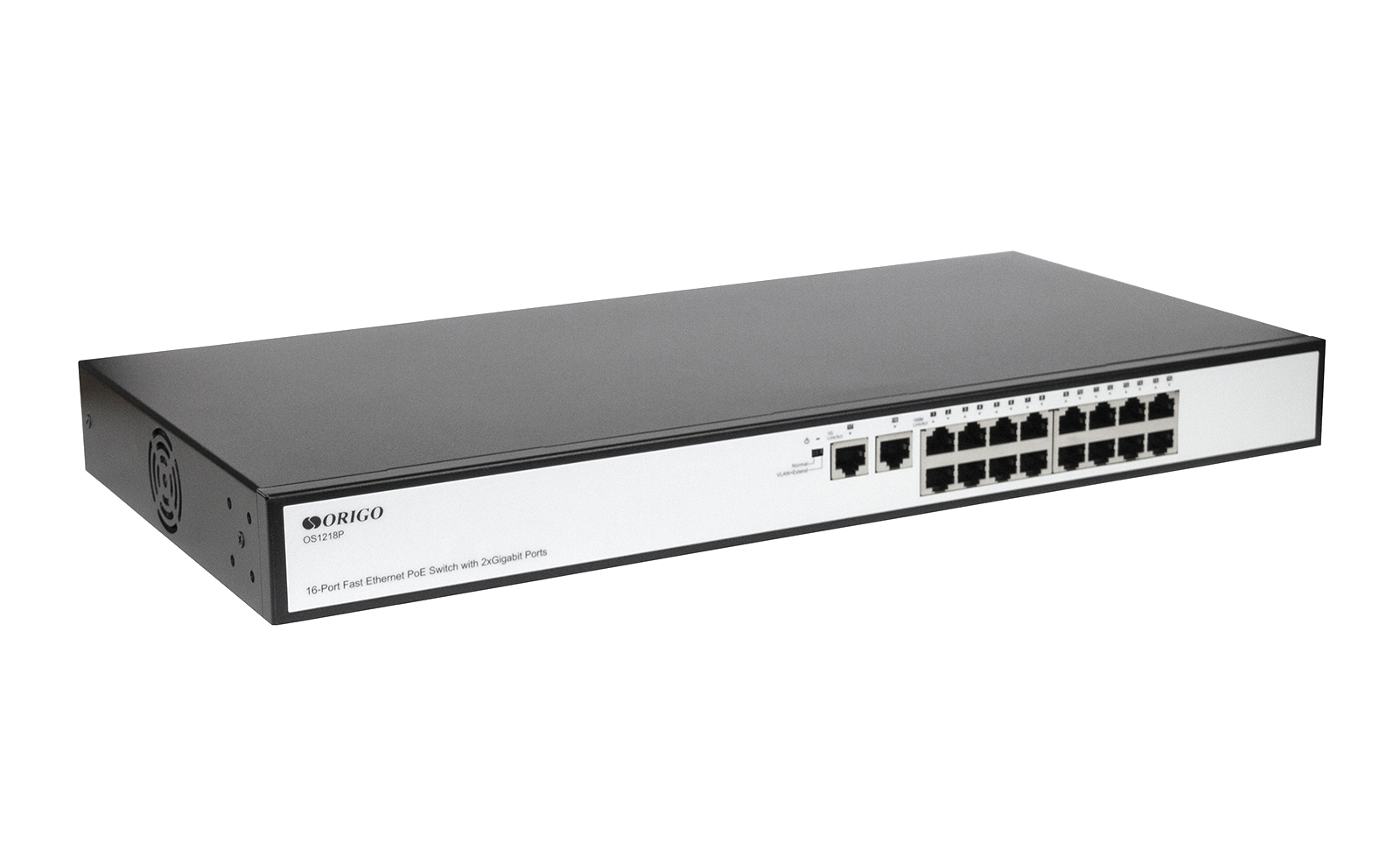

The OS1218P/190W is a configurable switch with 16x10/100Base-TX PoE+ ports, 2x10/100/1000Base-T uplink ports and a DIP Switch.
The ORIGO OS1218P/190W switch is recommended for organization of remote power supply to surveillance cameras, wireless access points, IP phones and other PoE devices.
The ports 1-16 support 802.3af/at PoE standards, providing up to 30 W for each port and a total PoE budget of 190 W.
The switch supports operation in Standard Mode and VLAN+Extend PoE Mode. Operating modes are hardware-configurable via DIP switch.
VLAN+Extend PoE Mode allows to increase power supply and data transmission up to 250 m and to isolate traffic on PoE ports with the help of VLAN Isolation.
The OS1218P/190W switch is housed in a metal casing with the possibility of 19'' rack mounting. Mounting kit is included in the package.
Specification
|
Hardware
|
|
|
Chipset
|
• MT7530BU
|
|
Interfaces
|
• 16x10/100Base-TX (RJ-45) PoE ports
• 2x10/100/1000Base-T (RJ-45) ports
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3af PoE
• IEEE 802.3at PoE
• IEEE 802.3x (Flow Control)
• Auto-negotiation of speed and duplex mode
• Auto MDI/MDIX
|
|
DIP Switches
|
• Standard Mode (Normal)
- PoE up to 100 m
- Data transmission rate – 10/100 Mbps
• VLAN + Extend Mode
- PoE ports isolation
- PoE up to 250 m
- Data transmission rate – 10 Mbps
|
|
LEDs
|
• Power
- On – power on state
- Off – power off state
• Link (ports 1-18)
- Always bright – device is connected
- Flicker – data pass
- Off – no connection
|
|

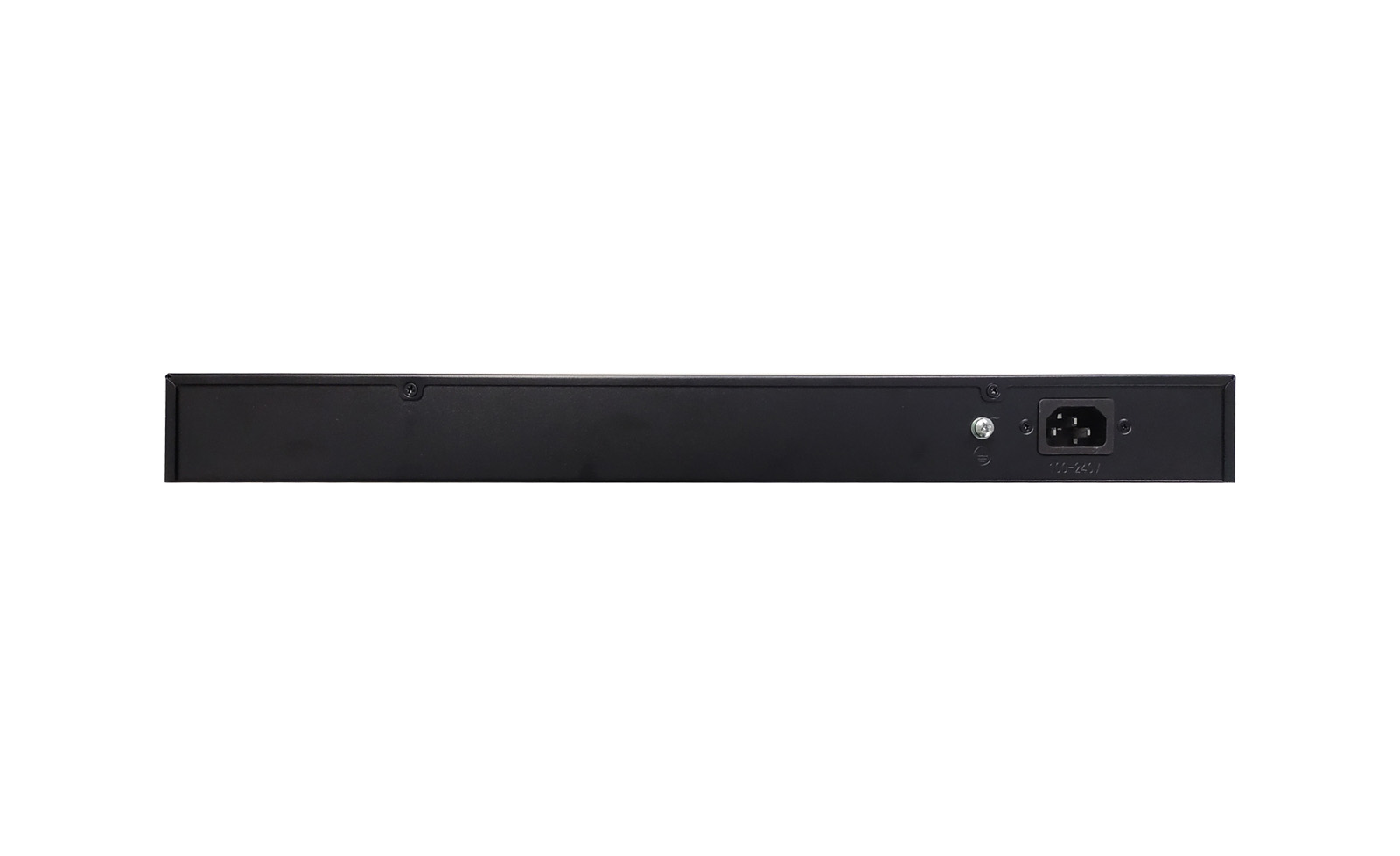

Power
|
• Power input (AC)
|
|
Ventilation
|
• 1 fan
|
|

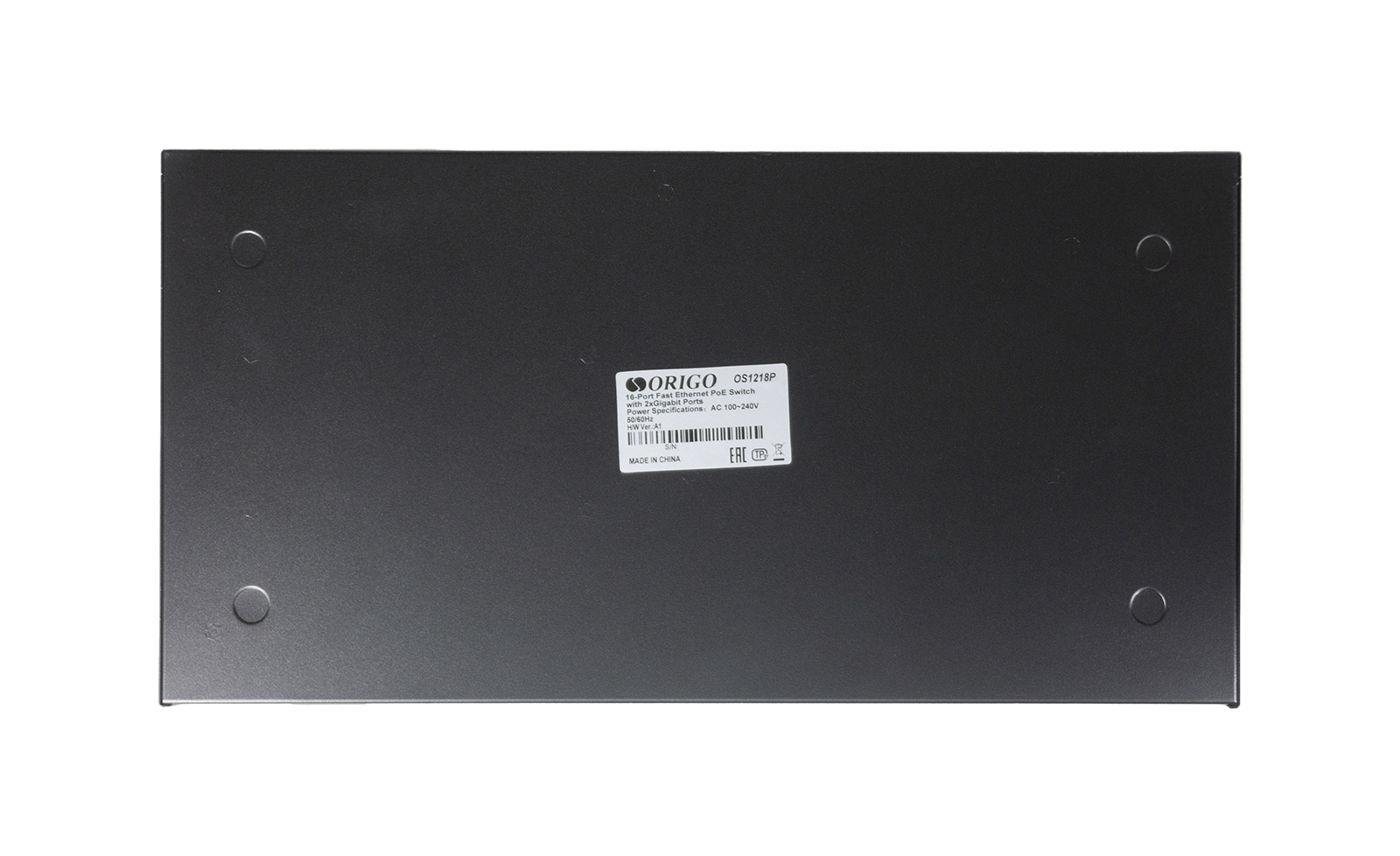

Case
|
• Metal
|
|
Mounting
|
• Desktop
• 19'' rack
|
|
Capacity
|
|
|
Switching Capacity
|
• 7.2 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 8K entries
|
|
PoE
|
|
|
PoE Standard
|
• IEEE 802.3af
• IEEE 802.3at
|
|
PoE Ports
|
• 1 – 16
|
|
Max. Power Consumption per Port
|
• 30 W
|
PoE Power Budget |
• 190 W |
PoE Mode |
• Type A |
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 440 x 220 x 45 mm
|
|
Weight
|
• 2.32 kg
|
|
Package Size
|
• 47.4 x 29.2 x 9.7 cm
|
|
Gross Weight
|
• 2.97 kg
|
|
Operating Conditions
|
|
|
Power
|
• 100-240 V AC, 50/60 Hz
|
|
Temperature
|
• Operating: 0 to 45 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|
Package Contents
|
|
|
Package Contents
|

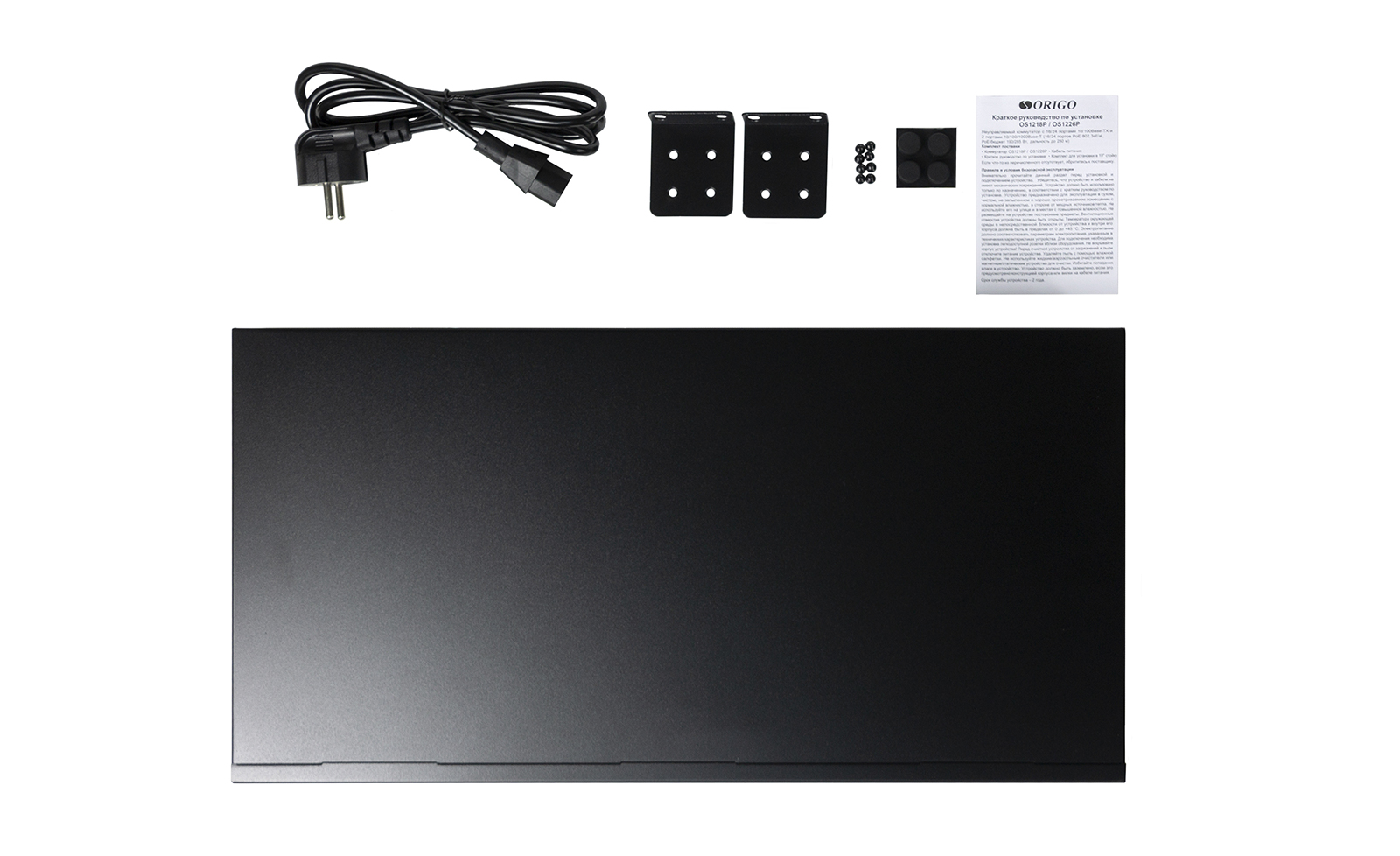

• OS1218P/190W Switch
• Power Cord
• 19'' Rack Mounting Kit
• Quick Installation Guide
|
