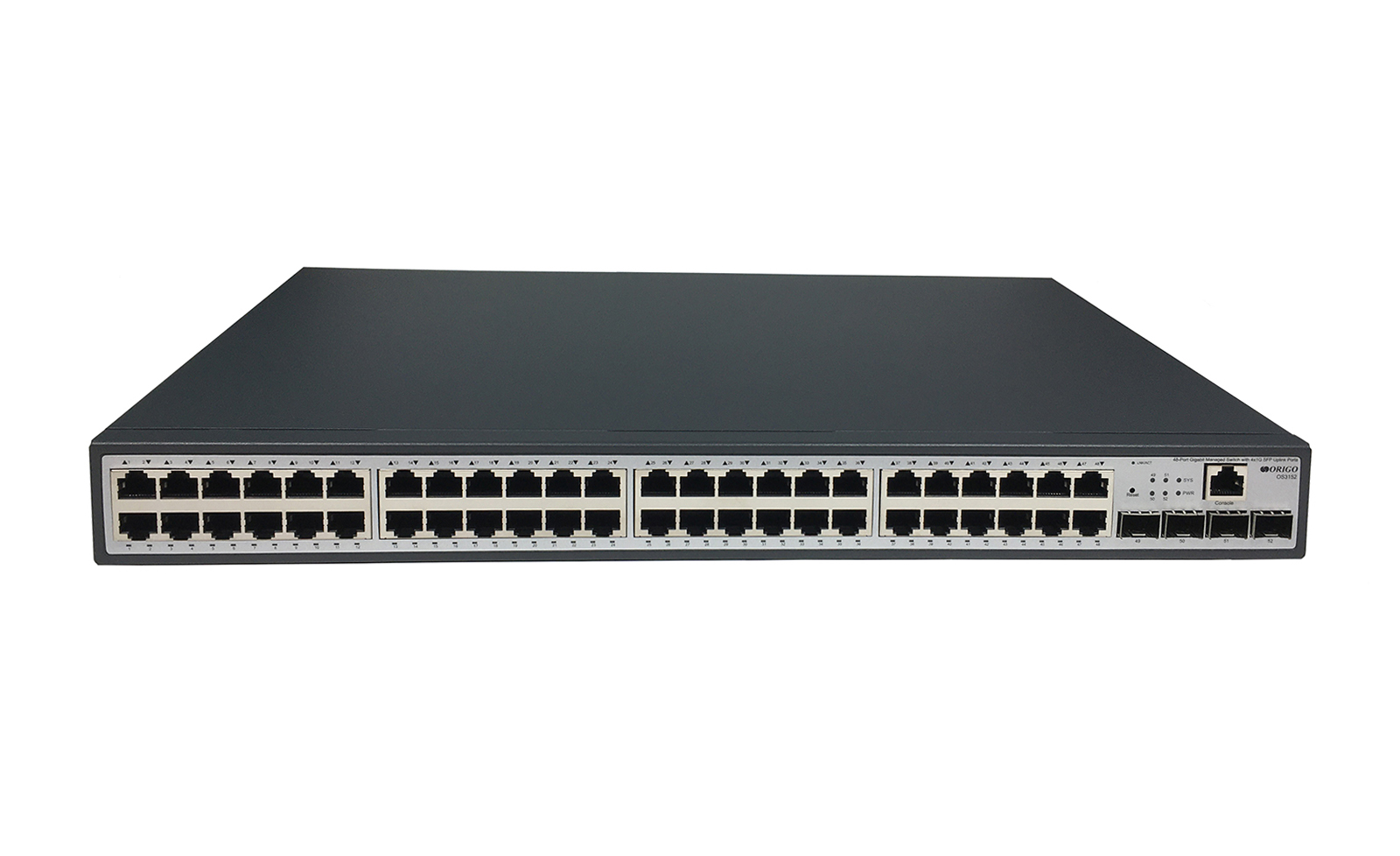

OS3152
Managed L2 Switch
48x1000Base-T, 4x100/1000Base-Х SFP
- 48x10/100/1000Base-T ports
- 4x100/1000Base-Х SFP ports
- 16K MAC Address
- IPv4/IPv6 static routing
- 802.1X authentication, ACL, Port Security
- 802.1Q VLAN, Selective Q-in-Q, Multicast VLAN
- ERPS, STP/MSTP/RSTP, Loopback Detection for enhanced network reliability
- Advanced QoS features for traffic prioritization
- IGMP/MLD Snooping to work with multicast traffic
- Management via Web, Console, Telnet, SSH, SNMP
Description
The ORIGO OS3152 is a high-performance L2 managed switch with 48 x 10/100/1000Base-T ports and 4 x 100/1000Base-Х SFP ports.
The ORIGO OS3152 is recommended for building of the medium and large-sized enterprises' networks that need a modern gigabit solution with high port density and advanced functions that provide security, fault-tolerance, quality of service and network segmentation.
The OS3152 supports a static routing, advanced security functions and VLAN, including Port Security, ACL, 802.1X authentication, Guest VLAN, 802.1Q VLAN and Double VLAN (Q-in-Q).
To increase network performance and resiliency, the OS3152 supports Link Aggregation Control Protocol (LACP), the redundant connections by means of STP/RSTP/MSTP, LoopBack Detection and ERPS, providing fast network recovery if one of the ring links fails. The support of OAM functionality facilitates monitoring and troubleshooting on Ethernet.
The OS3152 is managed through Command Line Interface (CLI), SNMP and Web-based interface.
Specification
|
Hardware Specifications
|
|
|
CPU and Memory
|
• CPU: RTL8393M
• RAM: 128 MB
• Flash: 32 MB
|
|

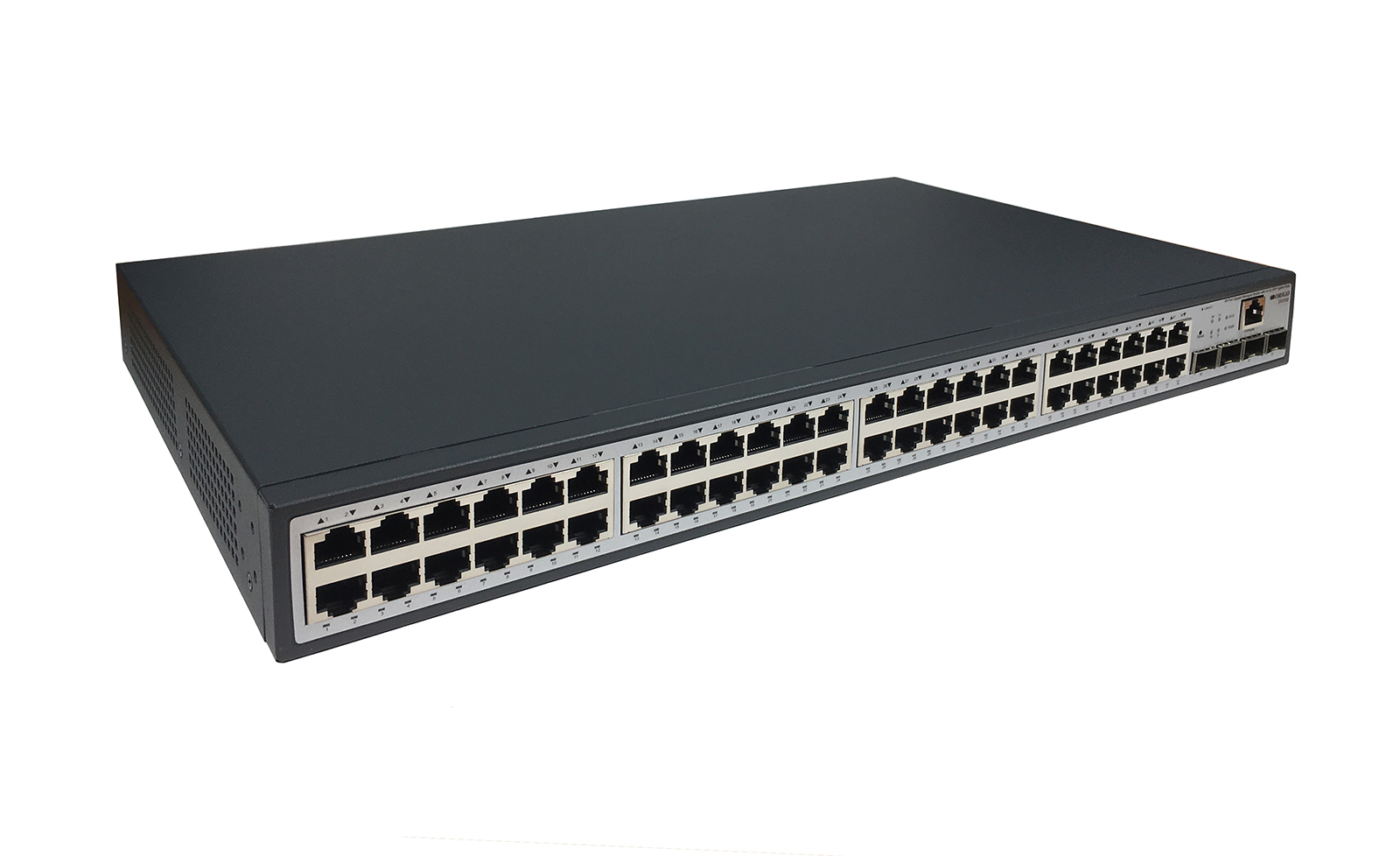

Interfaces
|
• 48 x 10/100/1000Base-T
• 4 x 100/1000Base-Х SFP
• 1 Console RJ-45 port
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3u 100Base-FX
• IEEE 802.3z 1000Base-X
• IEEE 802.3x Flow Control
• Auto-negotiation
• Auto MDI/MDIX
|
|
LEDs
|
• PWR
- On – power on state
- Off – power off state
• Link/Act (Ports 1 – 52)
- Always bright – terminal device is connected
- Blinking – data pass
- Off – no connection
• SYS
- Blinking – the switch is working correctly
- Off – the switch is booting up or a failure has occurred
|
|
Buttons
|
• Reset
|
|

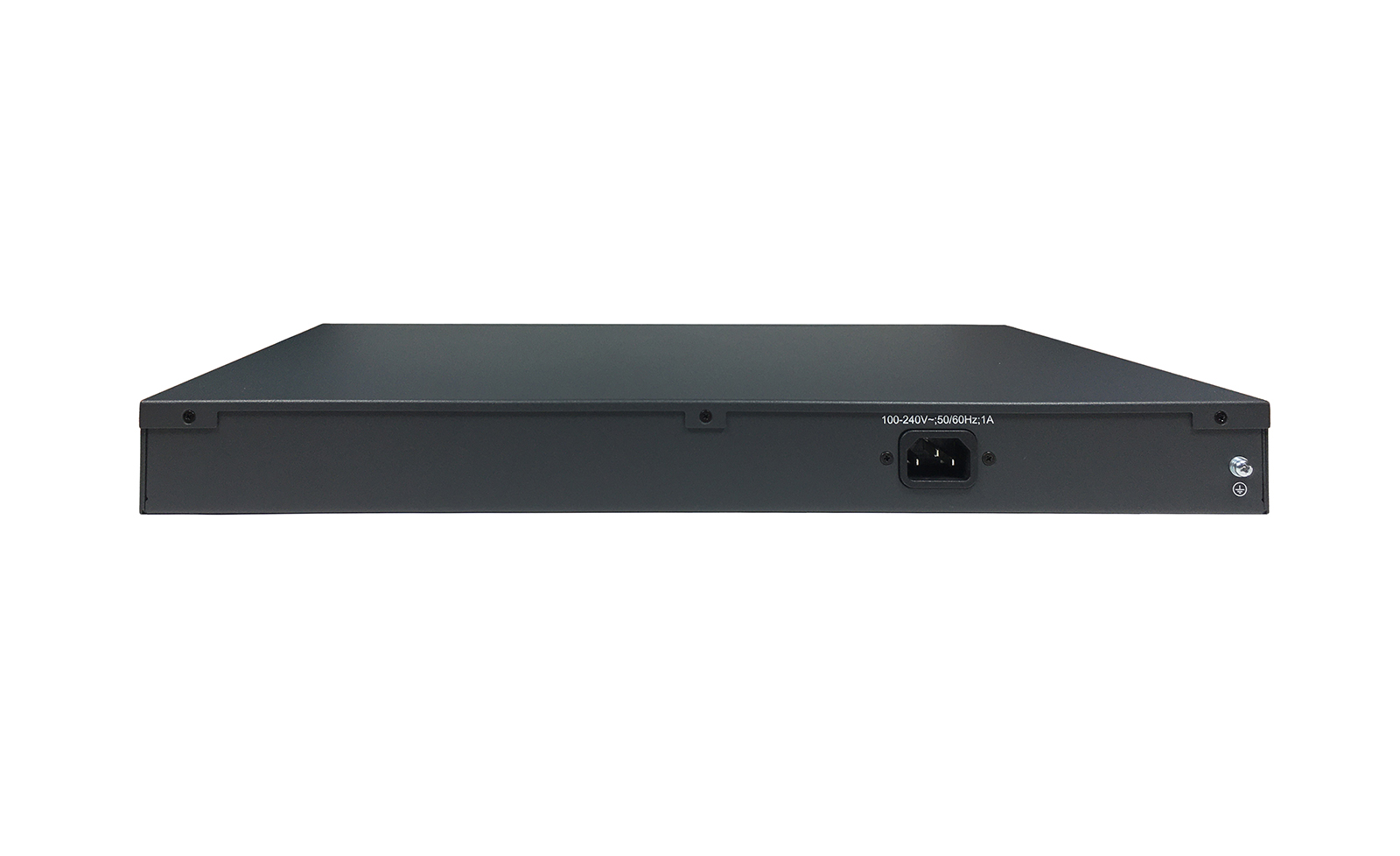

Power
|
• Power connector (AC)
|
|
Ventilation
|
• Fanless
|
|
Case
|
• Metal
|
|
Mounting
|
• Desktop
• 19" rackmount
|
|
Performance
|
|
|
Switching Capacity
|
• 104 Gbps
|
|
Transfer Mode
|
• Store-and-forward
|
|
MAC Address Table
|
• 16K entries
|
|
Packet Forwarding Rate
|
• 77.38 Mpps
|
|
Packet Buffer
|
• 1.5 MB
|
|
Routing Table
|
• 512 entries (IPv4/IPv6)
|
|
L3 Forwarding Table
|
• 512 entries (IPv4/IPv6)
|
|
Jumbo Frame
|
• 12 KB
|
|
Software
|
|
|
L2 Features
|
• Flow Control
• Link Aggregation
- Static
- 802.3ad
- Up to 8 groups per device / up to 8 ports per group
• Load Balance
- src-mac
- dst-mac
- src-ip
- dst-ip
• Loopback Detection
• ERPS
• MRPP
• ULPP
• ULSM
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP (64 instances)
- Root Guard (Restriction)
- BPDU Guard (Restriction)
• LLDP and LLDP-MED
• Port Mirroring
- One-to-One
- Many-to-One
- Flow-based
- CPU-based
- Supports Mirroring for Tx/Rx/Both
- RSPAN
|
|
VLAN
|
• 802.1Q, 4094 VLAN
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN (802.1v)
• Subnet-based VLAN
• Private VLAN
• VLAN Filtering
• Voice VLAN
• GVRP
• GMRP
• Double VLAN (Q-in-Q)
- Selective Q-in-Q
- Port-based Q-in-Q
• VLAN Translation
• Multicast VLAN
|
|
L2 Multicast
|
• IGMP Snooping
- IGMP v1/v2/v3
- Up to 512 groups
- IGMP Snooping Fast Leave
- IGMP Proxy
• MLD Snooping
- MLD v1/v2
- Up to 512 groups
• Multicast Source/Destination (DCSCM)
|
|
L3 Features
|
• Up to 16 IP interfaces
• 8K ARP entries
• Static routing entries
- 512 for IPv4
- 512 for IPv6
• Gratuitous ARP
|
|
QoS
|
• 802.1p
• CoS based on:
- DSCP
- VLAN ID
- IP Precedence
- IP ACL/ MAC ACL/ IPv6 ACL
- IPv6 Flow label
• Queue Handling
- Strict Priority (SP)
- Weighted Round Robin (WRR)
- Weighted Deficit Round Robin (WDRR)
• Bandwidth control
• 8 egress queues
|
|
Security
|
• SSH v1/v2
• SSL
- TLS 1.0/1.1/1.2 support
- IPv4/IPv6 access support
• Port Security
- Up to 16К MAC address per port
• Port Isolation
• Storm Protection
• Dynamic ARP Inspection
• ARP Spoofing Attack Prevention
• ARP Scanning Prevention
• ARP Guard
• DoS Attack Prevention
• DHCP Snooping
• DHCPv6 Snooping
• IPv6 SAVI
• Security RA
• CPU Protection
|
|
AAA
|
• 802.1X Authentication:
- Port-based
- MAC-based
• Guest VLAN
• RADIUS server with IPv6 support
• RADIUS and TACACS+ Authentication
|
|
Access Control List (ACL)
|
• 2K ACL entries
• ACL based on:
- VLAN
- MAC Address
- IPv4 Address
- DSCP
- ToS
- TCP/UDP port number
- Packet content defined by user
• Time-based ACL
|
|
OAM
|
• Cable diagnostics
• ULDP (Unidirectional Link Detection Protocol)
• Dying Gasp
• 802.3ah Ethernet Link OAM
• 802.1ag Connectivity Fault Management (CFM)
• DDM (Digital Diagnostics Monitoring)
• Watchdog
|
|
Management
|
• Web-based GUI
• CLI
• Telnet
• SSH v1/v2
• FTP
• TFTP
• System Log
• SNMP v1/v2c/v3
• SNMP Traps
• SNTP
• NTP
• Firmware Backup/Upgrade
• Ping / Traceroute for IPv4/IPv6
• DHCP Server
• DHCPv6 Server
• BootP/DHCP Client
• DHCP Relay
• DHCPv6 Relay
• DHCP Option 82, 43, 60, 61, 67
• DNS Client for IPv4/IPv6
|
|
Physical Parameters
|
|
|
Dimensions
(L x W x H) |
• 440 x 260 x 44 mm
|
|
Package Dimensions
|
• 50.4 x 34.8 x 9 сm
|
|
Gross Weight
|
• 4.19 kg
|
|
Operating Conditions
|
|
|
Power Input
|
• 100-240V AC, 50/60 Hz
|
|
Max Power Consumption
|
• 43.6W
|
|
Heat dissipation
|
• 43.57W (148.76 BTU/h)
|
|
MTBF
|
• > 50 000 hours
|
|
Surge Protection
|
• Common mode ±2KV
• Differential mode ±1KV
|
|
Electrostatic Standard
|
• Contact ±6KV
• Air ±8KV
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -40 to 70 °C
|
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
|
|

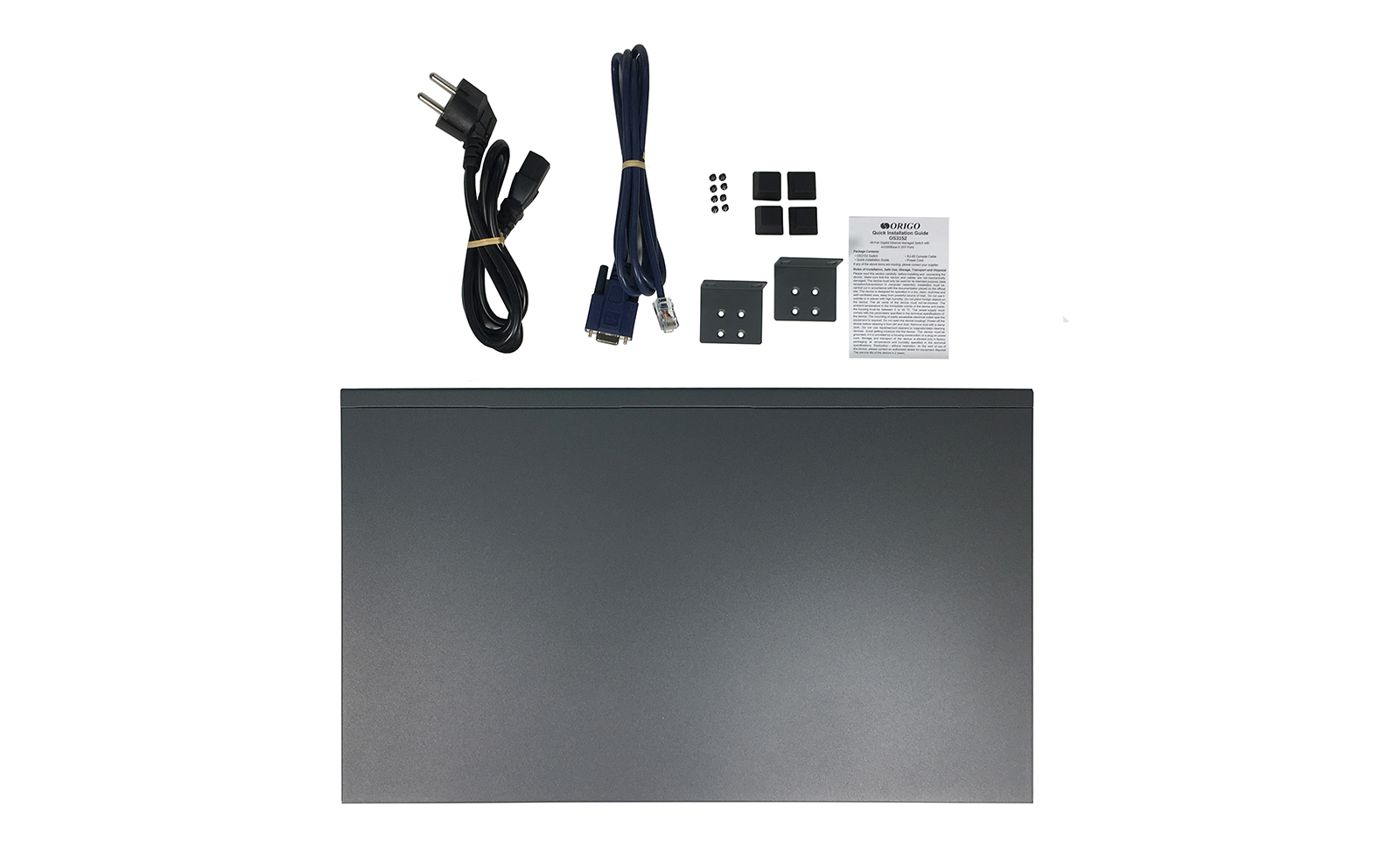

Package Contents
|
|
|
Package Contents
|
• OS3152 Switch
• Power cord
• RJ45 console cable
• 19'' rack mounting kit
• Quick Installation Guide
|
